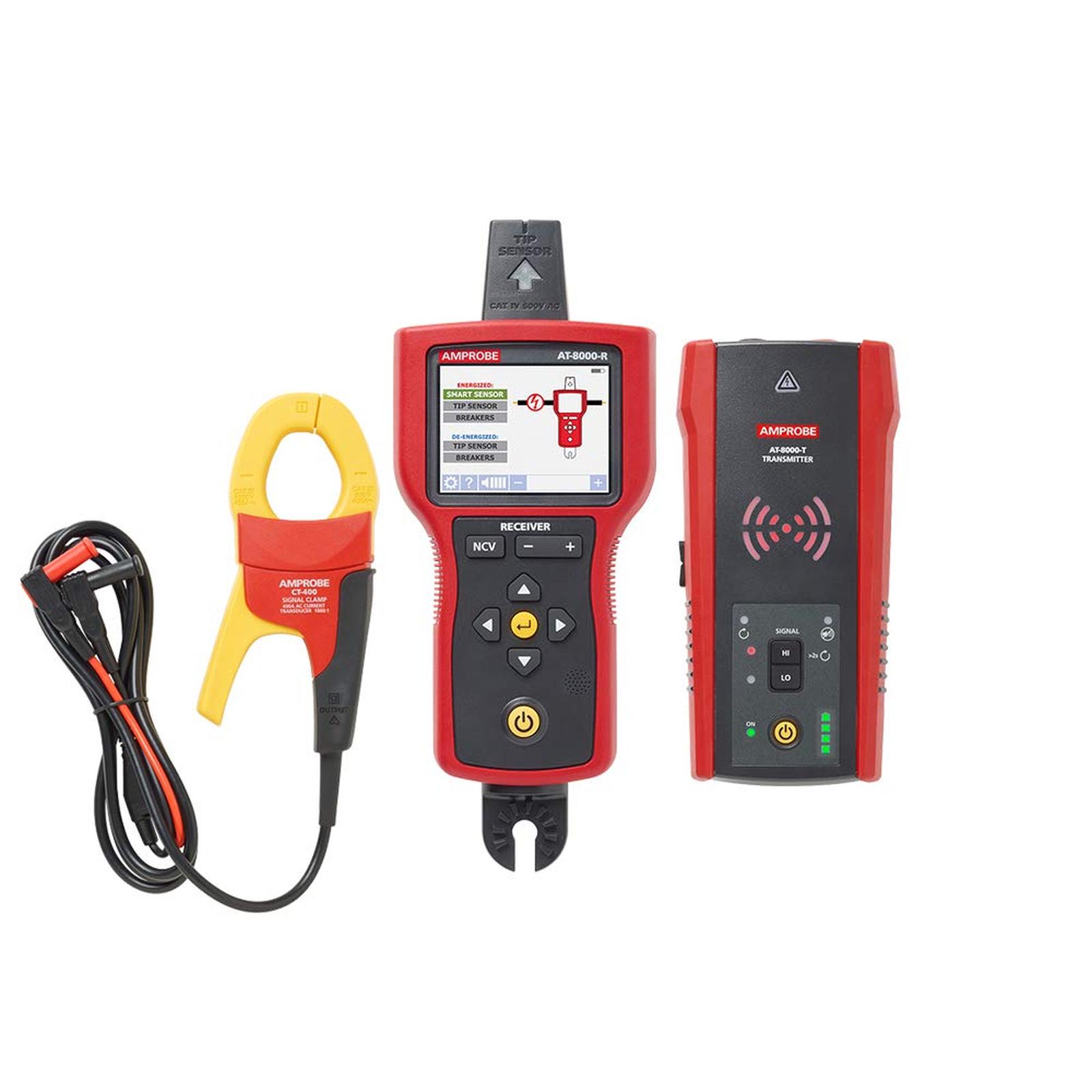

Amprobe AT-8030 Advanced Industrial Wire Tracer Kit adalah alat pelacak kabel industri profesional yang digunakan untuk menemukan jalur kabel listrik, breaker, fuse, short circuit, dan open circuit pada instalasi listrik industri maupun bangunan komersial. Alat ini dirancang untuk bekerja pada kabel aktif (energized) maupun tidak aktif (de-energized) hingga kategori keselamatan CAT IV 600V.
Perangkat ini menggunakan sistem transmitter dan receiver dengan teknologi Smart Sensor™ yang mampu menampilkan arah dan posisi kabel tersembunyi di balik dinding, lantai, maupun plafon melalui layar TFT LCD warna berukuran 3.5 inci. Teknologi ini membantu teknisi menemukan jalur kabel secara lebih cepat dan akurat tanpa perlu membongkar instalasi.
FITUR Amprobe AT-8030
- Melacak kabel aktif dan nonaktif
- CAT IV 600V safety rating
- Smart Sensor™ wire direction technology
- LCD TFT warna 3.5 inci
- Menemukan short dan open circuit

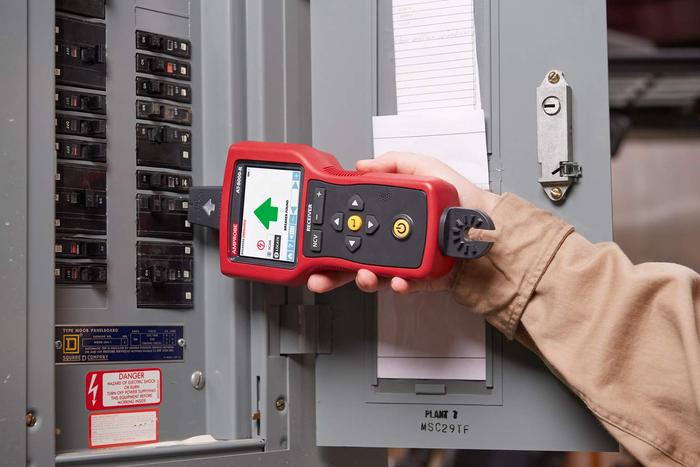

- Identifikasi breaker dan fuse
- Non-contact voltage detection
- Dua frekuensi tracing otomatis
- Tiga mode power: High, Low, dan Loop

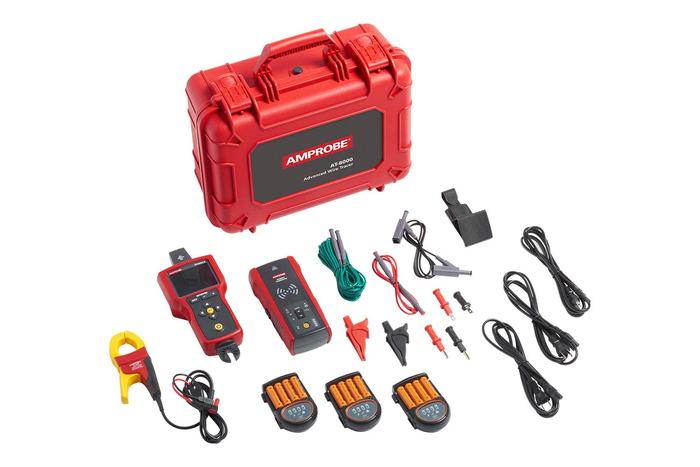

- CT-400 signal clamp included
- Cocok untuk industri dan maintenance listrik
SPESIFIKASI Amprobe AT-8030
Specifications
| Features | AT-8000-R Receiver | AT-8000-T Transmitter | CT-400 Signal Clamp |
| Display size | LCD 3.5 in (89 mm) | LEDs | N/A |
| Display dimensions (W x H) | 2.76 x 2.07 in (70 x 52 mm) | N/A | N/A |
| Display Resolution | 320 x 240 | N/A | N/A |
| Display type | Color TFT LCD | LEDs | N/A |
| Display color | Yes | Operating mode LEDs: red Battery status LEDs: green, yellow, red | N/A |
| Booting time | 30 sec | < 2 sec | N/A |
| Backlight | Yes | N/A | N/A |
| Operating temperature | -4 °F to 122 °F (-17.77 °C to 49 °C) | -4 °F to 122 °F (-20 °C to 50 °C) | 32 °F to 122 °F (0 °C to 50 °C) |
| Operating humidity | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) | 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C) |
| Storage temperature and humidity | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH | -4 °F to 140 °F (-20 °C to 60 °C), <95% RH |
| Operating altitude | 0 to 6561 ft (2000 m) | ||
| Transient protection | N/A | 8.00 kV (1.2/50μS surge) | N/A |
| Pollution degree | 2 | ||
| IP rating | IP 52 | IP 40 | |
| Drop test | 3.28 ft (1 m) | ||
| Power supply | 4 x AA (alkaline) | 8 x AA (alkaline) | N/A |
| Power consumption (typical) | 4xAA battery: 2W | Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA | N/A |
| Battery life | Approx. 9 h | Hi mode: approx. 25 h Loop mode: approx. 18 h | N/A |
| Low battery indication | Yes | N/A | |
| Fuse | N/A | 1.6 A, 700 V, fast-acting, Ø 6x32mm | N/A |
| Maximum conductor size | N/A | N/A | 1.26 in (32 mm) |
| Dimensions (L x W x H) | Approx. 10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.5 cm) | Approx. 7.2 x 3.66 x 1.97 in (18.3 x 9.3 x 5 cm) | Approx. 5.9 x 2.75 x 1.18 in (15 x 7 x 3 cm) |
| Weight | Approx. 1.20 lb (0.544 kg) | Approx. 1.25 lb (0.57 kg) | Approx. 0.25 lb (0.114 kg) |
