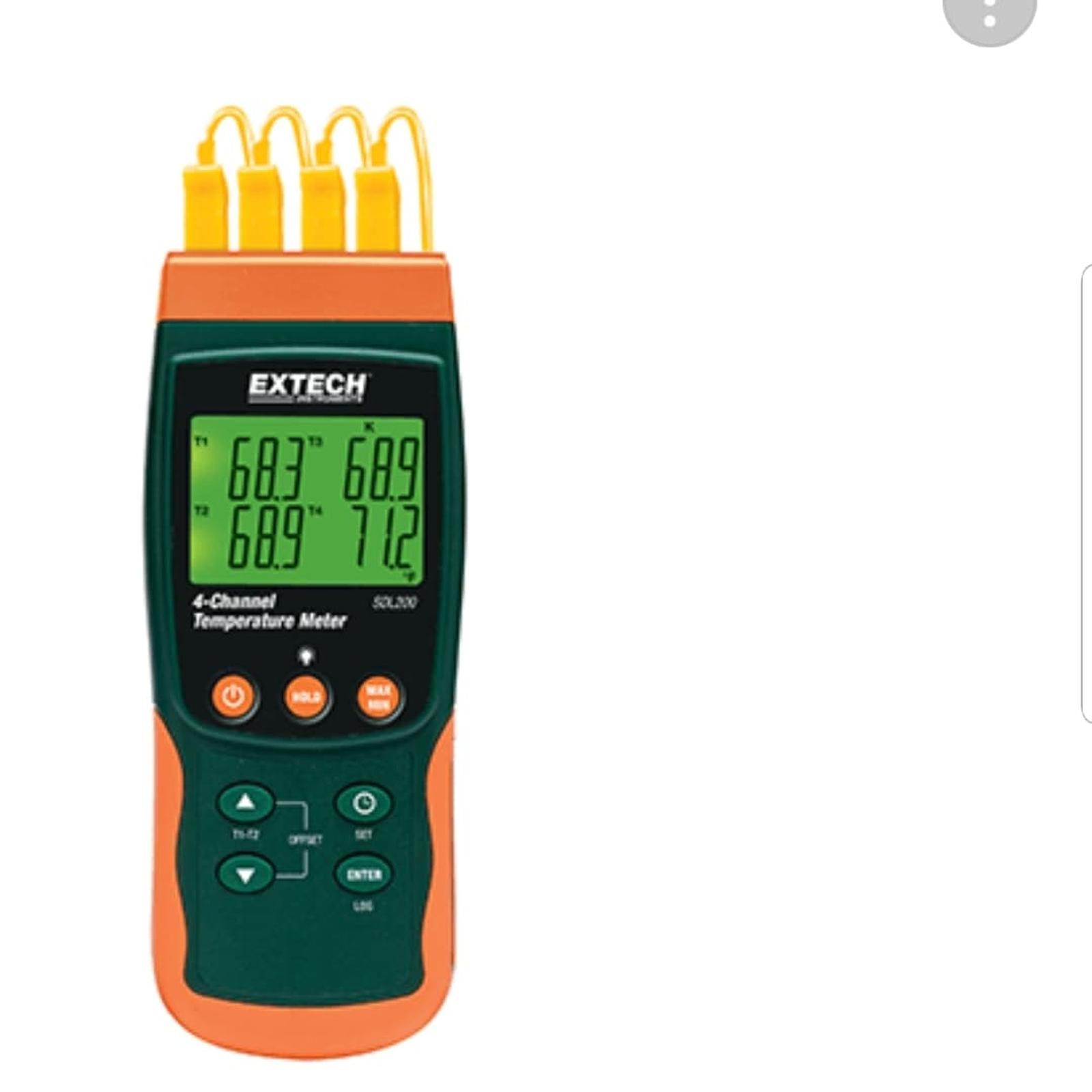

EXTECH SDL200 adalah thermometer digital data logger 4-channel profesional yang digunakan untuk mengukur dan merekam suhu dari beberapa titik secara bersamaan menggunakan sensor thermocouple (J, K, E, T, R, S) maupun RTD Pt100. Alat ini dirancang untuk kebutuhan industri, laboratorium, HVAC, dan proses produksi yang membutuhkan pemantauan suhu multi titik secara akurat dan terus-menerus.
Perangkat ini mampu melakukan perekaman data otomatis ke SD card dalam format Excel (CSV), sehingga hasil pengukuran dapat langsung dipindahkan ke komputer untuk dianalisis tanpa software khusus tambahan.
FITUR EXTECH SDL200
| General | |
|---|---|
| Memory | 20M data records using a 2G SD card |
| Temperature (RTD) Basic Accuracy | -327 to 1562 °F (-200 to 850 °C) |
| Temperature (RTD) Max Resolution | ±0.4% of reading (+1.8°F/+1°C) |
| Temperature (Type C) | 0.1°/1° |
| Temperature (Type E) Basic Accuracy | -58 to 1652°F (-50 to 900°C) |
| Temperature (Type E) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type J) | 0.1°/1° |
| Temperature (Type J) Basic Accuracy | -148 to 2102°F (-100 to 1150°C) |
| Temperature (Type J) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type K) Basic Accuracy | 0.1°/1° |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type N) Basic Accuracy | 0.1°/1° |
| Temperature (Type R) Max Resolution | 32 to 3092°F (0 to 1700°C) |
| Temperature (Type S) | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type S) Basic Accuracy | 0.1°/1° |
| Temperature (Type S) Max Resolution | 32 to 2732°F (0 to 1500°C) |
| Temperature (Type T) | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type T) Basic Accuracy | 0.1°/1° |
| Temperature (Type T) Max Resolution | -58 to 752°F (-50 to 400°C) |
| Temperature [IR] | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature [Type K] | 0.1°/1° |
