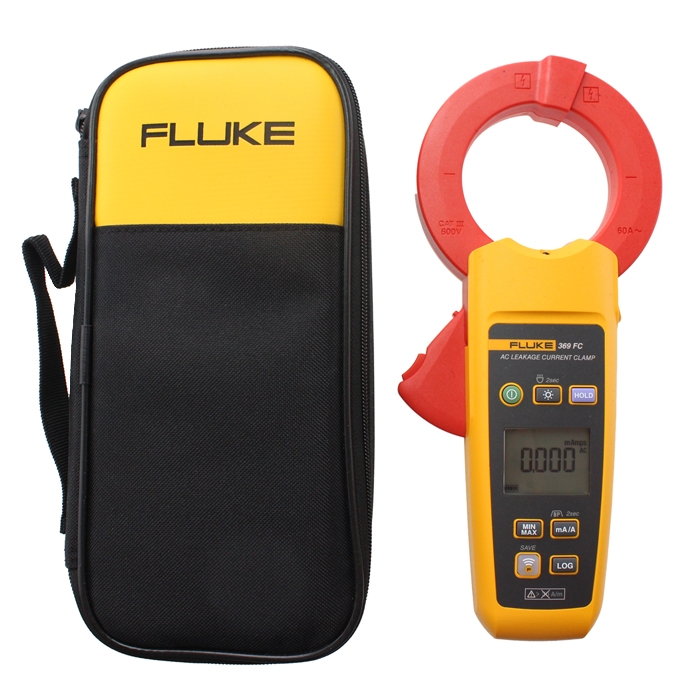

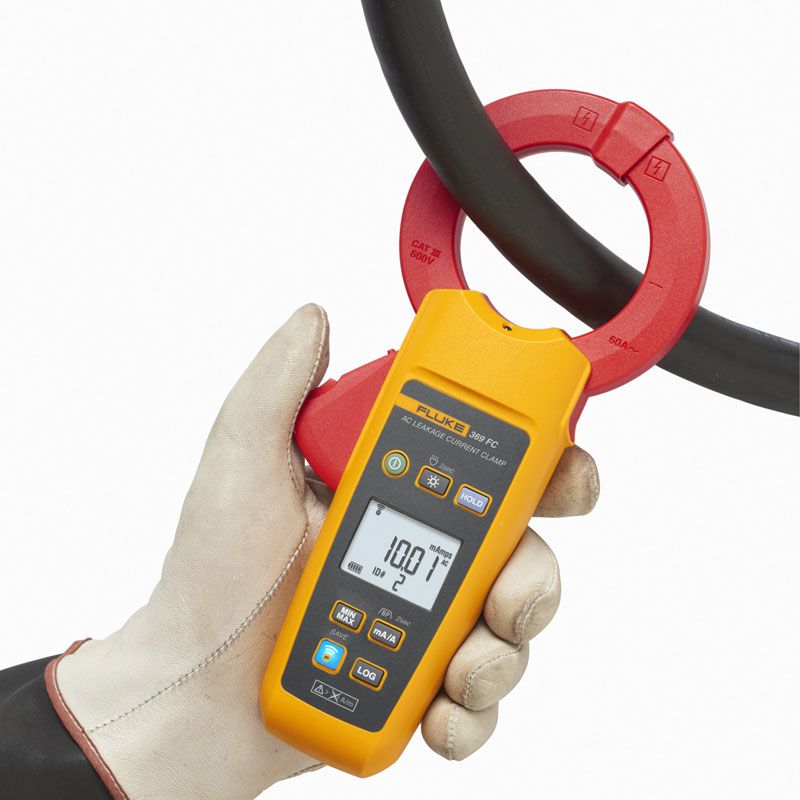

Fluke 369 FC memiliki rahang berukuran 61 mm yang sangat besar untuk bekerja dengan konduktor ekstra besar. Rahang penjepit terlindung sepenuhnya untuk secara akurat menangkap sinyal kebocoran yang sangat kecil, dan untuk meminimalkan interferensi elektromagnetik eksternal.
FITUR Fluke 369
- Pengukuran true-rms untuk akurasi saat mengukur bentuk gelombang non-sinusoidal yang kompleks
- Pembukaan rahang 61 mm
- Resolusi tertinggi 1 μA, berukuran hingga 60 A
- Fungsi filter yang dapat dipilih menghilangkan kebisingan yang tidak diinginkan
- Pembacaan Maks/Min/Rata-rata dan fungsi tahan
- Lampu kerja LED menghadap ke depan untuk digunakan di lemari kabel gelap
- Tampilan dengan lampu latar; lampu latar otomatis mati dan mati otomatis untuk
- memperpanjang masa pakai baterai
- Peringkat keamanan CAT III 600V
SPESIFIKASI Fluke 369
| Electrical Specifications | ||
| Measurement function | Alternating current | |
| AC ampere range | 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A | |
| Range selection | mA / A: manual selection 3 mA / 30 mA / 300 mA: automatic selection 3 A / 30 A / 60 A: automatic selection | |
| Range / Resolution | 3 mA¹ / 0.001 mA | |
| 30 mA / 0.01 mA | ||
| 300 mA / 0.1 mA | ||
| 3 A / 0.001 A | ||
| 30 A / 0.01 A | ||
| 60 A / 0.1 A | ||
| Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)² | 3 mA – 30 A 60 A | 1% + 5 digits 2% + 5 digits |
| Frequency | 40 Hz to 1 kHz | |
| Crest Factor | 3 | |
| After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%. ¹The minimum value is 10 μA rms. ²Outside of the TC / °C 18 °C to 28 °C, 0.02 + 1 | ||
| Physical | ||
| Display (LCD) | Digital readout: 3300 count | |
| Display refresh rate | 4 times / sec | |
| Maximum conductor diameter | 61 mm | |
| Dimensions | 257 x 116 x 46 mm | |
| Weight | 600 g | |
| Battery | 2 AA, IEC LR6, NEDA 15A, alkaline | |
| Battery life | Expected battery life, without using backlight and spotlight, is more than 150 hours | |
| Automatic shut-down | Meter automatically shuts down after 15 minutes of inactivity | |
| Safety and Environmental Specifications | ||
| General safety | IEC 61010-1: Pollution Degree 2 | |
| Measurement safety | IEC 61010-2-032: CAT III 600 V / CAT IV 300 V | |
| Operating temperature | -10 °C to +50 °C | |
| Storage temperature | -40 °C to +60 °C | |
| Operating humidity | Non-condensing (<10 °C) | |
| 90% relative humidity (10 °C to 30 °C) | ||
| 75% relative humidity (30 °C to 40 °C) | ||
| 45% relative humidity (40 °C to 50 °C) | ||
| Protection class | IEC 60529: IP30 (jaw closed) | |
| Operating altitude | 2000 m | |
| Storage altitude | 12000 m | |
| Current sensor action category | IEC 61557-13: Class 2, ≤30 A / m | |
| Electromagnetic compatibility (EMC) | ||
| International | ||
| IEC 61326-1 | Industrial Electromagnetic Environment | |
| CISPR 11 | Group 1 Class B | |
| Group 1 | Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device’s own internal functions is essential. | |
| Class B | Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements. Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) | |
| Class A | This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment. USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | |
