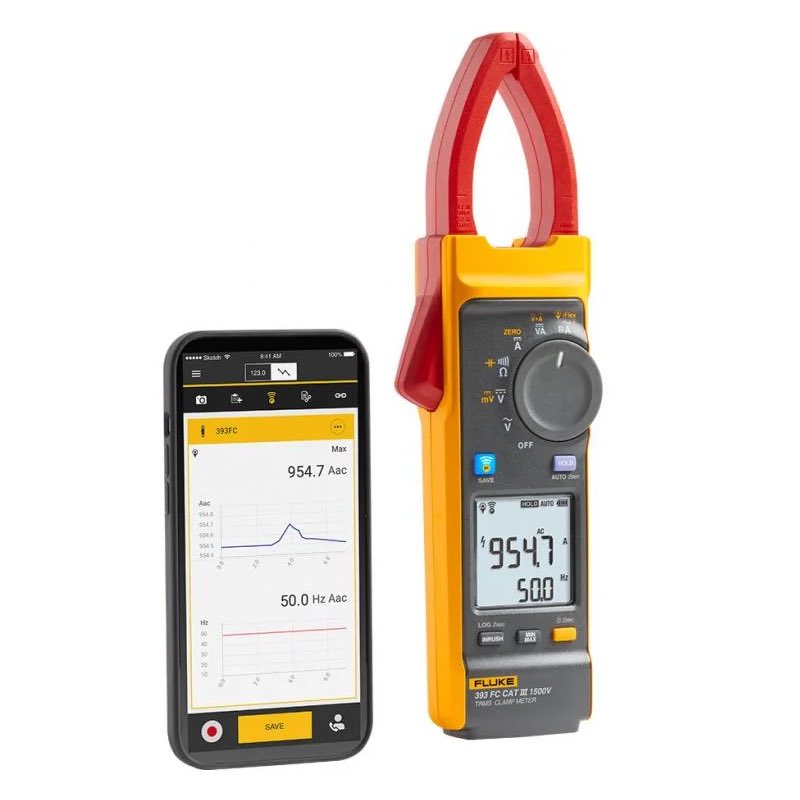

Fluke 393 FC CAT III 1500 V True-rms Solar Clamp Meter dengan iFlex dirancang untuk teknisi instalasi fotovoltaik surya (PV) dan profesional pemeliharaan yang bekerja di lingkungan DC tegangan tinggi: susunan PV, tenaga angin, jalur kereta listrik, bank baterai pusat data untuk pasokan listrik yang tidak pernah terputus. Meteran penjepit akan mengukur hingga 1500 V DC dan 1000 V AC dengan kabel uji, dan hingga 999,9 A DC atau AC melalui rahang penjepit. Probe arus fleksibel iFlex yang disertakan memperluas pengukuran arus AC hingga 2500 A. 393 memiliki rahang yang tipis, memberi Anda akses ke kabel dalam kotak penggabung yang penuh sesak. Selain itu, kabel uji dirancang dengan mempertimbangkan pekerjaan Anda, dan juga diberi peringkat CAT III 1500 V DC.
Key functions Fluke 393
- Berperingkat IP54, ideal untuk pekerjaan di luar ruangan termasuk pengujian panel PV
- Pengukuran daya DC, menunjukkan pembacaan dalam kVA
- Indikator Polaritas Audio membantu mencegah kesalahan kabel yang tidak disengaja
- Kontinuitas Visual memberikan lampu hijau terang di layar, ideal saat bekerja di lingkungan gelap dan bising
- Pencatatan dan pelaporan hasil pengujian melalui perangkat lunak Fluke Connect

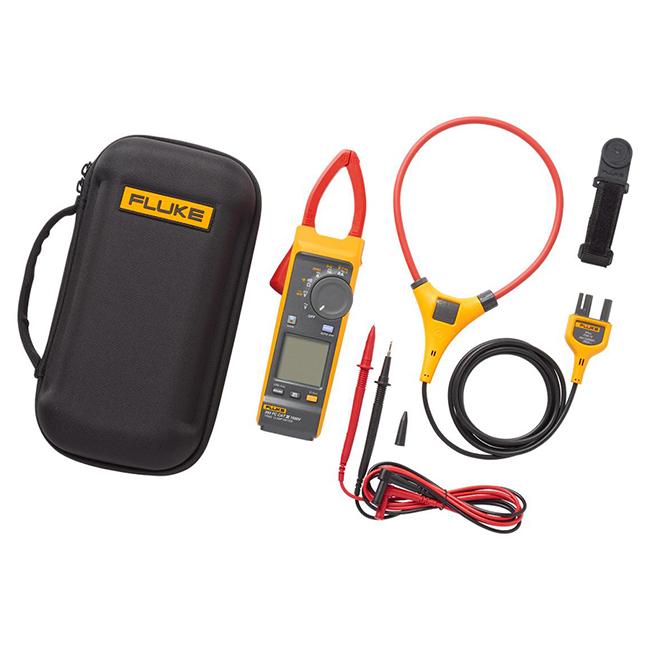

- Saat mengukur arus ac, probe arus fleksibel iFlex yang disertakan memberi Anda akses tak
- tertandingi ke kabel dalam ruang sempit. Probe iFlex dapat diputar melalui ruang yang sangat kecil dan memberikan pengukuran arus yang akurat.
SPESIFIKASI Fluke 393
| Specifications: | |||
| General | |||
| Maximum voltage between any Terminal and Earth Ground | |||
| AC | 1000 V | ||
| DC | 1500 V | ||
| Batteries | 2 AA IEC LR6 alkaline | ||
| Display | Dual display with backlight | ||
| Automatic Power Off | 20 minutes | ||
| Electrical | |||
| Accuracy | |||
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]). | |||
| Temperature Coefficients | Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C | ||
| AC Current: Jaw | |||
| Range | 999.9 A | ||
| Resolution | 0.1 A | ||
| Accuracy | 2 % + 5 digits (10 Hz to 100 Hz) | ||
| 2.5 % + 5 digits (100 Hz to 500 Hz) | |||
| Crest Factor (50/60 Hz) | 2.5 @600.0 A | ||
| 3.0 @500.0 A | |||
| 1.42 @999.9 A | |||
| Add 2 % for C.F. >2 | |||
| AC Current: Flexible Current Probe | |||
| Range | 999.9 A | ||
| 2500 A | |||
| Resolution | 0.1 A (≤999.9 A) | ||
| 1 A (≤2500 A) | |||
| Accuracy | 3 % RD + 5 digits (10 Hz to 500 Hz) | ||
| Crest Factor (50/60Hz) | 2.5 @1400 A | ||
| 3.0 @1100 A | |||
| 1.42@2500 A | |||
| Add 2 % for C.F. >2 | |||
| Position Sensitivity | |||
 | |||
| Distance from Optimum | i2500-10 Flex | i2500-18 Flex | Error |
| A | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | ±0.5 % |
| B | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | ±1.0 % |
| C | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | ±2.0 % |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | |||
| DC Current | |||
| Range | 999.9 A | ||
| Resolution | 0.1 A | ||
| Accuracy | 2 % RD + 5 digits[1] | ||
| [1] When using the ZERO (B) function to compensate for offsets. | |||
| AC Voltage | |||
| Range | 600.0 V | ||
| 1000 V | |||
| Resolution | 0.1 V (≤600.0 V) | ||
| 1 V (≤1000 V) | |||
| Accuracy | 1 % RD + 5 digits (20 Hz to 500 Hz) | ||
| DC Voltage | |||
| Range | 600.0 V | ||
| 1500 V | |||
| Resolution | 0.1 V (≤600.0 V) | ||
| 1 V (≤1500 V) | |||
| Accuracy | 1 % RD + 5 digits | ||
| mV dc | |||
| Range | 500.0 mV | ||
| Resolution | 0.1 mV | ||
| Accuracy | 1 % RD + 5 digits | ||
| Amps Frequency: Jaw | |||
| Range | 5.0 Hz to 500.0 Hz | ||
| Resolution | 0.1 Hz | ||
| Accuracy | 0.5 % RD + 5 digits | ||
| Trigger Level | 5 Hz to 10 Hz, ≥10 A | ||
| 10 Hz to 100 Hz, ≥5 A | |||
| 100 Hz to 500 Hz, ≥10 A | |||
| Amps Frequency: Flexible Current Probe | |||
| Range | 5.0 Hz to 500.0 Hz | ||
| Resolution | 0.1 Hz | ||
| Accuracy | 0.5 % RD + 5 digits | ||
| Trigger Level | 5 Hz to 20 Hz, ≥25 A | ||
| 20 Hz to 100 Hz, ≥20 A | |||
| 100 Hz to 500 Hz, ≥25 A | |||
| Voltage Frequency | |||
| Range | 5.0 Hz to 500.0 Hz | ||
| Resolution | 0.1 Hz | ||
| Accuracy | 0.5 % RD + 5 digits | ||
| Trigger Level | 5 Hz to 20 Hz, ≥5 V | ||
| 20 Hz to 100 Hz, ≥5 V | |||
| 100 Hz to 500 Hz, ≥10 V | |||
| DC Power | |||
| Range | 600.0 kVA (600.0 V dc range) | ||
| 1500 kVA (1500 V dc range) | |||
| Resolution | 0.1 kVA | ||
| 1 kVA | |||
| Accuracy | 2 % RD + 2.0 kVA | ||
| 2 % RD + 20 kVA | |||
| Resistance | |||
| Range | 600.0 Ω | ||
| 6000 Ω | |||
| 60.00 kΩ | |||
| Resolution | 0.1 Ω (≤600.0 Ω) | ||
| 1 Ω (≤6000 Ω) | |||
| 0.01 kΩ (≤60.00 kΩ) | |||
| Accuracy | 1 % RD + 5 digits | ||
| Capacitance | |||
| Range | 100.0 μF | ||
| 1000 μF | |||
| Resolution | 0.1 μF (≤100.0 μF) | ||
| 1 μF (≤1000 μF) | |||
| Accuracy | 1 % RD + 5 digits | ||
| Inrush Trigger Level | 5 A | ||
| Mechanical | |||
| Size (L x W x H) | 281 mm x 84 mm x 49 mm | ||
| Weight (with batteries) | 520 g | ||
| Jaw Opening | 34 mm | ||
| Flexible Current Probe Diameter | 7.5 mm | ||
| Flexible Current Probe Cable Length | |||
| (head to electronics connector) | 1.8 m | ||
| Environmental | |||
| Operating Temperature | -10 °C to 50 °C | ||
| Storage Temperature | -40 °C to 60 °C | ||
| Operating Humidity | Non condensing (<10°C) | ||
| ≤90 % RH (at 10 °C to 30 °C) | |||
| ≤75 % RH (at 30 °C to 40 °C) | |||
| ≤45 % RH (at 40 °C to 50 °C) | |||
| Operating Altitude | 2000 m | ||
| Storage Altitude | 12 000 m | ||
| Ingress Protection (IP) Rating | IEC 60529: IP54 non-operating | ||
| Electromagnetic Compatibility (EMC) | |||
| International | IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A | ||
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. | |||
| Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. | |||
| Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. | |||
| Korea (KCC) | Class A equipment (Industrial Broadcast & Communications Equipment) | ||
| Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. | |||
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | ||
| Safety | |||
| General | IEC 61010-1, Pollution Degree 2 | ||
| Measurement | IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V | ||
| IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V | |||
| Wireless Radio | |||
| Radio frequency certification | FCC ID: T68-FBLE, IC: 6627A-FBLE | ||
| Wireless Radio Frequency Range | 2400 MHz to 2483.5 MHz | ||
| Output Power | <100 mW | ||
