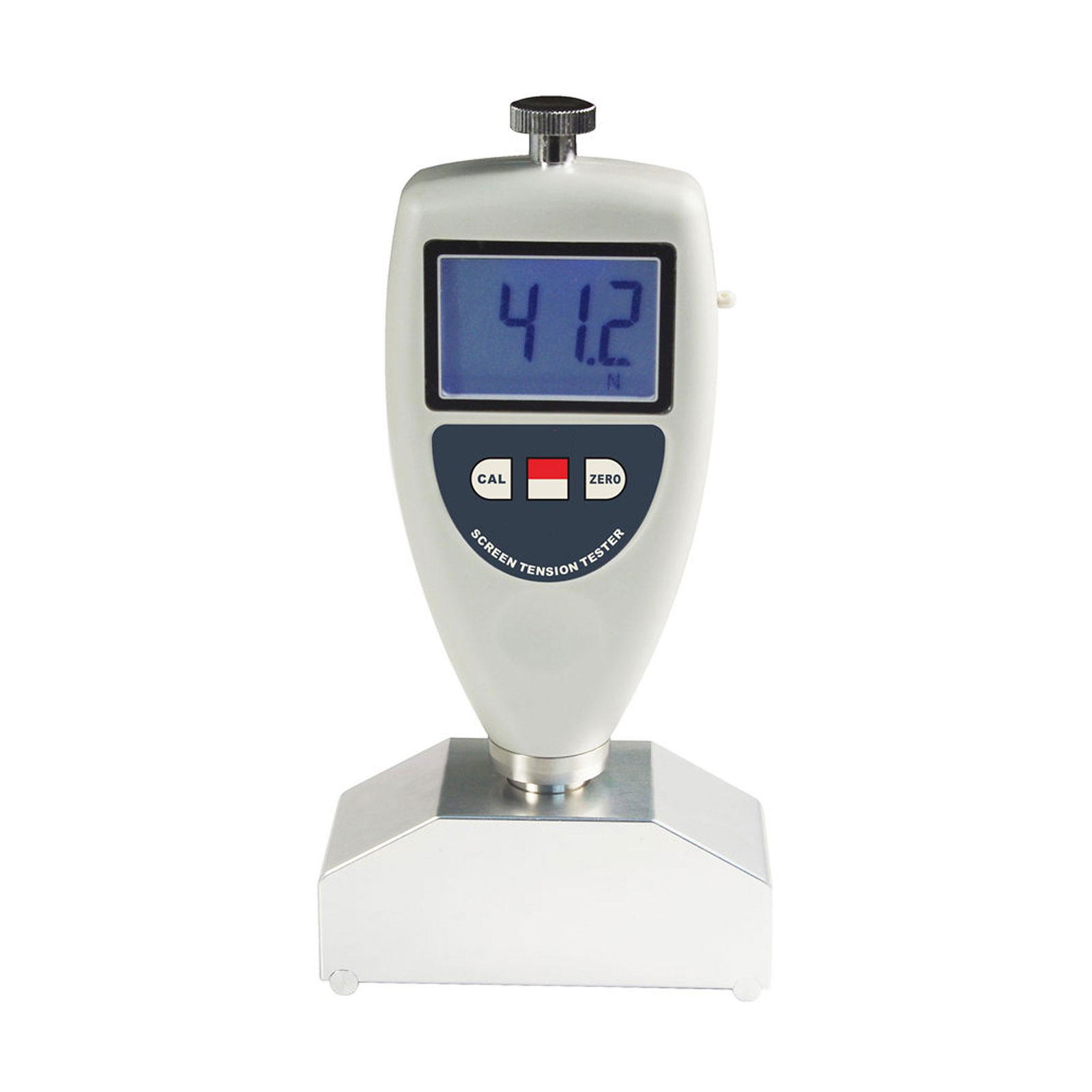

Penguji Ketegangan Layar dapat digunakan untuk mengukur ketegangan kasa kawat dan kasa baja secara umum. Cocok untuk pengukuran sablon dan stensil layar, dengan akurasi tinggi. Alat yang ideal dan diperlukan untuk produksi kasa dan kasa baja yang presisi.
FITUR
- Layar digital LCD, menghilangkan kesalahan pembacaan.
- Konversi satuan antara N/cm dan kg/cm.
- Gunakan keluaran data USB dengan koneksi PC.
- Menyediakan pilihan keluaran data Bluetooth.
SPESIFIKASI
| Measurement Range | 7~40 N/cm | |
| Display Range | 0~50 N/cm | |
| Resolution | 0.1 | |
| Fiducial Error | 5% | |
| Operating Environment | Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH | |
| Power Supply | 4×1.5v AAA(UM-4) battery | |
| Size | 175x95x40mm | |
| Weight | 490 g (Not included Batteries) | |
| Product Accessories | ||
| Standard Accessories | Main Unit | |
| Calibration Block | ||
| Carrying Case | ||
| Operation Manual | ||
| Optional Accessories | USB/RS232C data output | |
| Bluetooth data output | ||
| Printing Task and Determination of Screen Tension | ||
| Wire Mesh | Printing Task | Tension (N/cm） |
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing | 16~20 |
| (Mechanical Printing) | ||
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net | Multicolor and Four-Color Printing | 8~12 |
| (Standard Monofilament) | (Manual Printing) | |
| Ordinary Polyester Net | Flat Object | 8~12 |
| (Standard Monofilament) | ||
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
