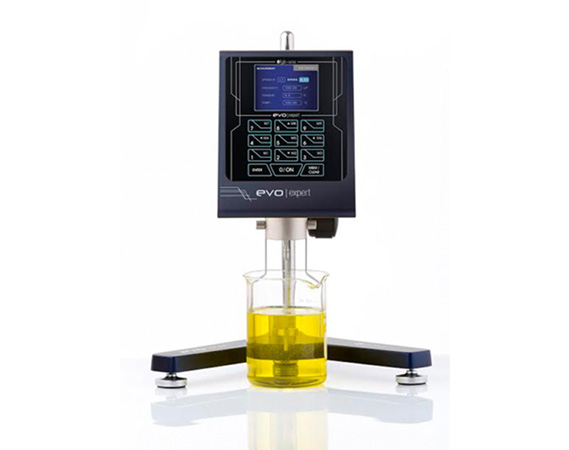

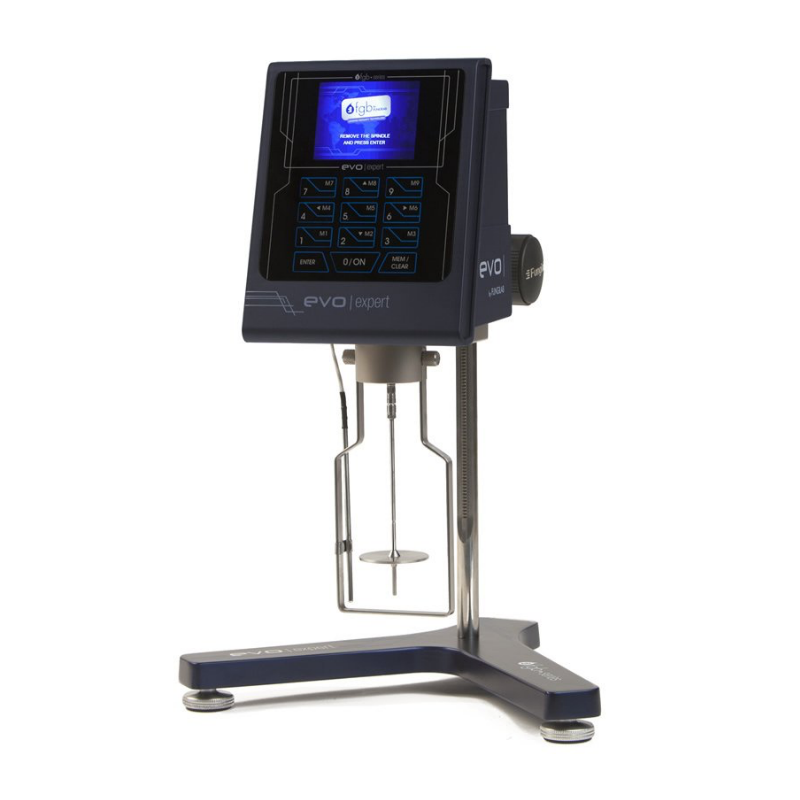

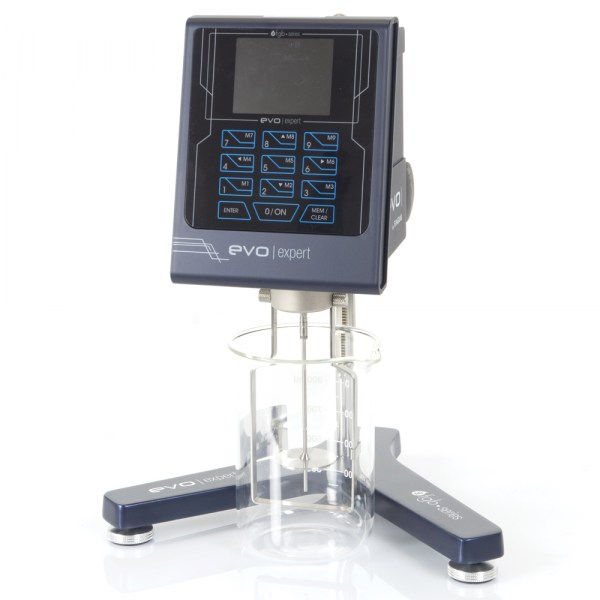

Fungilab FGB EVO Expert Viscometer adalah viskosimeter canggih yang dikembangkan oleh Fungilab. Viskosimeter ini dirancang untuk memberikan pengukuran viskositas yang akurat dan dapat diandalkan dalam berbagai aplikasi laboratorium. Teknologi Sensor dan Kecepatan Rotor: Fungilab FGB EVO Expert dilengkapi dengan teknologi sensor suhu yang canggih untuk mengukur suhu sampel dengan presisi tinggi. Selain itu, viskosimeter ini memiliki pilihan kecepatan rotor yang dapat disesuaikan, memungkinkan pengguna untuk mengatur kecepatan rotor sesuai dengan kebutuhan pengukuran.
Fungilab FGB EVO Expert Viscometer adalah pilihan ideal untuk laboratorium yang membutuhkan viskosimeter yang dapat diandalkan, akurat, dan mudah digunakan. Dengan fitur-fitur canggihnya, viskosimeter ini memungkinkan pengguna untuk melakukan pengukuran viskositas dengan presisi tinggi dalam berbagai aplikasi industri, penelitian.
FITUR
- Aplikasi fungilab yang mudah digunakan.
- Antarmuka Bluetooth.
- Layar TFT berwarna untuk pembacaan yang mudah dan pengenalan data yang cepat.
- Papan tombol sentuh penuh yang intuitif: data di ujung jari Anda.
- Koneksi USB baru: Tipe generasi 2.0 untuk mengunduh data ke Pc atau Flashdisk.

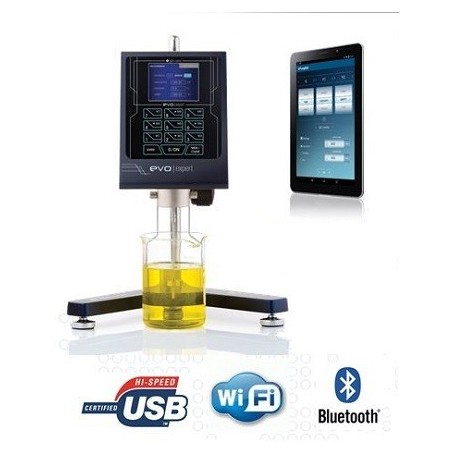

- Koneksi Bluetooth memungkinkan percobaan kami dialihkan ke Tablet.
SPESIFIKASI
| SCREEN DATA | |
|---|---|
| Selected speed | rpm |
| Selected spindle | SP |
| Viscosity reading | cP (mPa·s) or cSt |
| Percentatge of full scale | % |
| Sample temperature | ºC or ºF |
| Shear Rate (with coaxial spindles) | SR (s-1) |
| Shear Stress (with coaxial spindles) | SS (N/m2) |
| Density (introduced by the user) | g/cm3 |
| VISCOSITY READING | |
|---|---|
| Dynamic viscosity | cP or mPa·s |
| Kinematics viscosity | cSt |
| Units Converter | from SI to CGS |
| PROGRAM FEATURES |
|---|
| Time to torque: Ending of the test upon reaching a programmed torque |
| Time to stop: Ending of the test upon reaching a programmed time |
| Multistep: posibility to programme several essays in a successive way |
| Ramps: essay programation with an initial and final speed in an specific time |
| 10 working memories |
| OTHER MAIN FEATURES |
|---|
| AUTO-TEST with visual and resonant alarm |
| AUTO-RANGE function |
| Temperature Reading through PT100 probe |
| User-enabled viscosity and temperature calibration |
| 6 language options |
| Port: USB |
| Datalogger: Posibility to tranfer data to a pendrive into Excel format |
| Statistics: Posibility to see data in graphics |
| Download all data through the bluetooth app |
Spindles
AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350
- BS: 6075, 5350
- ISO:2555,1652
- ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Standard delivery
- The equipement is supplied complete with standard spindles
- 4 spindles for L model
- 6 spindles for R and H models
- Viscometer stand
- Spindle protector
- Temperature probe PT100
- Carring case
- USB cable
- External power supply
TECHNICAL SPECIFICATIONS
- Precision: +/- 1% full scale of range
- Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP
- Repeatability: 0.2%
- Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF Precision: +/- 0.2ºC / +/- 17.666 ºF Type of probe: PT100
- Supplied at 110-240VAC, 50/60 Hz.
- Software: Fungilab Data Boss The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation
ACCESSORIES
- APM : Small Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
- APM/B : Small Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
- LCP : Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
- LCP/B : Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
- HELDAL : Helix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
- THERMOSPHERE : Temperature control unit up to 300 ºC
| CODE | MODEL | MEASURING RANGE (CP) | SPEED (R.P.M) | NUMBER OF SPEEDS |
|---|---|---|---|---|
| VE320003BT | EVO EXPERT L | *1 – 6.000.000 | 0.01 – 250 | 2600 |
| VE320002BT | EVO EXPERT R | 25 – 40.000.000 | 0.01 – 250 | 2600 |
| VE320001BT | EVO EXPERT H | 200 – 320.000.000 | 0.01 – 250 | 2600 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.
PPR
Fast spindle switch (push plug and release)
| CODE | MODEL | MEASURING RANGE (CP) | SPEED (R.P.M) | NUMBER OF SPEEDS |
|---|---|---|---|---|
| VE321003BT | EVO EXPERT L + PPR | *1 – 6.000.000 | 0.01 – 250 | 2600 |
| VE321002BT | EVO EXPERT R + PPR | 25 – 40.000.000 | 0.01 – 250 | 2600 |
| VE321001BT | EVO EXPERT H + PPR | 200 – 320.000.000 | 0.01 – 250 | 2600 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.
Ranges
- (L) Low viscosity model
- (M) Medium viscosity model
- (H) High viscosity model
