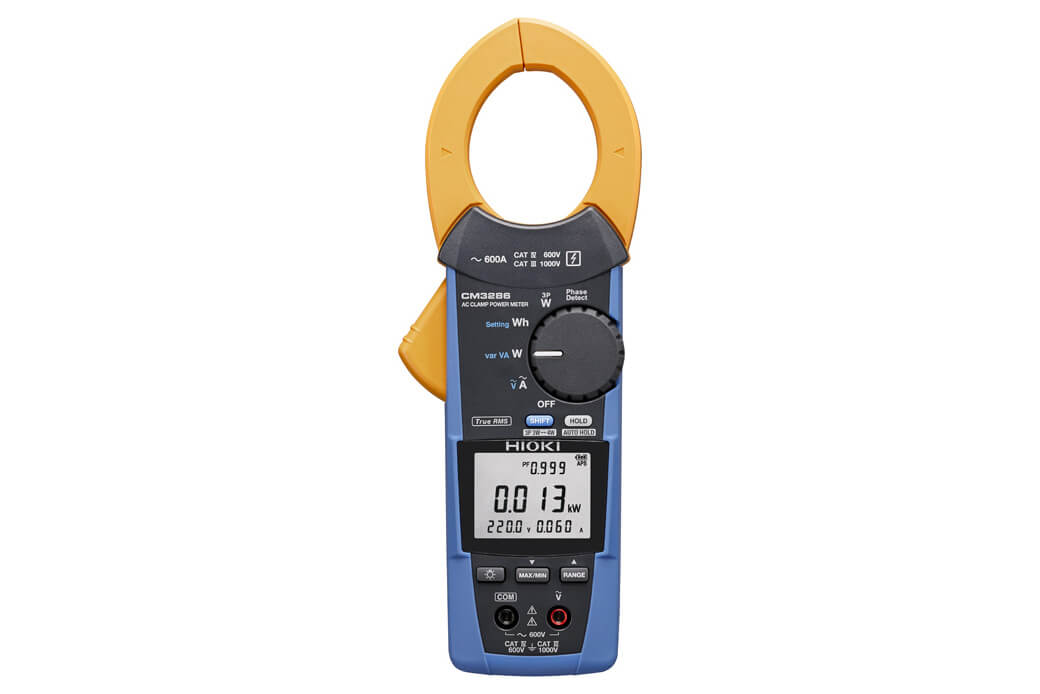

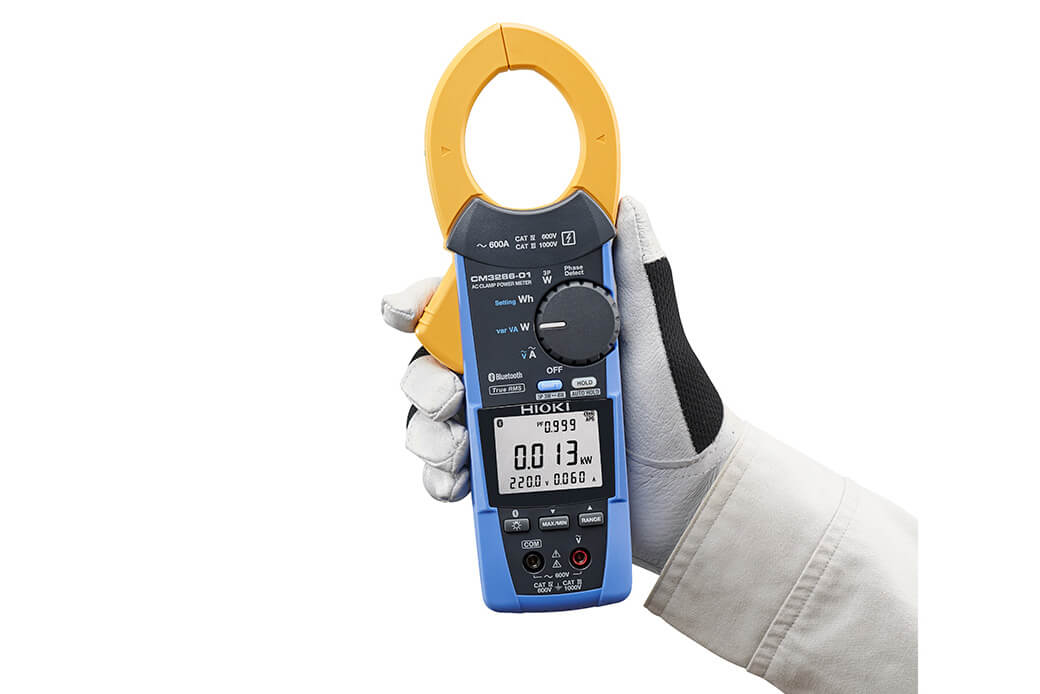

Meteran penjepit Hioki adalah meteran arus dan tegangan genggam terbaik di kelasnya untuk mengukur saluran listrik dengan aman dan akurat. Penjepit CM3286 pada meteran listrik dapat mengukur tegangan, arus, daya, faktor daya, sudut fasa, daya reaktif atau frekuensi, serta mendeteksi urutan fasa pada saluran hidup pada titik mana pun yang diinginkan dari rangkaian satu fasa atau rangkaian tiga fasa.
FITUR Hioki CM3286-90
- Menampilkan empat parameter secara bersamaan
- Pengukur daya genggam yang mengukur daya 5 W dan arus 60 mA
- Ukur daya mulai dari 5 W pada arus rendah 60 mA hingga 360 kW
- Selain arus, tegangan, dan daya, ukur konsumsi daya integral sederhana dan urutan fasa
- Fitur dan fungsi memberikan pengujian yang cepat dan efisien
- Analisis harmonik dari urutan 1 hingga 30 dengan GENNECT Cross (Adaptor Nirkabel Z3210 diperlukan)
- Transfer data pengukuran dengan mudah ke ponsel cerdas atau tablet Anda menggunakan
- aplikasi gratis kami GENNECT Cross atau ke file Excel® (Adaptor Nirkabel Z3210 diperlukan)
SPESIFIKASI Hioki CM3286-90
| Measurement line | Single-phase, Three-phase (balanced with no distortion) |
|---|---|
| Measurement items | Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase) [With Z3210 installed (*2)] Voltage/Current harmonics |
| AC voltage range | [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| AC current range | [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| Power range | [Single phase] 0.005 kW to 360.0 kW Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 3-wire] 0.020 kW to 623.5 kW Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 4-wire] 0.040 kW to 1080 kW Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1) |
| Harmonic levels | [With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Other functions | [Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc. |
| Dustproof and waterproof | IP50 (for measurement of current in insulated conductors or storage in completely dry conditions) |
| Power supply | LR03 Alkaline battery ×2 Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications) Other conditions: 100 A AC measurement, backlight off, 23°C reference value |
| Core jaw dia. | φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm |
| Dimensions and mass | 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz) |
| Included accessories | Connection Cord L9257 ×1, LR03 Alkaline battery ×2, Carrying Case C0203 ×1, Instruction Manual ×2, Operating Precautions ×1 |
