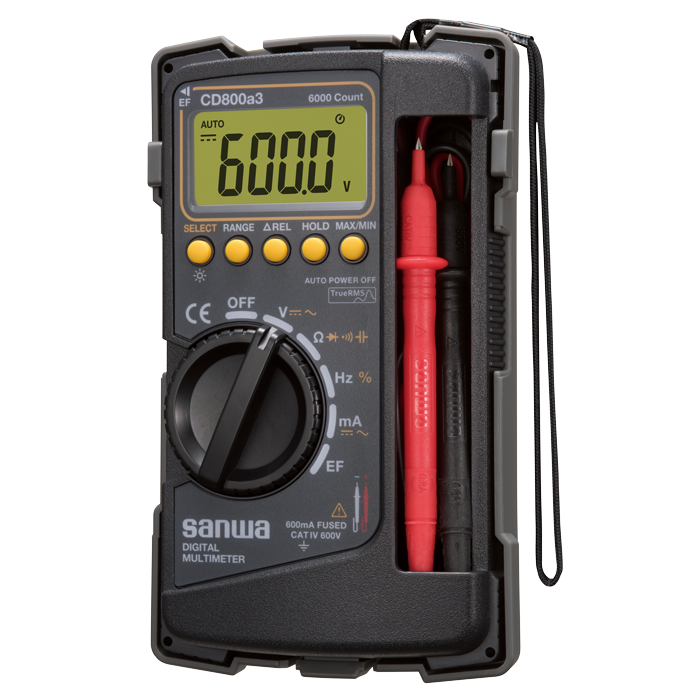

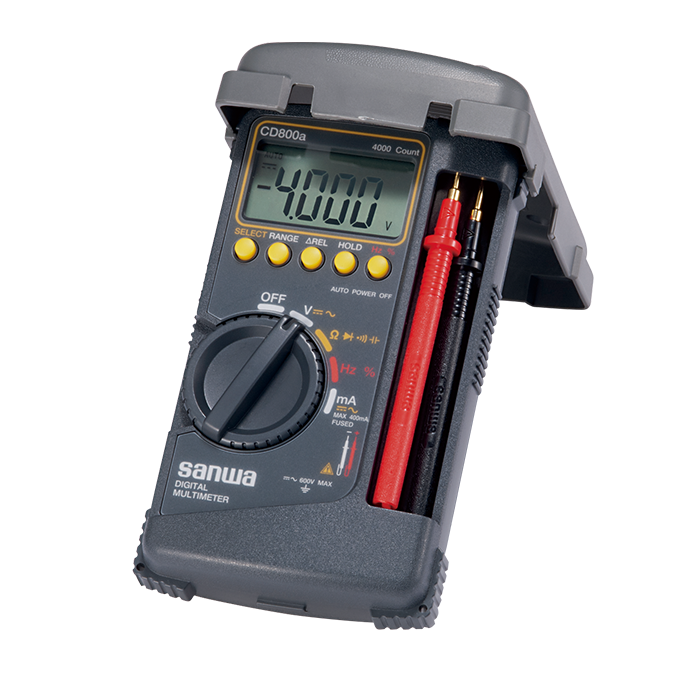

Sanwa CD800a3 Digital Multimeter adalah multimeter digital kelas atas (“True RMS”) yang dirancang untuk penggunaan profesional dan teknisi, terutama di lingkungan yang menuntut akurasi dan keamanan tinggi.
Sanwa CD800a3 Digital Multimeter dilengkapi bodi yang kokoh (with tough body cover) serta proteksi CAT IV 600V, membuatnya aman untuk mengukur di jaringan dan instalasi listrik modern.Display 6000 count dengan backlight memudahkan pembacaan di kondisi rendah cahaya. CD800A3 cocok untuk pengukuran AC/DC voltage & current, resistansi, kapasitansi, frekuensi, dan lain-lain.
Fitur Sanwa CD800a3
- 6000 count
- True RMS
- 0.7 best accuracy (DCmV)
- Max/Min value hold
- Data hold, Range hold, Relative function
- EF (Electric Field) sensing
- Auto power off (30min.)(cancelable)

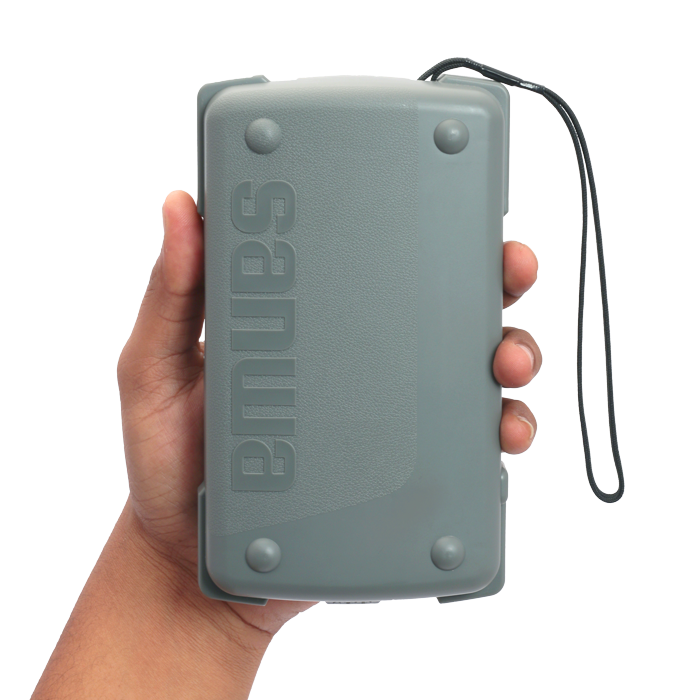

- Body cover for protection and as a tilt stand
- Back light
- Chip holder behind the body cover
Spesifikasi Sanwa CD800a3
| CD800a3 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 600m/6/60/600V | ±(0.7%+3) | 0.1mV | 10MΩ |
| ACV | 6/60/600V | ±(1.6%+5) | 0.001V | 10MΩ |
| DCA | 60m/600mA | ±(2.2%+5) | 0.01mA | |
| ACA | 60m/600mA | ±(2.8%+5) | 0.01mA | |
| Resistance | 600/6k/60k/600k/6M/60MΩ | ±(1.2%+5) | 0.1Ω | |
| Capacitance | 60n/600n/6μ/60μ/600μ/6mF | ±(5%+10) | 0.01nF | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99kHz | ±(0.5%+3) | 0.001Hz | |
| Duty cycle | 20%～80% | ±(0.5%+5) | 0.1% | |
| Continuity | Buzzer sounds at 39-60Ω or less. Open voltage: approx. 0.4V | |||
| Diode test | Open voltage: approx. 3V | |||
| EF detection | Detects ACV and EF of approx. 90V or more | |||
| Display | numeral display 6000/9999(Hz function) |
| Sampling rate | 3 times/sec. |
| Bandwidth | 40-400Hz |
| Fuse | 0.6A/600V 10kA Φ6.3×32mm Ceramic |
| Battery | R6x2 |
| Battery life | Approx.650h at DCV |
| Size/Mass | H176×W104×D46mm/Approx. 340g |
| Test lead length/Pin tip | Length: approx. 0.77m/19mm |
| Safety standards | IEC61010 CAT.IV 600V |
