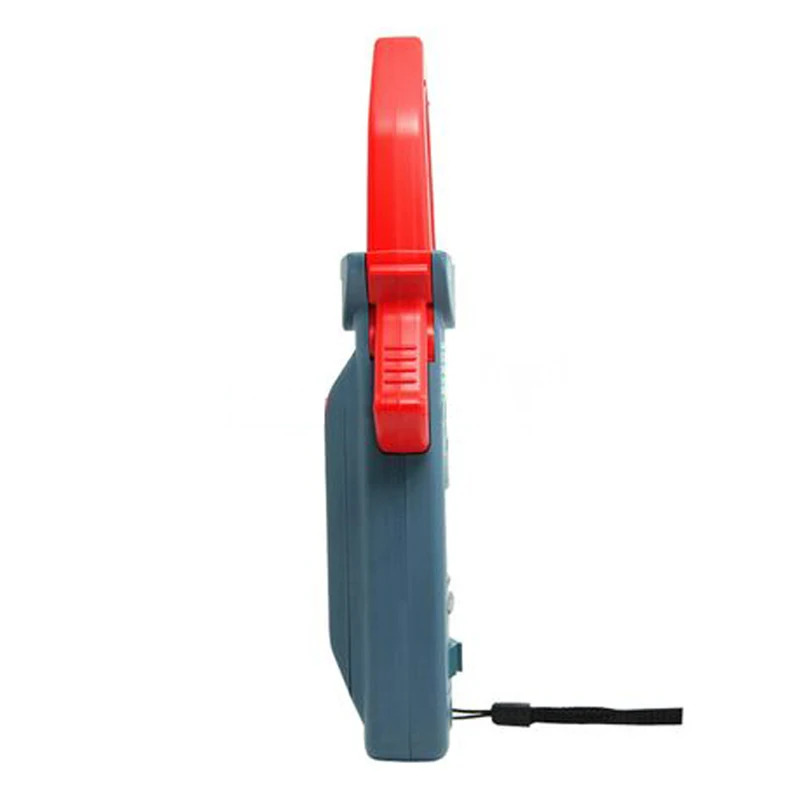

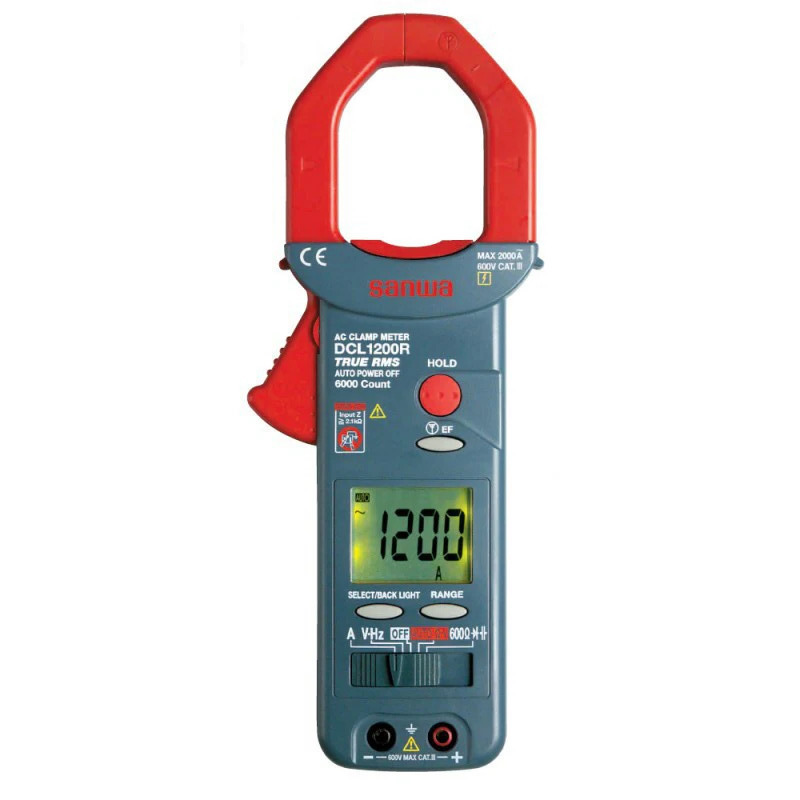

Sanwa DCL1200R Digital Clamp Meter (Tang Ampere) adalah alat ukur listrik yang digunakan untuk mengukur arus listrik (ampere) pada kabel atau penghantar tanpa perlu memutuskan sirkuit. Alat ini sangat berguna dalam berbagai aplikasi seperti pemeriksaan instalasi listrik, perawatan sistem kelistrikan, dan pengujian arus listrik pada peralatan industri atau rumah tangga.
FITUR Sanwa DCL1200R
- Kira-kira ringan. 290 gram
- LCD besar dengan lampu latar
- Tombol penahan data ukuran besar yang mudah digunakan
- Fungsi deteksi tegangan non-kontak
- Deteksi V/Ω otomatis
SPESIFIKASI Sanwa DCL1200R
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 400/1200A | ±(1.7%+5) | 0.1A |
| DCV | 6/60/600V | ±(0.7%+3) | 0.001V |
| ACV | 6/60/600V | ±(1.7%+5) | 0.001V |
| Auto resistance | 6k/60k/600k/6MΩ | ±(1.2%+4) | 1Ω |
| Resistance | 600Ω | ±(2.2%+8) | 0.1Ω |
| Frequency | 9.999/99.99/9.999k/30kHz | ±(0.6%+4) | 0.001Hz |
| Capacitance | 100n/1000n/10μ/100μ/2000μF | ±(3.7%+5) | 0.1nF |
| Continuity | Buzzer sounds at between 0Ω and 155Ω (±145Ω) Open voltage: approx. 0.4V | ||
| Diode test | Open voltage: approx. 1.6V | ||
| Voltage detection | Buzzer sounds and “-” is shown on LCD. Input sensitivity: approx. 20V or over (50/60Hz) | ||
| Sampling rate | 5 times/sec. |
| Bandwidth | ACA 50/60Hz ACV 50-500Hz |
| Display | 6000 |
| Clamp diameter/Conductor size | Φ42mm/20×54mm |
| Battery | R03×2 |
| Battery life | Approx. 90 hrs. at DCV (Alkaline battery/Backlight off) |
| Size/Mass | H238×W95×D45mm/Approx. 290g |
| Safety standards | IEC61010 CAT.Ⅲ 600V |
