Arus AC/DC, tegangan AC/DC, pengukuran watt, ohm, pengukuran frekuensi, akar kuadrat rata-rata sebenarnya.

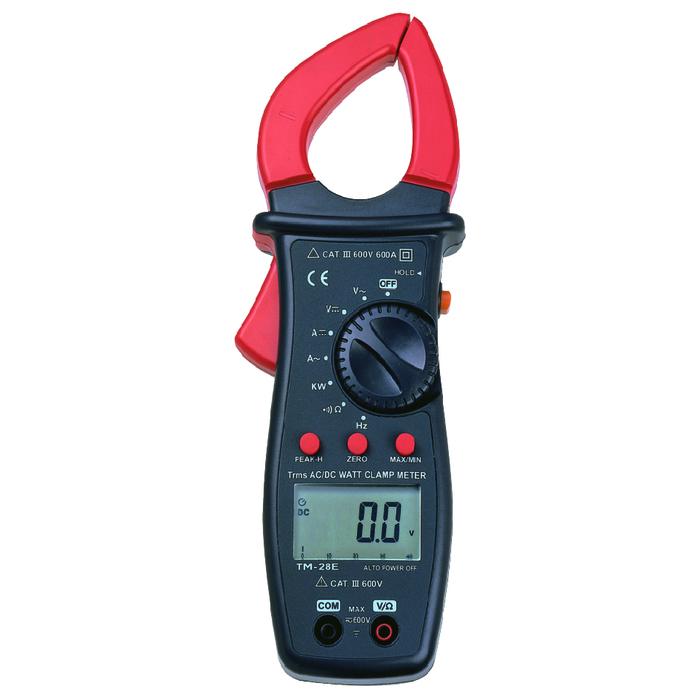

FITUR Tenmars TM-28E
- PENGUKURAN ARUS DC (DCA).
- PENGUKURAN ARUS AC (ACA).
- PENGUKURAN TEGANGAN DC (DCV).
- PENGUKURAN TEGANGAN AC (ACV).
- PENGUKURAN WATT AC+DC
- PENGUKURAN RESISTENSI
- UJI KONTINUITAS
- PENGUKURAN FREKUENSI
- MENGUKUR KUANTITAS NON-SINUSOIDAL
SPESIFIKASI Tenmars TM-28E
| Max Measuring Current | 600A |
| Display Counts | 4000 |
| Max Conductor Size | 35mm |
| AC Current | 0.1A to 600A±(2.0%+ 5) |
| AC Voltage | 0.1mV to 600V±(1.2%+ 7) |
| DC Current | 0.1A to 600A±(1.5%+ 5) |
| DC Voltage | 0.1mV to 600V±(0.5%+ 3) |
| Resistance | 0.1Ω to 40MΩ |
| Frequency | 1Hz to 400KHz |
| Watt | 0.01KW to 400KW |
