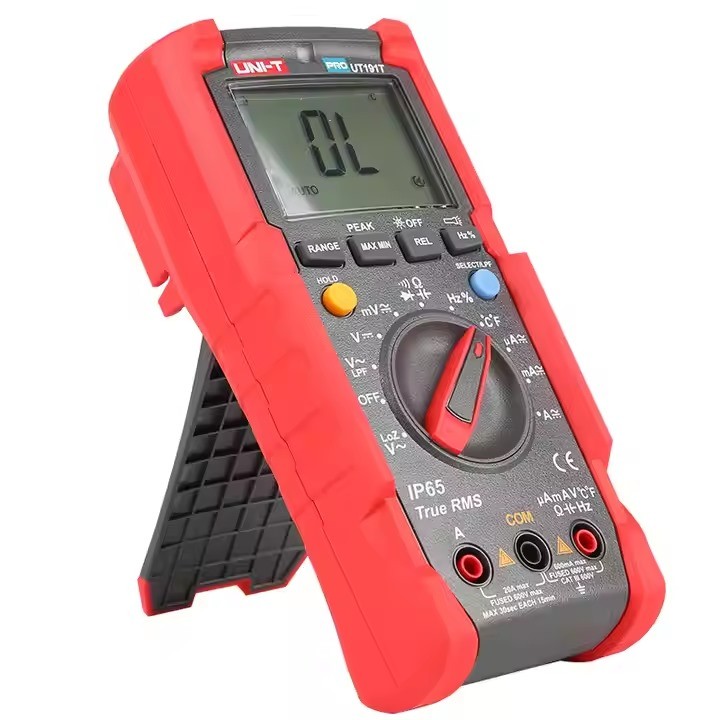

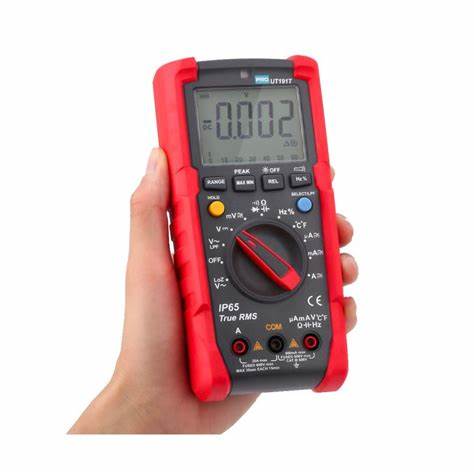

UT191E/T adalah multimeter industri genggam dengan fitur lengkap, keandalan tinggi, dan keamanan tinggi. Memenuhi sepenuhnya kebutuhan pengguna industri yang menggunakan beban berat, multimeter digital kedap air dan debu. Dilengkapi dengan lampu latar dan senter otomatis, dapat bekerja di lingkungan yang gelap
FITUR UNI-T UT191T
- Pengaturan pengukuran disimpan setelah daya disetel ulang
- IP65, tahan jatuh hingga 2m
- Pengukuran True RMS/Nilai puncak
- Senter, Lampu Latar Otomatis
- Pengukuran arus 20A
- Pengukuran LOZ AC
SPESIFIKASI UNI-T UT191T
Specifications | Range | UT191E | UT191T |
| DC voltage (V) | 600V | ±(0.5%＋3) | ±(0.5%＋3) |
| AC voltage (V) | 600V | ±(0.7%＋3) | ±(0.7%＋3) |
| LoZ ACV (V) | 600V | ±(2%＋5) | ±(2%＋5) |
| ACV LPF | 600V | ±(2%＋5) | ±(2%＋5) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(3%+5) | ±(3%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) |
| Temperature (℃) | -40℃~400℃ (0.1°C resolution) | ±(1%+20) | |
| Temperature (℉) | -40℉~752℉ (0.2°F resolution) | ±(1%+40) | |
| ACV peak hold | ±(2%+100) | ±(2%+100) | |
| Peak current detection | ±(3%+100) | ±(3%+100) | |
| Features | |||
| Display count | 6000 | ||
| Sampling rate | 3 times/second | ||
| Analog bar graph | 31 sections | ||
| True RMS | √ | ||
| AC voltage frequency response | 45Hz~400Hz | ||
| AC current frequency response | 45Hz~400Hz | ||
| Diode/Continunity test | √ | ||
| Auto/Manual range | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Data hold/MAX/MIN | √ | ||
| Function selection (SELECT) | √ | ||
| Flashlight/Auto backlight | √ | ||
| 2m drop test/IP65 | √ | ||
| General Characteristics | |||
| Power | 9V battery(not included) | ||
| LCD size | 58mm x 42mm | ||
| Product net weight | Red and grey | ||
| Product color | 428g | ||
| Product size | 180mm x 87mm x 59mm | ||
| Standard accessories | Test lead, carrying bag, point contact temperature probe (UT191T) | ||
| Standard individual packing | Gift box, English manual | ||
