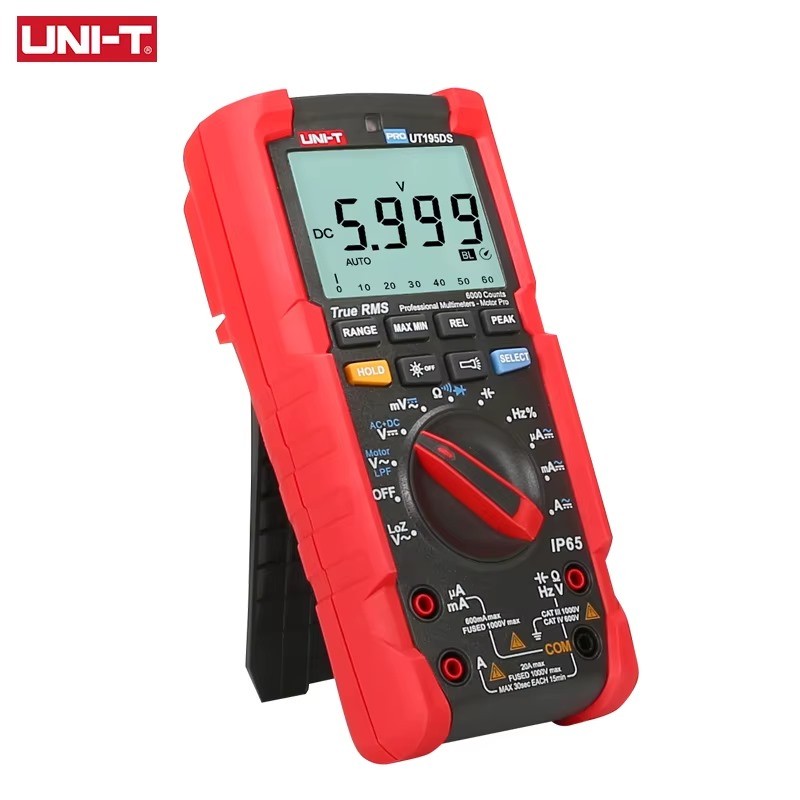

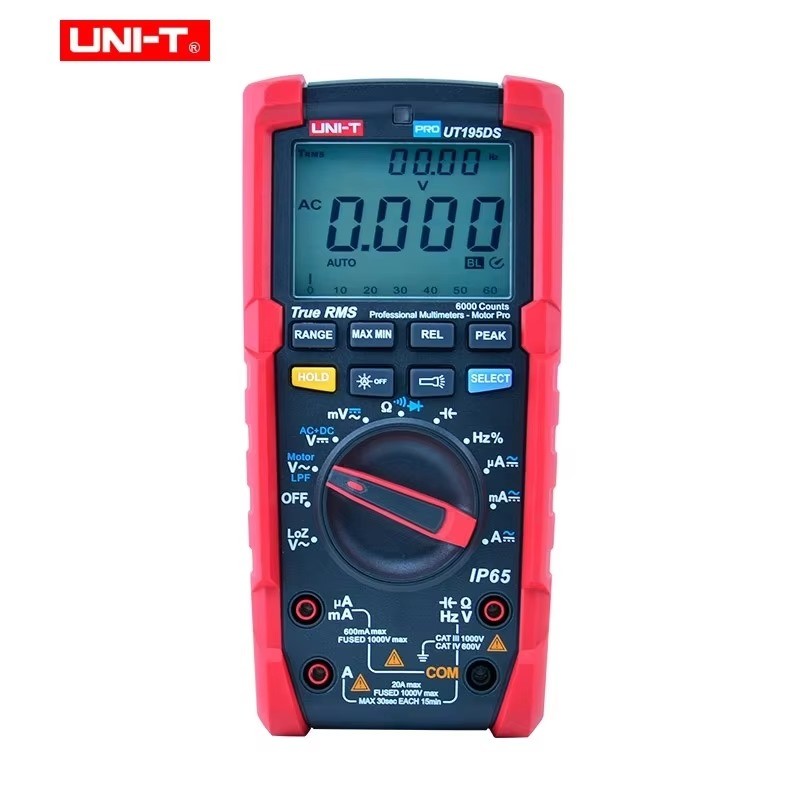

Seri UT195 adalah multimeter digital industri genggam dengan IP65 dan tahan jatuh hingga ketinggian 2m. Dibandingkan dengan multimeter tradisional, kemampuan pemecahan masalah, resolusi, dan presisi UT195 ditingkatkan untuk menemukan masalah yang terkait dengan penggerak motor, perawatan peralatan pabrik, distribusi listrik, dan perbaikan, dll. Perangkat ini dirancang dengan sangat indah dan mudah dioperasikan.
FITUR UNI-T UT195DS
- Peringkat IP65, tahan jatuh dari ketinggian 2m, CAT III 1000V, CAT IV 600V
- Layar LCD besar dengan kapasitas 6000
- True RMS
- Bandwidth ACV 750V 5kHz
- Senter
- Lampu latar LCD otomatis yang dikontrol oleh sensor cahaya (dapat dimatikan)
- Uji tegangan LoZ, untuk pengukuran tegangan ghost
- Pengukuran arus 20A (maks 30 detik)
- 31 bar analog
SPESIFIKASI UNI-T UT195DS
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| AC voltage (V) | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||

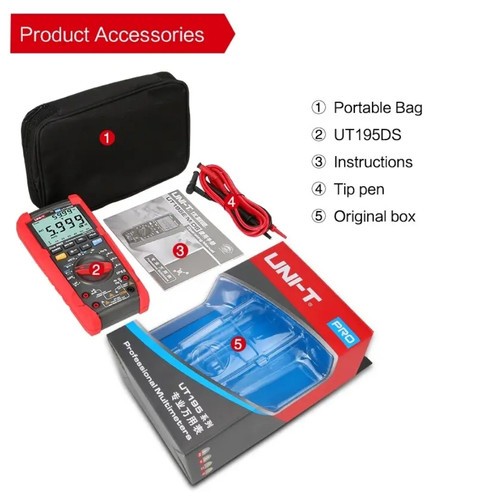

| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 6pcs | |||
| Standard carton measurement | 580mm x 375mm x 215mm | |||
| Standard carton gross weight | 7.2kg | |||
