Alat pengukur klem RMS sejati jangkauan otomatis genggam seri UT200+, dirancang sesuai dengan standar keselamatan EN61010-2010 tingkat CAT II600V/CAT III 300V, dengan perlindungan anti-bakar roda gigi yang berfungsi penuh, dapat memenuhi persyaratan pengoperasian yang andal dan aman.
FITUR UNI-T UT202+
| Display count | | 4000 |
| Auto range | | √ |
| Jaw opening | | 28mm |
| True RMS | | √ |
| NCV | | √ |
| Live wire test | | |
| Continuity test | | √ |
| Diode | | √ |
| MAX/MIN | | √ |
| Relative mode | | √ |
| Zero mode | | |
| Data hold | | √ |
| Low battery indication | | √ |
| Auto power off | | √ |
SPESIFIKASI UNI-T UT202+
| Specifications | Range | UT202+ | UT204+ |
| AC current (A) | 400A | ±(2%+10) | |
| 600A | | ±(2.5%+5) |
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | |
| DC current (A) | 400A | | |
| 600A | | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | |
| 10Hz~60kHz | | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | |
| 60MΩ | | ±(0.8%+2) |
| Capacitance (F) | 4mF | ±(4%+5) | |
| 40mF | | |
| 60mF | | ±(4%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | | ±(0.1%+4) |
| Features |
| Display count | | 4000 | 6000 |
| Auto range | | √ | √ |
| Jaw opening | | 28mm | 28mm |
| True RMS | | √ | √ |
| NCV | | √ | √ |
| Live wire test | | | √ |
| Continuity test | | √ | √ |
| Diode | | √ | √ |
| MAX/MIN | | √ | √ |
| Relative mode | | √ | √ |
| Zero mode | | | √ |
| Data hold | | √ | √ |
| Low battery indication | | √ | √ |
| Auto power off | | √ | √ |
| General Characteristics |
| Power | AAA (Ro3) x 2 |
| Display | 37mm x 25mm |
| Product colour | Red and grey |
| Product net weight | UT202+：248g; UT204+:235g |
| Product size | 215mm x 63mm x 36mm |

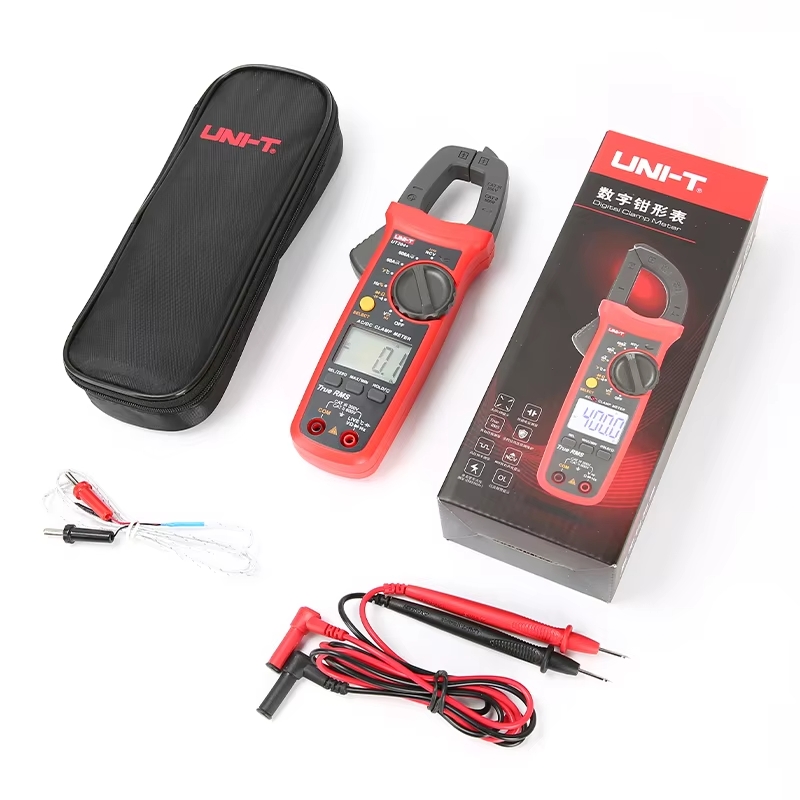

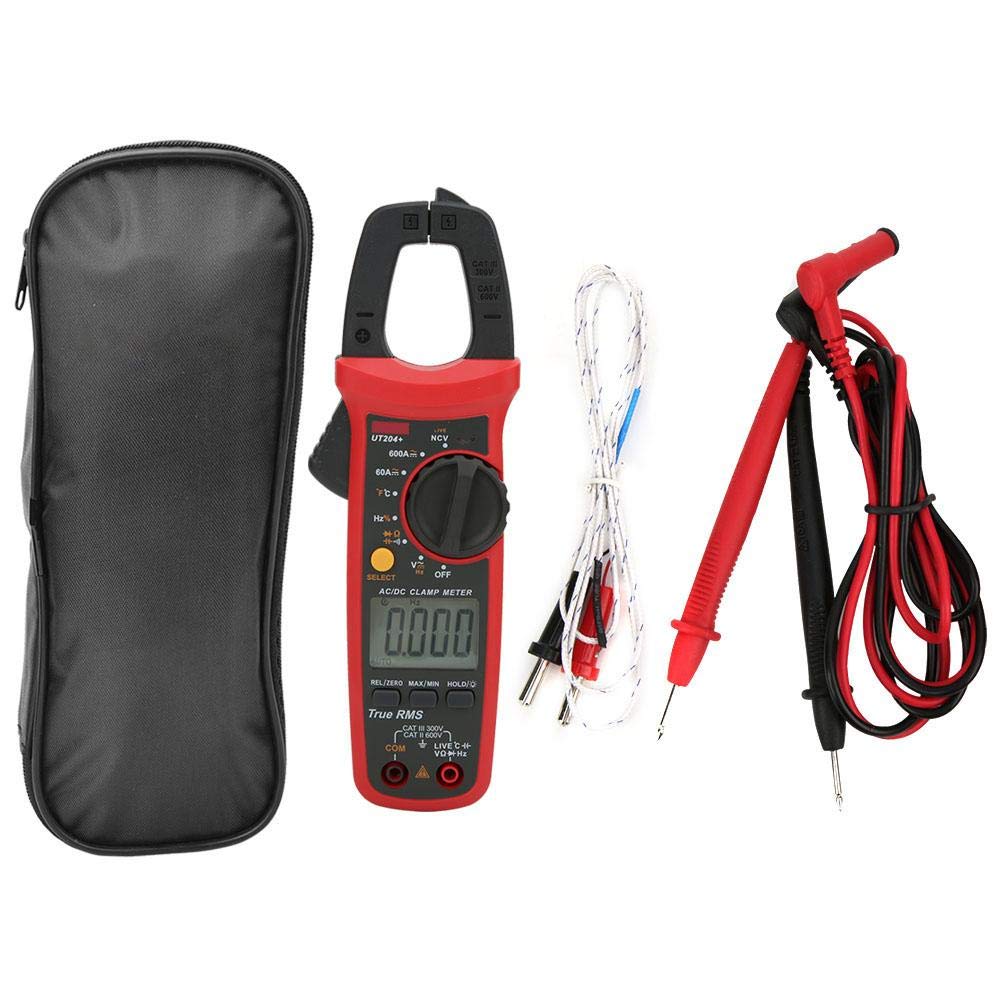

| Standard accessories | Batteries, test leads, Thermocouple (UT202+/UT204+) |
| Standard individual packing | Box, Carrying bag, English manual |
