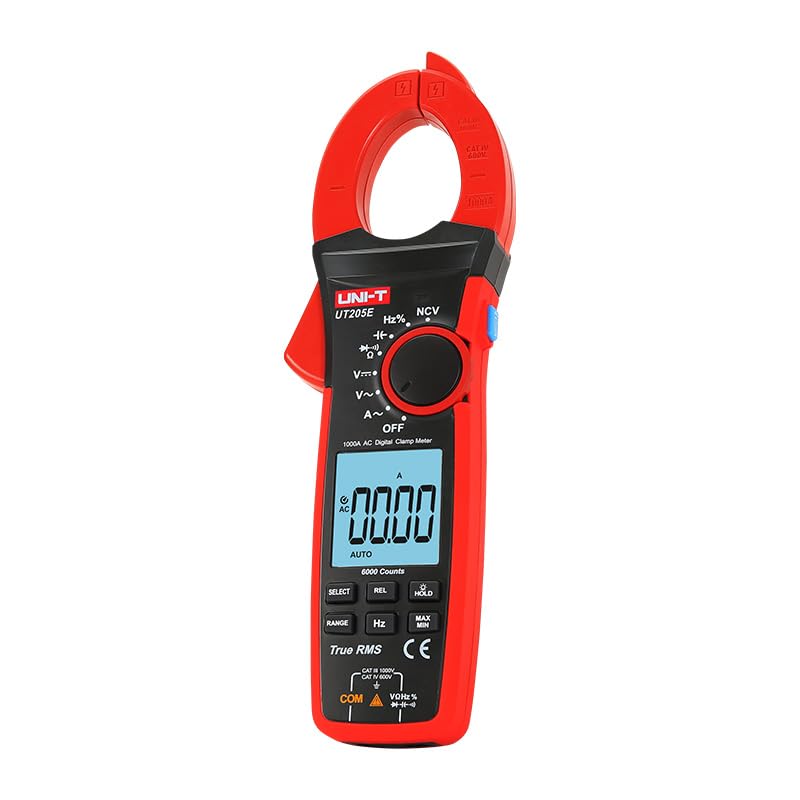

Clamp Meter UNIT UT205E merupakan instrumen digital dengan kemampuan 6000 hitungan yang dilengkapi dengan fitur auto-ranging, LCD besar, true RMS, memori auto-ranging dan fungsi NCV. Mereka mematuhi peringkat keselamatan CAT III 1000V/CAT IV 600V dan bersertifikat CE/ETL.
FITUR UNI-T UT205E
- Daya mati otomatis √
- Uji kontinuitas √
- Jangkauan Otomatis/Manual √
- Indikasi baterai lemah √
- Uji dioda √
- Mode relatif/Penahanan data √
- MAKS/MIN √
- Pemilihan fungsi √
- Senter √
- Fungsi bangun √
- Arus daya mati otomatis: ＜50μA √
- Impedansi input (ACV/DCV) ≥10MΩ √
SPESIFIKASI UNI-T UT205E
| Specifications | Range | UT205E |
| AC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 50Hz~60Hz | |
| AC voltage (V) | 6V | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | |
| DC voltage (V) | 600mV | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | |
| AC voltage frequency response | 40Hz~400Hz | |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Jaw opening | 42mm | |
| Current frequency | 50Hz~60Hz | |
| High voltage frequency | 40Hz~400Hz | |
