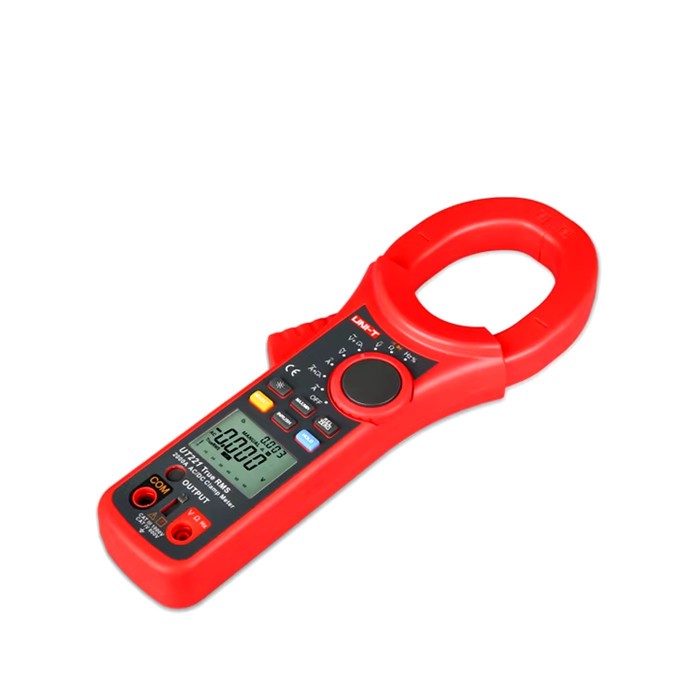

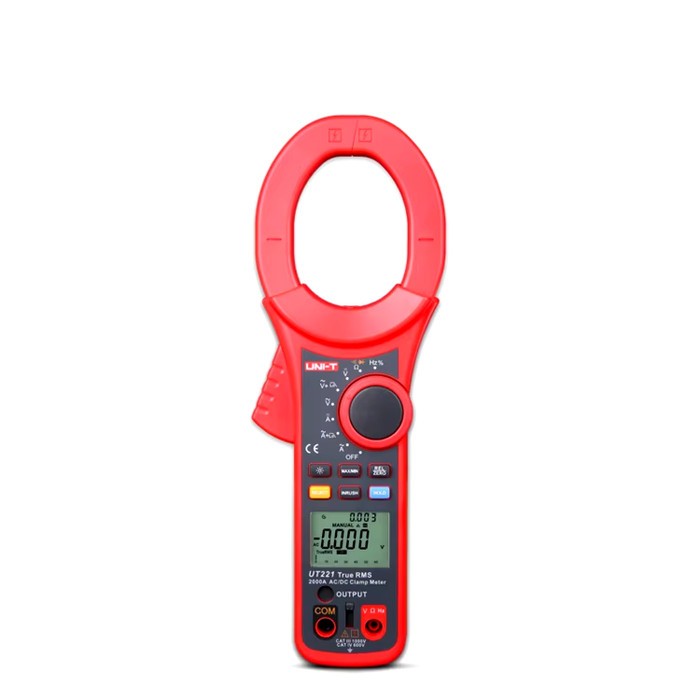

Seri UT220 adalah penjepit digital AC/DC 2000A. Seri ini memastikan kinerja, keamanan, dan keandalan yang stabil untuk mengukur arus AC (dan DC untuk UT221) hingga 2000A.
Didesain dengan perlindungan beban berlebih untuk semua rentang, sangat cocok untuk semua profesional yang mengukur arus hingga 2000A (2500A untuk UT222).
Model dalam seri UT220: UT220, UT221, UT222
FITUR UNI-T UT221
- Jangkauan otomatis
- Bel kontinuitas
- MAKS/MIN
- Dioda
- Penahanan data
- Indikasi baterai lemah
SPESFIKASI UNI-T UT221

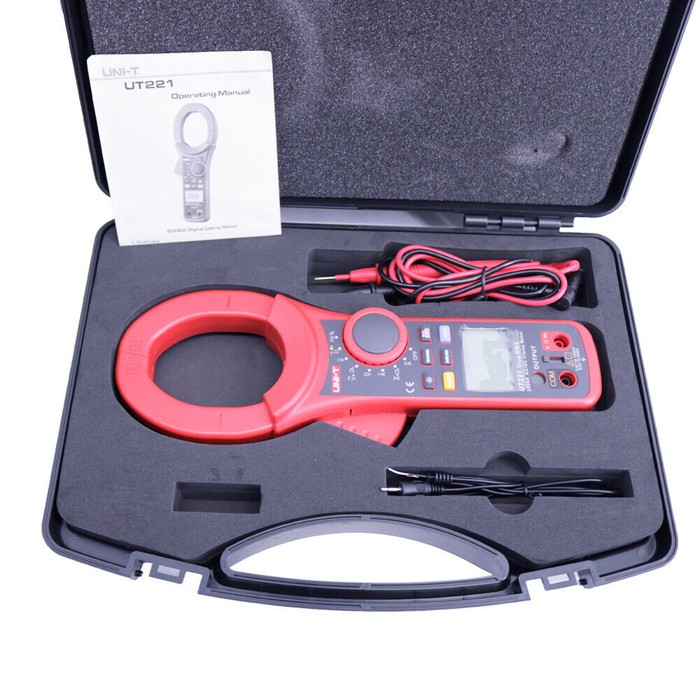

| Specifications | Range | Best Accuracy | | Model | | UT221 | | AC Current(A) | 660A/2000A | ±(2.5%+5) | | DC Current(A) | 660A/2000A | ±(2.5%+5) | | AC Voltage(V) | 6.6V/66V/660V/750V | ± (1.2%+5) | | DC Voltage(V) | 6.6V/66V/660V/750V | ±(0.8%+1) | | Resistance(Ω) | 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ | ±(1.0%+2) | | Frequency(Hz) | 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/20MHz | ±(0.1%+3) | | Features | | Display Count | | 6600 | | Auto Range | | √ | | Jaw Opening | | 63mm | | True RMS | AC Voltage/AC Current | √ | | Duty Cycle | 0.1%~99.9% | √ | | Diode | | √ | | Continuity Buzzer | | √ | | Low-Pass Filtering | | √ | | Inrush Current | AC Current | √ | | Relative Function | | √ | | Data Hold | | √ | | MAX | | √ | | MAX/MIN | | √ | | LCD Backlight | | √ | | Analogue Bar Analogue | | 66 | | Full Icon Display | | √ | | Auto Power Off | | √ | | Low Battery Indication | | √ | | Input Impedance | ≥10MΩ | √ | | I-OUT Function | | √ | | General Characteristics | | Power | 9V Alkaline Battery(6LF22) | | LCD Size | 43mm×30 mm | | Product Color | Red and Grey | | Product Net Weight | 725g | | Product Size | 298mm × 100mm × 48mm | | Standard Accessaries | Test Leads, Output Cable,Tool Box | | Standard Individual Packing | Gift box, English Manual | | Standard Quantity Per Carton | 5PCs | | Standard Carton Measurement | 510mm×375mm×320mm | | Standard Carton Gross Weight | 12Kg |
|
