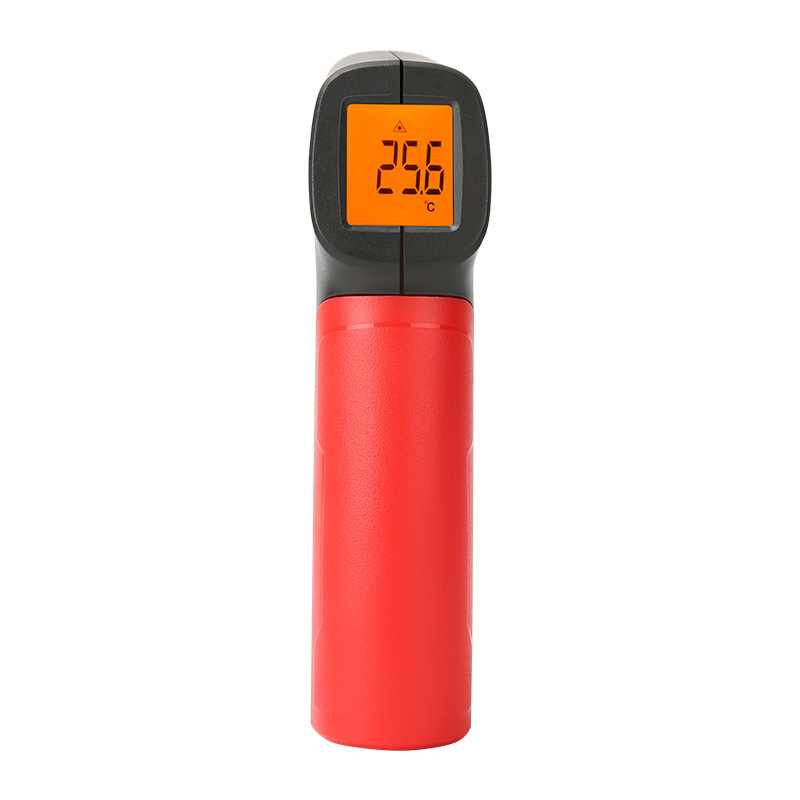

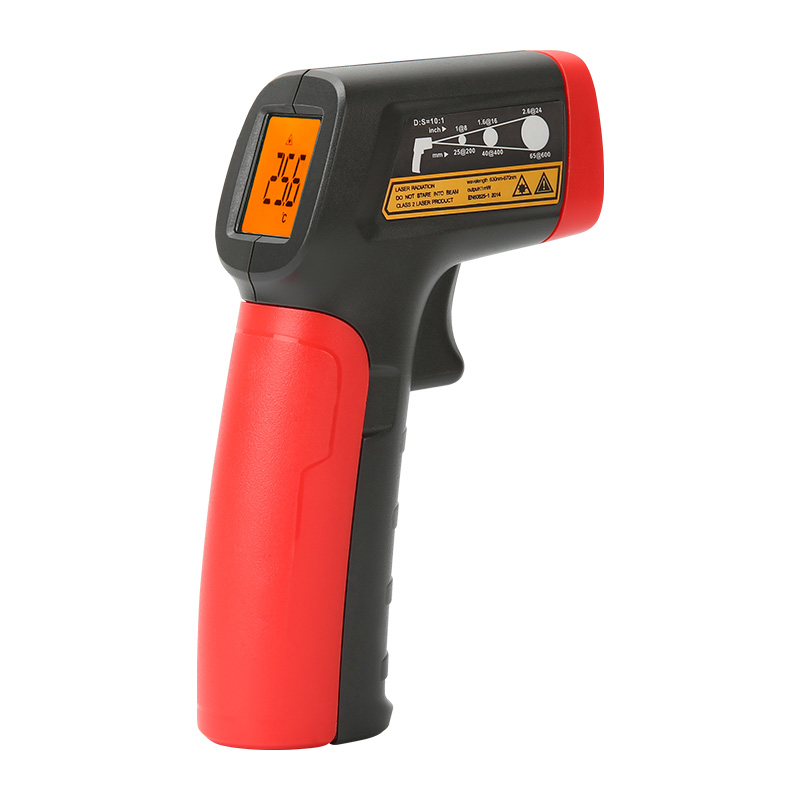

Seri UT300 adalah termometer inframerah yang ekonomis. Desainnya yang ringkas dan sederhana memudahkan pengguna untuk membawa dan mengoperasikannya. Dirancang dengan akurasi tinggi, kemampuan pengulangan tinggi, respons cepat, jarak pengukuran jauh, dan lebih banyak fitur, UT300A+ cocok untuk mengukur suhu permukaan benda yang sulit dijangkau atau berbahaya.
FITUR UNI-T UT300A+
- Pengoperasian satu tombol yang sederhana
- Penyimpanan data
- Lampu latar
- Rasio D:S: 10:1 (UT300A+); 12:1 (UT300S)
- Kisaran suhu: -20℃～400℃ (UT300A+); -32℃～400℃ (UT300S)
SPESIFIKASI UNI-T UT300A+
| Specifications | UT300A+ | UT300S |
| Temperature range | -20℃~400℃ | -32°C～400°C |
| -4℉~752℉ | -25.6°F～752°F | |
| Accuracy | >0℃: ±2.0℃ or ±2%; ≤0℃: ±(2.0℃+0.1℃/℃) | ±2°C or ±2% |
| >32℉: ±4.0℉ or ±2%; ≤32℉: ±(4.0℉+0.1℉/℉) | ||
| Repeatability | 1℃ or 1.0% (2℉ or 1.0%) | ±0.5°C or ±0.5% |
| D:S ratio | 10:1 | 12:1 |
| Response time | ≤500ms (95% of reading) | 500ms |
| Emissivity | 0.95 | 0.10~1.00 Adjustable |
| Spectral response | 5.5um~14um | 8μm～14μm |
| Laser power | < 1mW | ＜1mW |
| Features | ||
| Auto power off | 8s | 8s |
| Low battery indication | √ | √ |
| Data hold | √ | √ |
| ℃/℉ selection | √ | √ |
| Backlight | √ | √ |
| Laser | √ | √ |
| Operating temperature | 0℃~50℃ (32℉~122℉) | |
| Storage temperature | -20℃~60℃ (-4℉~140℉) | |
| Operating humidity | <90% RH (non-condensing) | |
| Drop test | 1m | |
| General Characteristics | ||
| Power | 1.5V battery (LR03) x 2 | 9V Battery (6F22) |
| Display | 20mm x 24mm | 22mm X 22mm |
| Product color | Red and grey | |
| Product net weight | 146g | 185g |
| Product size | 135mm x 94mm x 36.5mm | 153mm X 108mm X40mm |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 20pcs | 48pcs |
| Standard carton measurement | 430mm x 265mm x 300mm | 590×530×360mm (0.11 CBM Per Standard Carton) |
| Standard carton gross weight | 6.97kg | 14.8kg |
