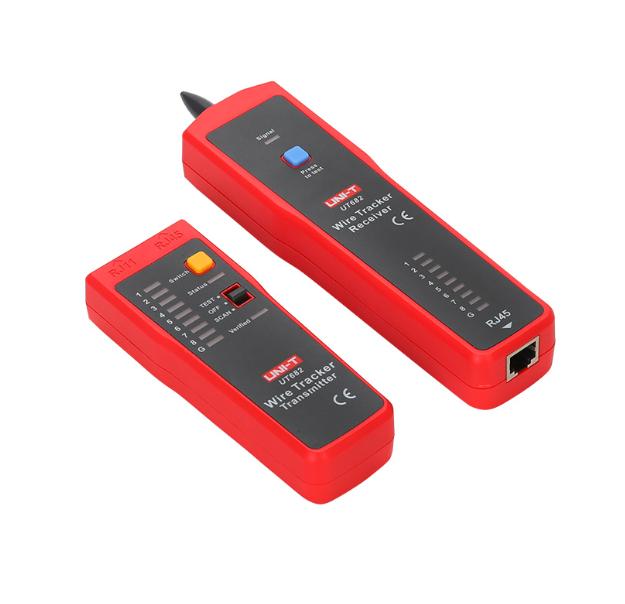

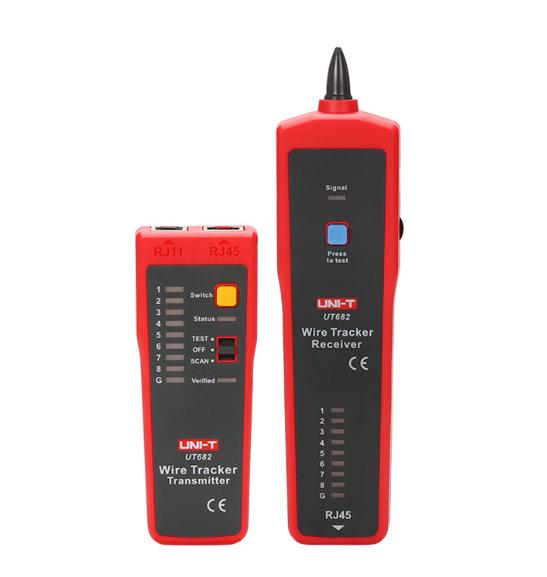

UNI-T UT682 Wire Tracker Tone and Probe adalah alat pelacak kabel yang terdiri dari transmitter dan receiver, digunakan untuk mendeteksi dan mengikuti jalur kabel seperti LAN, telepon, koaksial, dan kabel listrik tanpa harus membuka isolasi kabel.

Alat ini juga berfungsi untuk membantu teknisi dalam mencari kabel putus, short circuit, serta mengecek urutan wiring dengan cepat dan praktis, sehingga sangat cocok untuk pekerjaan instalasi dan troubleshooting jaringan serta instalasi listrik.

FITUR UNI-T UT682 Wire

Sistem tone generator & probe receiver untuk pelacakan kabel
Mampu melacak berbagai kabel: LAN, telepon, koaksial, dan kabel listrik
Fungsi untuk mendeteksi kabel putus (open circuit) dan short circuit
Membantu identifikasi urutan kabel (wire mapping/checking)
Pengaturan sensitivitas probe untuk akurasi pelacakan
Indikator suara (audio tone) untuk memudahkan tracking
Desain portabel untuk penggunaan lapangan
Cocok untuk troubleshooting instalasi jaringan dan listrik

SPESIFIKASI UNI-T UT682 Wire

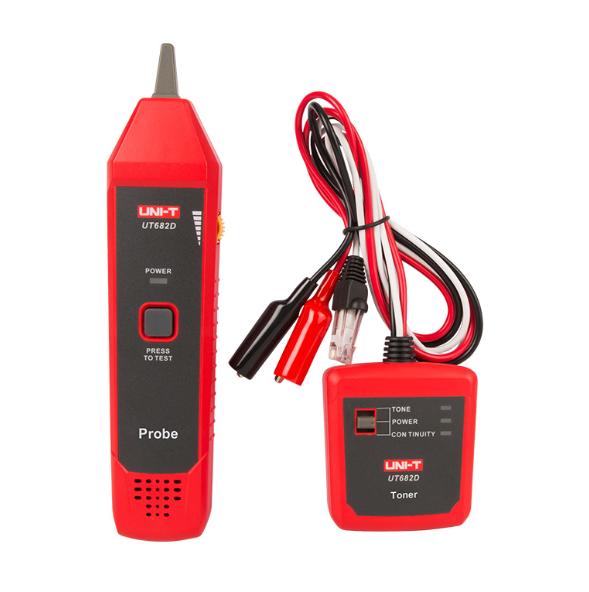

Specifications	Range		UT682	UT682D
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire	Telephone line\twisted- pair\electric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m	≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for telelphone lines	DCV function, range: ±(5V~52V)	√	√
	Telephone lines and LAN cables distinction	Jacks distinction	√	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak	8V DC with a new battery
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√	√
	Max transmitter working current		25mA
	Headphone jack for receiver		√
	Receiver power supply	9V battery	√	√
	Max receiver standby current	~10mA	√	√
	Max receiver operating current	<40mA (AC, RMS)	√	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input voltage protection			52V DC	60V DC
Operating environment	Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color	Red and grey
Product net weight	UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size	UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories	9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing	Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual
Standard quantity per carton	UT682: 24pcs; UT682D: 20pcs
Standard carton measurement	UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
Standard carton gross weight	UT682: 12.3kg; UT682D: 7.5kg
