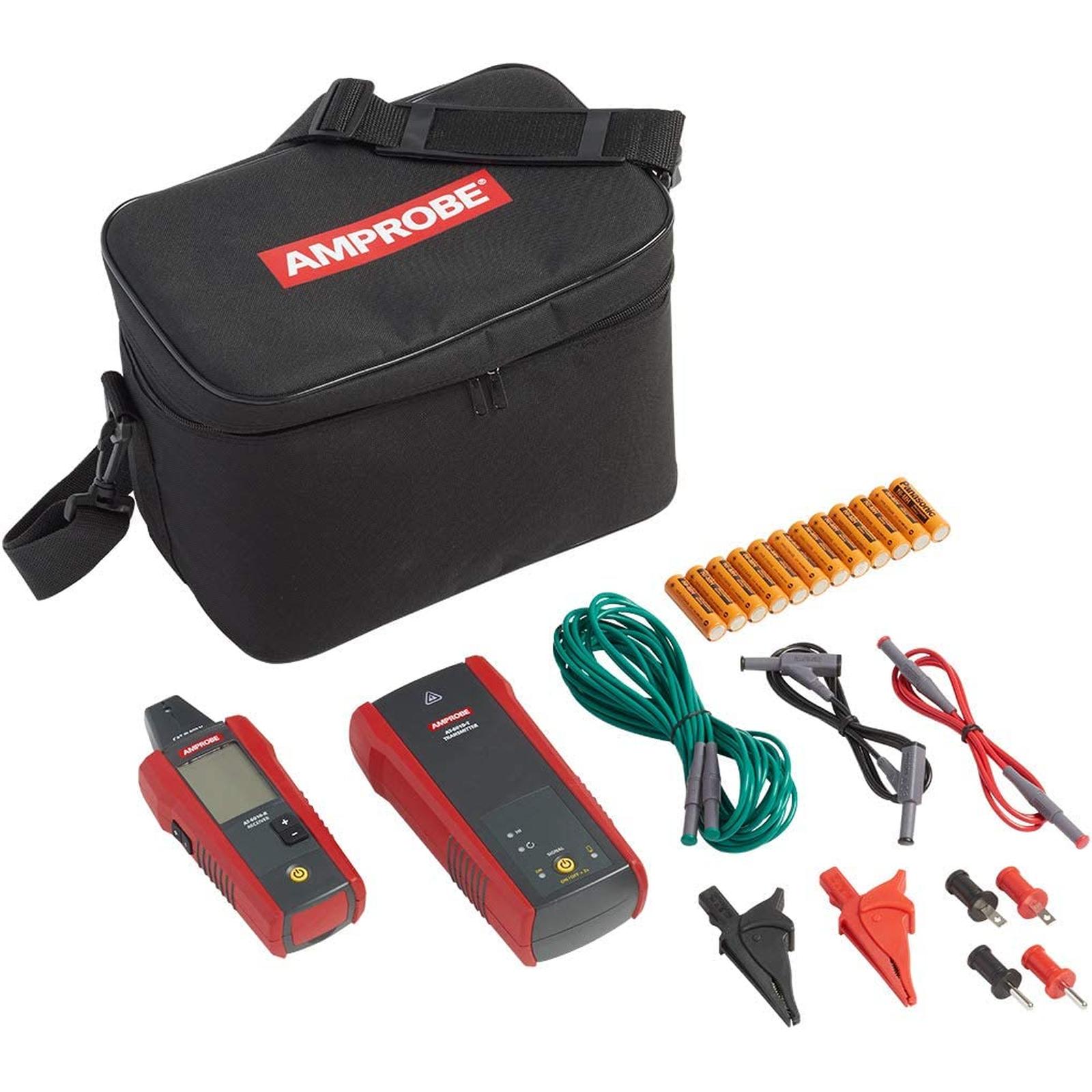

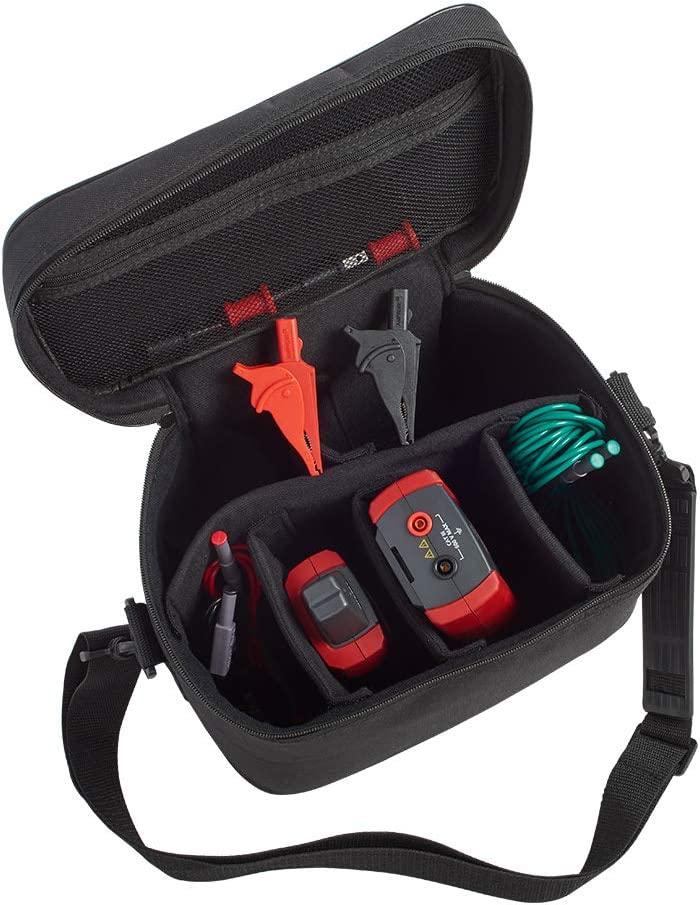

Amprobe AT-6010 adalah alat pelacak kabel (wire tracer) profesional yang digunakan untuk menemukan dan mengikuti jalur kabel listrik di dinding, plafon, lantai, atau panel tanpa perlu membongkar instalasi. Alat ini bekerja dengan sistem transmitter dan receiver untuk mengirim dan menangkap sinyal pada kabel, sehingga teknisi bisa dengan mudah mengidentifikasi jalur kabel, breaker, sekering, serta lokasi gangguan seperti kabel putus atau korsleting.
Perangkat ini mendukung pengukuran pada sistem listrik hingga 600 V AC/DC, baik pada kondisi bertegangan maupun tidak bertegangan, sehingga sangat aman dan fleksibel untuk pekerjaan instalasi maupun troubleshooting listrik industri dan bangunan.
FITUR Amprobe AT-6010
- Melacak kabel di dinding, plafon, dan lantai
- Menemukan breaker, fuse, short, dan open circuit
- Bekerja pada sistem 0–600 V AC/DC

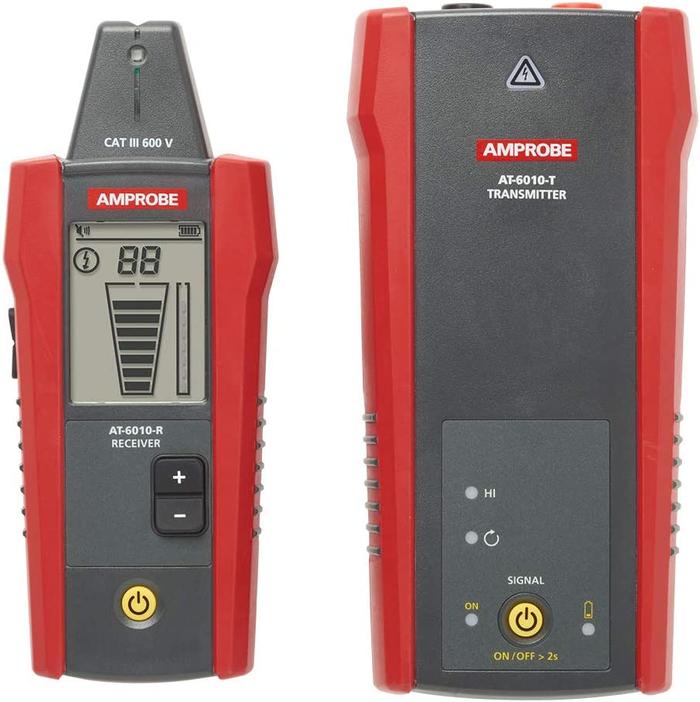

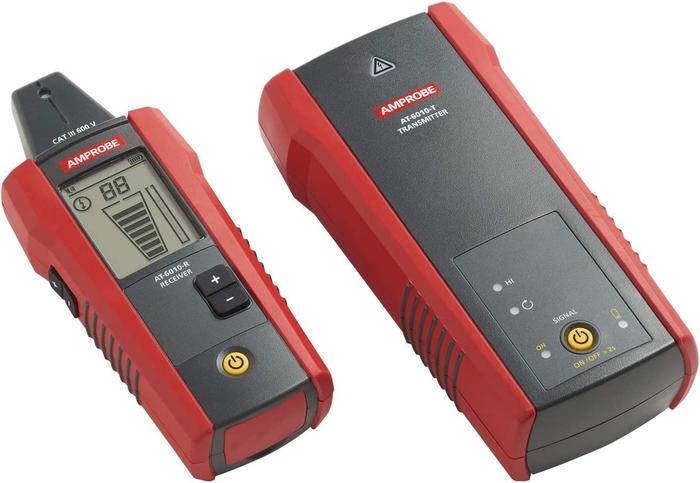

- Sistem transmitter–receiver untuk tracing kabel
- LCD display 2,5 inci dengan indikator sinyal
- Mode operasi untuk kabel aktif dan tidak aktif
- Cocok untuk teknisi listrik, maintenance, dan instalasi industri
SPESIFIKASI Amprobe AT-6010
| Features | AT-6010-R Receiver | AT-6010-T Transmitter |
| Measurement category | CAT III 600 V | |
| Operating voltage/current | 0 to 600 V | |
| Operating frequency | Energized: 6.25 kHz | |
| Hazardous voltage detection | N/A | > 30 V AC/DC |
| Signal indications | Numeric bar graph display and audible beep | LEDs |
| Response time | Tip Sensor (Energized/De-energized): 500 ms Battery voltage monitoring: 5 sec | Line voltage monitoring: 1 sec Battery voltage monitoring: 5 sec |
| Current output of signal (typical) | N/A | Energized circuit: HI mode: 60 mA RMS De-energized circuit: HI mode: 130 mA RMS Loop mode: 160 mA RMS |
| Signal voltage output (nominal) | N/A | De-energized circuit: HIGH: 33 V RMS, 140 Vp-p With CT-400: Loop model: 31 V RMS, 120 Vp-p |
| Range detection (open air) | Tip Sensor (Energized): Max distance via air: up to 20 ft (6.1 m) Pinpointing: approx. 1.97 in (5 cm) Tip Sensor (De-energized): Max distance via air: up to 14.7 ft (4.5 m) Pinpointing: approx. 1.97 in (5 cm) | N/A |
| Display size | LCD 2.5 in (6.35 cm) | N/A |
| Display dimensions (W x H) | 1.45 x 1.93 in (36.72 x 48.96 mm) | N/A |
| Display type | Segment LCD | LEDs |
| Display color | Black and white | Operating mode LEDs: red Battery status LED: red |
| Booting time | < 3 sec | < 2 sec |
| Backlight | Yes | N/A |
| Operating temperature | -4 °F to 122 °F (-20 °C to 50 °C) | |
| Operating humidity | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) | |
| Storage temperature and humidity | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH | |
| Operating altitude | 0 to 6561 ft (2000 m) | |
| Transient protection | N/A | 6.00 kV (1.2/50μS surge) |
| Pollution degree | 2 | |
| IP rating | IP 52 | IP 40 |
| Drop test | 3.28 ft (1 m) | |
| Power supply | 4 x AA (alkaline) | 8 x AA (alkaline) |
| Power consumption (typical) | 70 mA | Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA |
| Battery life | Approx. 25 h | Hi mode: approx. 25 h Loop mode: approx. 18 h |
| Low battery indication | Yes | |
| Fuse | N/A | 1.6 A, 700 V, fast-acting, Ø 6x32mm |
| Dimensions (L x W x H) | Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm) | Approx. 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm) |
| Weight | Approx. 0.6 lb (0.27 kg) | Approx. 1.25 lb (0.57 kg) |
| Certifications | ||
