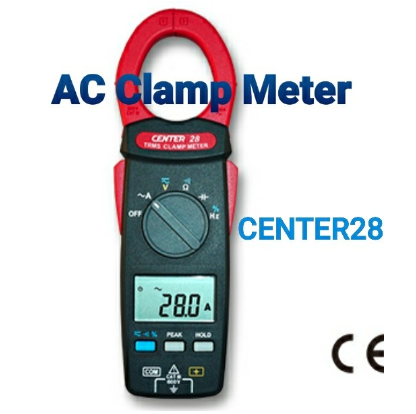

FITUR CENTER 28
- Ukuran Ramping dan Ringan
- Pengukuran True RMS
- Mengukur Arus : AC 1000A
- Fungsi Penyimpanan Data
- Fungsi Tahan Puncak 1ms
- Fungsi Kapasitor
- Mengukur Frekuensi Dari Clamp & Test Terminal Saat Ini
- Mati Otomatis
- Autoranging
SPESIFIKASI CENTER 28
- ACA:
- Range: 600A/1000
- Resolution: A0.1A/1A
- Accuracy:
- 50Hz~60Hz: ±1.9%rdg±5dgts
- 45Hz~500Hz: ±2.5%rdg ±5dgts
- ACV
- Range: 6V/60V/600V
- Resolution: 0.001V/0.01V/0.1V
- Accuracy: ±1.2%rdg ±5dgts
- DCV
- Range: 6V/60V/600V
- Resolution: 0.001V/0.01V/0.1V
- Accuracy: ±1%rdg ±2dgts
- Ohms:
- Range: 600Ω/6KΩ/60KΩ/600KΩ
- Resolution: 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ
- Accuracy: ±1%rdg ±2dgts
- Capacitance:
- Range: 6uF/60uF/600uF
- Resolution: 0.001uF/0.01uF/0.1uF
- Accuracy:;±3%rdg ±10dgts
- Hz(A):
- Range: 600Hz/6KHz
- Resolution: 0.1Hz/0.001KHz
- Accuracy: ±0.2%rdg ±2dgts
- Hz(V):
- Range: 600Hz/6KHz/60KHz
- Resolution: 0.1Hz/0.001KHz/0.01KHz
- Accuracy: ±0.2%rdg ±2dgts
- Duty Cycle: (%)1~99%0.1%±0.5%
- Display: 4 digital Liquid display, maximum reading 6000Sampling Rate: 2 times/sec
- Battery: CR2032(3VDC) battery x 1
- Dimensions: 207x 66x 26 mm
- Weight: 153g
- Maximum Jaw Opening: ø 40 mm
