Fluke Networks LIQ-KIT-IE adalah alat tester profesional yang dirancang untuk mengukur, memverifikasi, dan mendiagnosis performa kabel serta jaringan Industrial Ethernet. Perangkat ini mampu menguji kabel hingga kecepatan 10 Gigabit (10GBASE-T) serta mendeteksi berbagai masalah jaringan tanpa memerlukan alat tambahan.
Alat ini tidak hanya menguji kabel (UTP/STP), tetapi juga melakukan diagnostik jaringan aktif, seperti identifikasi switch (nama, IP, port, VLAN), pengujian konektivitas (ping), serta analisis daya PoE hingga Class 8.
FITUR Fluke Nerworks LIQ-KIT-IE
- Validasi performa kabel hingga 10Gb (10GBASE-T)
Menguji kemampuan kabel berdasarkan frekuensi untuk memastikan performa jaringan. - Diagnostik jaringan aktif (switch & port)
Menampilkan informasi seperti nama switch, IP address, MAC address, port, VLAN, dan kecepatan jaringan. - Pengujian konektivitas jaringan (Ping test)
Menguji koneksi TCP/IP, gateway, DNS, dan kualitas jaringan secara real-time. - Analisis PoE (Power over Ethernet)
Mendeteksi kelas PoE (0–8), daya tersedia, pasangan kabel, dan melakukan load test hingga ±90W. - Pengukuran panjang kabel & lokasi gangguan
Menentukan panjang kabel hingga ±305 meter dan mendeteksi titik kerusakan (open/short). - Wiremap lengkap (pemetaan kabel)
Mengidentifikasi kesalahan wiring seperti split pair, miswire, atau crossover. - Toner digital & analog (cable tracing)
Memudahkan pelacakan kabel menggunakan probe (IntelliTone). - Port blink (identifikasi port switch)
Menyalakan LED port pada switch untuk menemukan koneksi dengan cepat. - Dukungan Industrial Ethernet
Kompatibel dengan konektor industri seperti RJ45, M12X, M12D, dan M8D serta protokol seperti PROFINET dan EtherNet/IP. - Layar touchscreen warna (user-friendly)
Tampilan intuitif dengan kontrol sentuh untuk kemudahan penggunaan di lapangan. - Penyimpanan & reporting hasil (LinkWare PC)
Bisa menyimpan hingga ±1000 hasil test dan membuat laporan profesional.
SPESIFIKASI Fluke Nerworks LIQ-KIT-IE
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish |
| Weight | 1 lbs 6 oz (624g) |
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh; Life: 8 hours typical; Charge time: 4.5 hours; Charging temperature range: 0 °C to 40 °C |
| Power Adapter | Input: 100 to 240 V ac ±10%, 50/60Hz; Output: 15 V dc, 2 A maximum; Class II |
| Host Interface | USB type C |

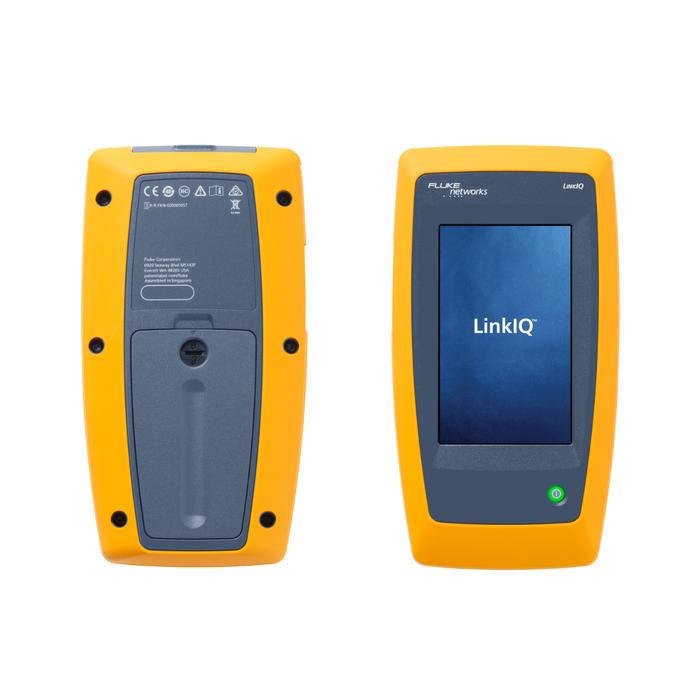

| Display | 800 x 480 pixels color capacitive multi-touch |
| Dimensions | 22 cm x 11 cm (8.5 in x 4.5 in) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -10 °C to 60 °C (-14 °F to 140 °F) |
| Operating Relative Humidity | 0 % to 90 %, 0 °C to 35 °C 0 % to 70 %, 35 °C to 45 °C |
| Operating Altitude | 4,000 m 3,200 m with ac adapter |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Drop | 1 m drop, 6 sides |
Active Network Diagnostics
| Feature | Description |
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP |
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost |

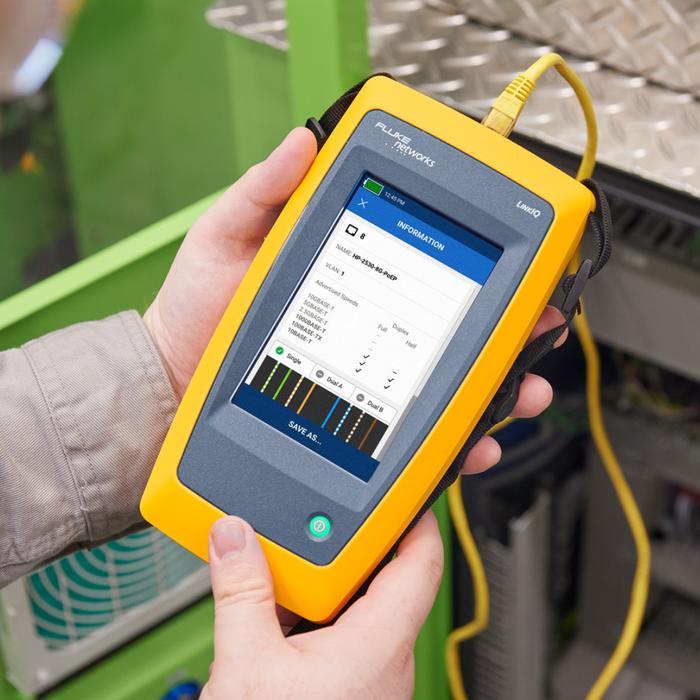

| Nearest Device Diagnostics (If available through diagnostic protocols) | Switch Name / IP + MAC Address, Port Number, VLAN Name, Advertised Data Rates, Advertised Duplex |
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP |
| Power Over Ethernet Diagnostics | Advertised Power Class (0-8), Advertised Available Power, Powered Pairs, Diagnostics for both Single and Dual signatures |
| Power Over Ethernet Measurements | Loaded Voltage (V), Loaded Power (W) |
| Port Blink | Blink the light of the connected port |
Cable Test Specifications
| Feature | Description |

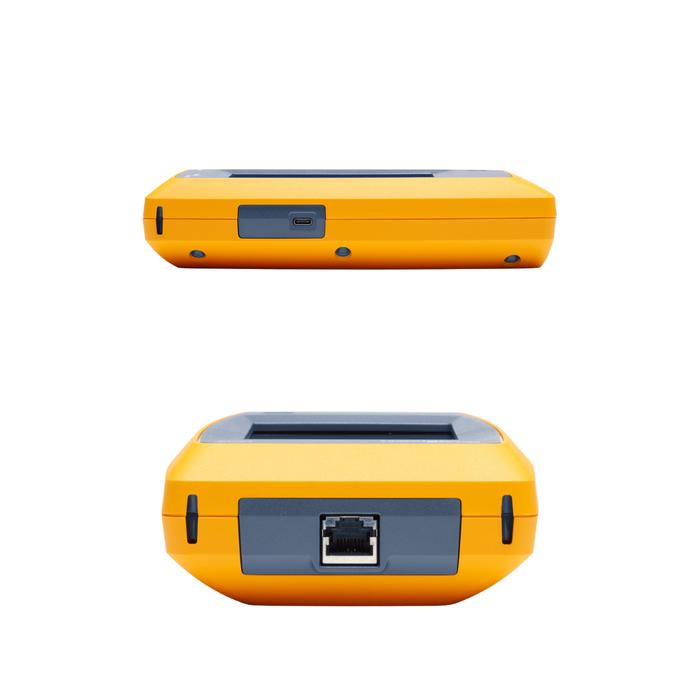

| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs |
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m |
| Cable Types | Balanced twisted-pair cabling; Unshielded twisted-pair; Screened twisted-pair; 2-pair and/or 4-pair; Adapter cables for M8D, M12D, M12X |
| Wire Map-Only Tests | Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analog probes. |

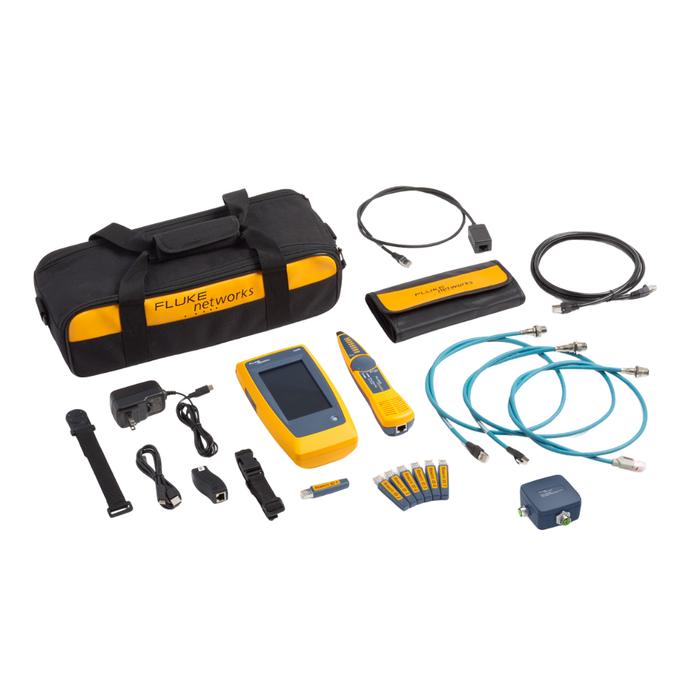

| Remote ID Locators | Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets. |
Wi-Fi Test Specifications (LIQ Duo Models Only)
| Feature | Description |
| Supported Wireless Standards | 802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E). Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard’s presence can be decoded in a supported beacon. |
| Frequencies Supported | Frequencies of channels received and transmitted (where allowed by country regulations): 2.4 GHz band: 2.402 to 2.482 GHz (channel 1 to channel 13); 5 GHz band: 5.170 to 5.330 GHz, 5.490 to 5.730 GHz, 5.735 to 5.835 GHz (channel 36 to channel 165); 6 GHz band: 5.945 to 7.125 GHz (channel 1 to channel 233). NOTE: The tester transmits only on the frequencies allowed in the country where it is sold. |
| Country certifications | AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union (Completed or in process. Contact your local Fluke representative for details.) |
| Network Tests | Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported |
| Access Point Tests | Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates |
| Channel Tests | Utilization, Number / signal strength of access points, overlap |
