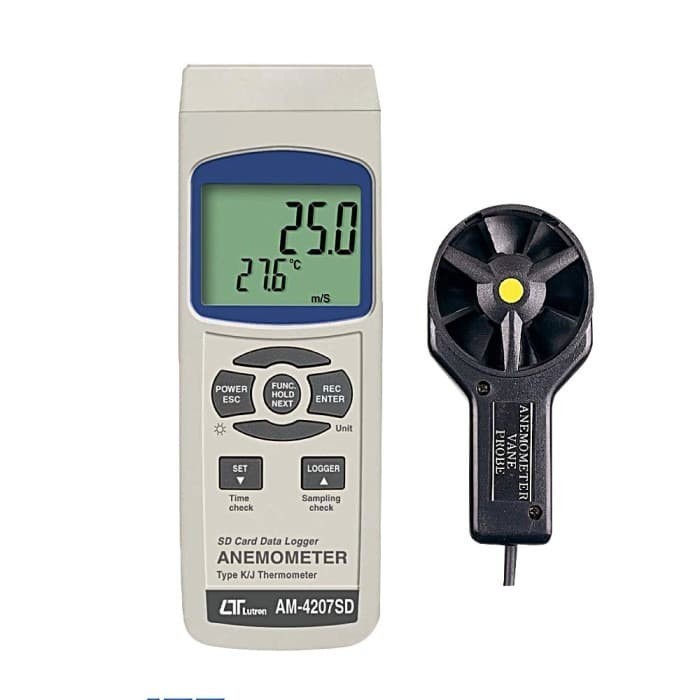

LUTRON AM-4207SD adalah anemometer dengan probe eksternal, yang dapat mengukur suhu dalam kisaran -100 – 1300 °C dengan termokopel tipe K. Perangkat ini mampu menyimpan hasil pengukuran ke kartu SD dan dapat berkomunikasi melalui RS232 atau USB.
FITUR Lutron AM-4207SD
- Unit yang dapat diganti: m/s, ft/min, km/h, knot, mph; °C, °F
- Fungsi Penyimpanan Data
- Antarmuka komunikasi: RS232, USB
- Dimensi: 203x76x38 mm
- Berat: 515 g (termasuk baterai)
- Didukung oleh 6 baterai 1,5V atau adaptor daya 9V (tidak termasuk)
SPESIFIKASI Lutron AM-4207SD
- Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
- Air temperature ( ℃, ℉ )
- Type K, Type J thermocouple thermometer.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder
- ,sampling time set from 1 second to 3600 seconds.
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the
SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves. - SD card capacity : 1 GB to 16 GB.
- Air velocity
- Measurement Range Resolution Accuracy
- m/S 0.4 – 25.0 m/s 0.1 m/S ± ( 2%+0.2 m/S)
- Km/h 1.4 – 90.0 km/h 0.1 Km/h ± ( 2%+0.8 Km/h)
- mph ( Mile/h ) 0.9 – 55.9 mile/h 0.1 mph ± ( 2%+0.4 mph)
- Knots 0.8 – 48.6 knots 0.1 Knots ± ( 2%+0.4 Knots)
- FPM ( Ft/min ) 80 – 4930 ft/min 1 FPM ± ( 2%+40 FPM)
- Air temperature
- Measuring Range 0 ℃ to 50 ℃/32 ℉ to 122 ℉
- Resolution 0.1 ℃/0.1 ℉ Accuracy ± 0.8 ℃/1.5 ℉
- Type K/J thermometer
- Sensor Type Resolution Range Accuracy
- Type K 0.1 ℃ -50.0 to 1300.0 ℃ ± ( 0.4 % + 0.5 ℃ )
-50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
0.1 ℉ -58.0 to 2372.0 ℉ ± ( 0.4 % + 1 ℉ )
-58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
Type J 0.1 ℃ -50.0 to 1200.0 ℃ ± ( 0.4 % + 0.5 ℃ )
-50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
0.1 ℉ -58.0 to 2192.0 ℉ ± ( 0.4 % + 1 ℉ )
-58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
