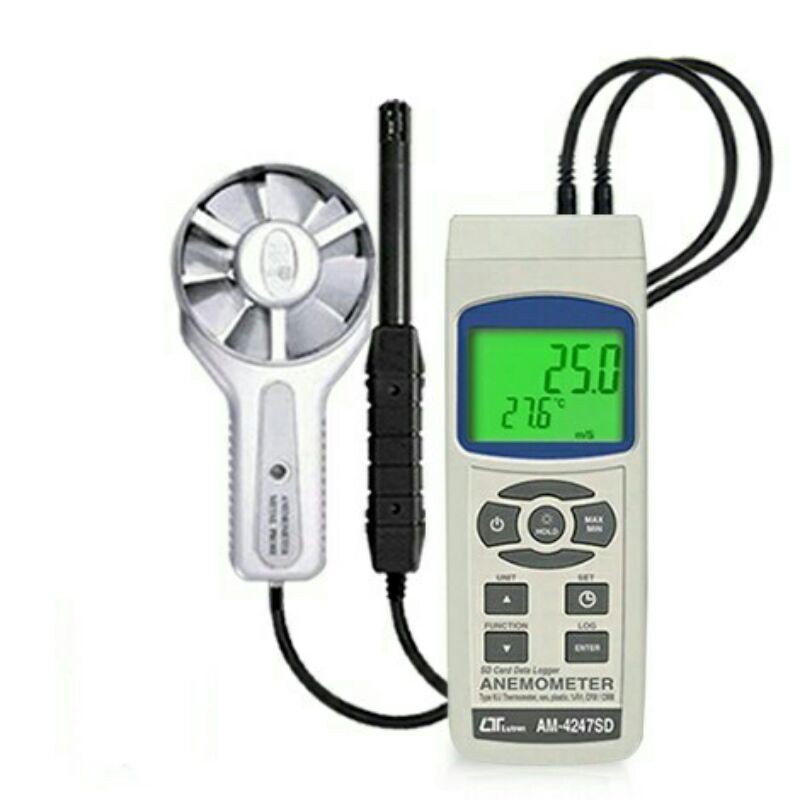

Lutron AM-4247SD Anemometer Metal Vane

FITUR Lutron AM-4247SD

• Dua probe disertakan: Anemometer probe dan Humidity/Temp. menguji.
• 3 in 1: Anemometer, Kelembaban/Suhu. meteran, termometer tipe J/K.
• Kecepatan udara : m/S, Ft/min, Km/h, Knots, Mile/h,
• Temperatur udara
• Aliran udara: CMM, CFM.
• Termometer termokopel tipe K, tipe J.
• Kelembaban/%RH : 10 hingga 95% RH.
• Titik embun. Suhu bola basah..
• Datalogger kartu memori SD waktu nyata
• Datalogger manual tersedia

SPESIFIKASI Lutron AM-4247SD

• Air velocity
• Measurement Range Resolution Accuracy
• m/S 0.4 – 35.0 m/s 0.1 m/S ± ( 2%+0.2 m/S)
• Km/h 1.4 – 126.0 km/h 0.1 Km/h ± ( 2%+0.8 Km/h)
• mph ( Mile/h ) 0.9 – 78.3 mph 0.1 mph ± ( 2%+0.4 mph)
• Knots 0.8 – 68.0 knots 0.1 Knots ± ( 2%+0.4 Knots)
• FPM ( Ft/min ) 79 – 6890 ft/min 1 FPM ± ( 2%+40 FPM)
• Air temperature
• Measuring Range 0 ℃ to 80 ℃
• Resolution 0.1 ℃
• Accuracy 0.8 ℃
• Air flow
• Measurement Range Resolution
• CMM ( m^3/min. ) 0 to 63,000 CMM 0.001 to 1 CMM
• CFM ( ft^3/min. ) 0 to 2,224,900 CFM 0.001 to 100 CFM
• Measurement Area
• CMM ( m^3/min. ) 0.001 to 30.000 m^2
• CFM ( ft^3/min. ) 0.01 to 322.93 ft^2
• Humidity Resolution 0.1 % R.H.
• Accuracy ≧70% RH :
• ± (3% reading + 1% RH).< 70% RH :± 3% RH.
• Range 0 ℃ to 50 ℃,32 ℉ to 122 ℉.
• Temperature Resolution 0.1 degree
• Accuracy ℃ ± 0.8 ℃.
• ℉ ± 1.5 ℉.
• Dew Point ( Humidity )
• ℃ Range -25.3 ℃ to 48.9 ℃
• Resolution 0.1 ℃
• ℉ Range -13.5 ℉ to 120.1 ℉.
• Resolution 0.1 ℉.
• * The Dew Point accuracy is sum accuracy value of
• Humidity & Temperature measurement..
• Wet bulb ( Humidity )
• ℃ Range -21.6 ℃ to 50.0 ℃
• Resolution 0.1 ℃
• ℉ Range -6.9 ℉ to 122.0 ℉.
• Resolution 0.1 ℉.
• Type K/J thermometer

PAKET SUDAH TERMASUK:

• Instruction manual 1 PC
• Anemometer probe1 PC
• Humidity probe1 PC
• Hard carrying case ( CA-06 )1 PC
