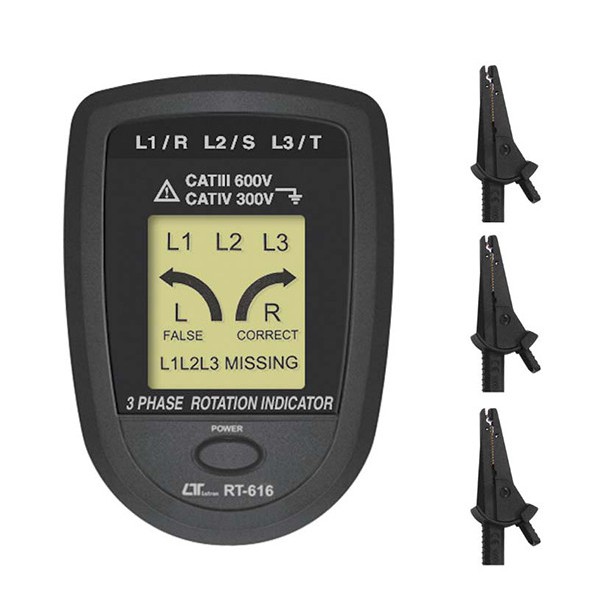

Lutron RT-616 Rotation Tester 3 Phase

FITUR Lutron RT-616

• Uji rotasi elektronik (bukan mekanis), keandalan tinggi.
• Layar LCD, pengoperasian yang mudah dan sederhana.
• Tegangan input sinyal: 100V AC hingga 660V AC maks.

SPESIFIKASI Lutron RT-616

• Signal Input 100V AC up to 660 AC maximum,
• Voltage 3 min. limit for over 500V AC.
• Signal Current Consumption Approx. 7 mA per phase.
• Signal Freq Range . 45 to 70 Hz.
• Circuit
• Electronic ( not mechanical).
• Custom one-chip of microprocessor LSI circuit.
• Consumption L1 missing L2 missing
• Operating Temperature 0 to 50 ℃ ( 32 to 122 ℉ ).
• Operating humidity Less than 80% RH.
• Dimension 100 x 50 x 25 mm.
• CLOCWISE –> R …CORRECT
• COUNTER CLOCKWISE <– F … False
• Line is no connection ( Incorrect )

Standard Accessories

• Operational manual 1 PC
• Meter with 3 PCs 40 cm length test lead and banana
• Plug 1 SET
• Alligator clip 3 PC
• DC 9V battery. 006P, MN1604 ( PP3)
