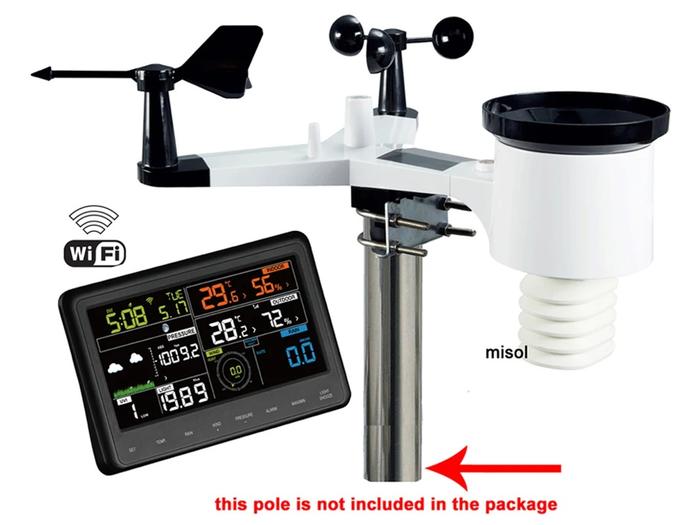

MISOL WH2900 dirancang sebagai sistem pemantauan meteorologi rumahan yang komprehensif — mencakup sensor luar yang menangkap data seperti suhu, kelembapan, curah hujan, kecepatan dan arah angin, serta tekanan udara; dan unit dalam (konsol) yang menampilkan semua data secara real-time, serta dapat tersambung ke internet melalui WiFi untuk unggahan data ke layanan cuaca daring.
Outdoor Sensors Specification
- Wind Sensor:
- Measuring Method: Mechanical
- Wind Speed:
- Range: 0 — 50m/s
- Accuracy: – Resolution: 0.1 m/s
- Wind Direction:
- Range: 0° — 359°
- Temperature Sensor:
- Range: -40°C — 60°C
- Accuracy: ±1°C
- Resolution: 0.1°C
- Humidity Sensor:
- Range: 10 — 99%
- Accuracy: ±5%
- Resolution: 1%
- Light Sensor:
- Light Detection Range: 0 — 200kLux
- Light Detection Accuracy: ±15%
- UV Index Range: 0 — 15
- UV Index Accuracy: ±15%
- Rain Sensor
- Measuring Method: Mechanical
- Range: 0 — 6000 mm
- Accuracy: ±10%
- Resolution:
- Connectivity: Wireless RF
- Radio Frequency: 433MHz
- Transmition Range (Outdoor Sensor to Gateway): Up to 100m (no obstacle)
- Sensor Reporting Interval: 16s
- Power Source: Solar Panel (Built -in) | Battery AA x 3 (Back-up)
- Dimension: Approx. 33 x 30 x 17 cm
- Ceritification: CE

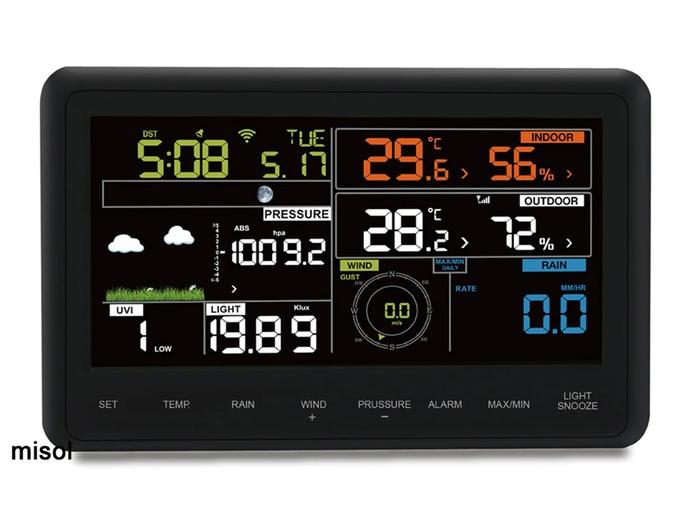

Console (Viewer) Specification
- Temperature Sensor:
- Range: -0°C — 60°C
- Accuracy: ±1°C
- Resolution: 0.1°C
- Humidity Sensor:
- Range: 10 — 99%
- Accuracy: ±5%
- Resolution: 1%
- Barometric Pressure Sensor:
- Range: 700 — 1100 hPa
- Accuracy: ± 3 hPA
- Resolution: 0.1 hPa
- Date and Time Data: Yes
- Wind Speed Data: Yes
- Wind Direction Data: Yes
- Temperature Data: Yes (Indoor and Outdoor)
- Humidity Data: Yes (Indoor and Outdoor)
- Barometric Data: Yes
- Dew Point Data: Yes
- Light Intensity Data: Yes
- UV Index Data: Yes
- Rain Volume Data: Yes
- Forecast Feature: Yes
- Moon Phase: Yes
- Alarm: Yes
- Data Record: Yes
- Wireless Connection: WiFi 2.4 GHz
- Connection to Sensors: Wireless RF 433 MHz
- Display Backlight: Yes (Color Display)
- Display Type: Touch Panel
- Power Source: Battery AA x 3 | Adaptor 5V DC (Included)
- Dimension: Approx. 18.7 x 11.5 x 1.9 cm
