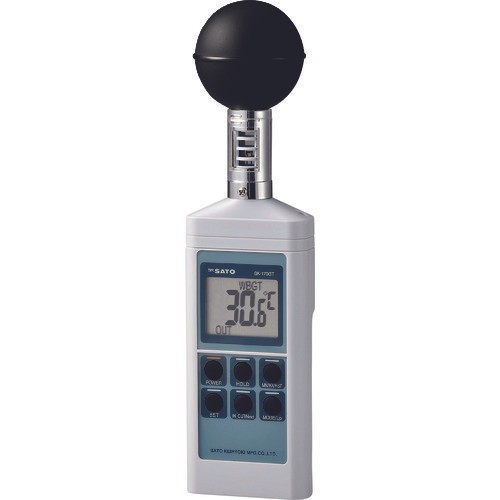

Sato WBGT Heat Stress Monitor Model SK-170GT adalah instrumen praktis yang dapat mengukur suhu, kelembapan, dan suhu bola dunia untuk mengukur indeks WBGT. Hal ini dapat digunakan sebagai panduan untuk mencegah serangan panas dan memperkirakan tekanan panas di lingkungan kerja dan aktivitas.
SPESIFIKASI SATO SK-170GT
| Model | WBGT Heat Stress Monitor (Confirming to JIS standard) | |
| Cat. No. | No.8312-00 SK-170GT | |
| Measuring range | Temperature (TA) | 0.0 to 50.0°C |
| Globe temperature (TG) | 0.0 to 80.0°C | |
| WBGT Index | 0.0 to 50.0°C | |
| Humidity (RH) | 10.0 to 95.0%rh | |
| Accuracy | Temperature (TA) | ±0.6°C |
| Globe temperature (TG) | ±1.2°C (20.0 to 60.0°C) ±2.0°C (at other than above) | |
| WBGT Index | ±2.0°C | |
| Humidity (RH) | ±3.0%rh (30 to 90%rh, at 20 to 40°C) ±5.0%rh (other than above range) | |
| Resolution | Temp, Globe temp, WBGT Index | 0.1°C |
| Humidity | 0.1%rh | |
| Sampling time | Approx. 2 sec. | |
| Alarm setting | Settable between WBGT20.0 to 49.9°C with 0.1°C step (Alarm cannot be released) | |
| Wind speed range setting | Settable between 0.1 to 3.0m/s with 0.1m/s step | |
| Realtime communication | RS-232C communication (RS-232C cable is an option) | |
| Functions | WBGT Index indoor and outdoor switch Auto Power-off (about 20 min.)(Auto power-off function can be released) MAX/MIN value display, HOLD function | |
| Operation ambient | 0 to 50°C, lower than 95%rh | |
| Storage ambient | -10 to 50°C (no condensing) | |
| Power requirements | 9V 6F22(006) battery x 1 pc. | |
| Battery life | Approx. 600 hours in continuous use (without use of alarm) | |
| Sound level | Approx. 75dB | |
| Dimensions | Main body: approx. (W)71 × (H)275 × (D)30mm * (D: without globe) Globe: 60mm dia. | |
| Weight | Approx. 250g (with a battery) | |
