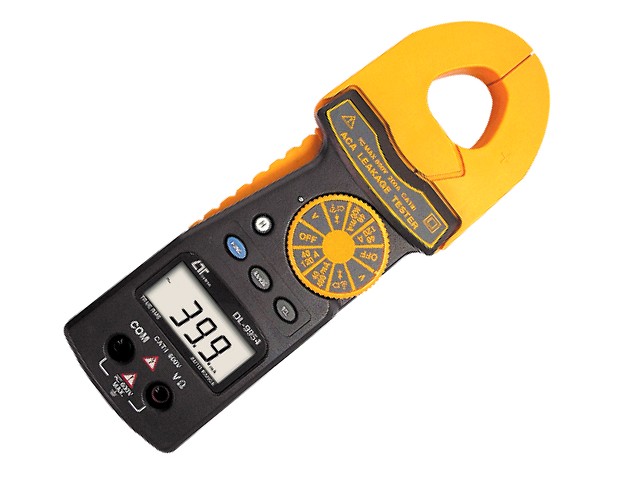

LUTRON DL-9954 AC Ampere Leakage Tester
Precision ACA leakage current, True RMS LUTRON DL-9954 Made in Taiwan
- High precision mA leakage measurement.
- ACA 40 mA x 0.01 mA
- ACA 400 mA x 0.1 mA
- ACA 40 A, 120 A.
- True RMS
- AC voltage, DC voltage.
- Ohms, Diode, Continuity beeper, hold.
- LCD display.
Pengukuran mA AC presisi tinggi, berguna untuk pengukuran arus bocor mA AC.
Ukur AC mA pada konduktor induktif.
Desain memenuhi persyaratan keselamatan IEC 1010 CATIII 600V.
4000 hitungan, jangkauan otomatis dan multi-fungsi.
Pengukuran untuk ACA, ACV, DCV, Ohm, Diode, pager Kontinuitas.
Pembacaan pengukuran RMS sejati untuk fungsi ACV dan ACA.
Dua rentang arus bocor AC: 40 mA, 400 mA .
Dua rentang arus AC: 40 A, 120 A.
Dimensi HWD : 191 x 64,5 x 36,1 mm
Maks. Rahang 22,3 mm (0,88 inci) Diameter Terbuka Ukuran
Function Range Resolution – Accuracy Overload Protection
DCV 400 mV DC only 0.1 mV ± ( 0.5 % + 2d )
ACV 4 V 0.001V DCV :
( true rms ) 40 V 0.01V ± ( 1 % + 2d )
400 V 0.1 V ACV : AC/DC 600V
600 V 1 V ± ( 1.2 % + 5d )
ACA Leakage ( true rms ) 40 mA 0.01mA ± ( 1.5 % + 3d ), 400 mA 0.1mA
0.1 to 400 mA
AC A True RMS
0 to 39.99 A 0.01 A
40 to 100 A 0.1 A ± ( 1.5 % + 3d )
100.0 A to 120 A, 0.1A, ± ( 3 % + 3d )
Function Range Reso- Accuracy Overload
lution Protection
Ohms 400 ohm 0.1 ohm
4 K ohm 1 ohm
40 K ohm 10 ohm ± ( 1 % + 5d )
400 K ohm100 ohm
4 M ohm 1 K ohm ± ( 2 % + 2d ) AC / DC 400 V
40 M ohm 10Kohm ± ( 3.5 % + 5d )
Diode Short/non conductance, good/defect test.
Continuity If measuring resistance is less than 10 ohm,
the beeper will sound .
Accessories Included
- Operation manual
- Test lead (red & black) 1 PC.
- Battery AA = 2 Pcs
