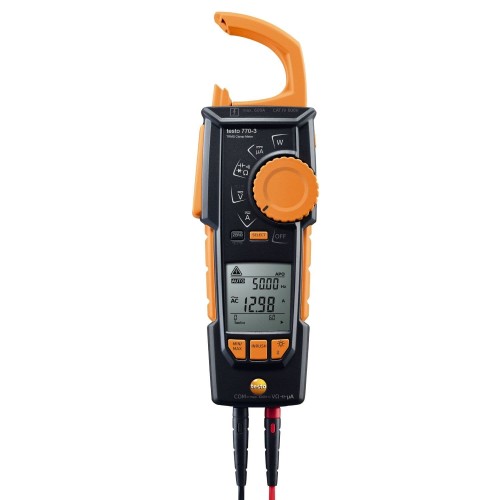

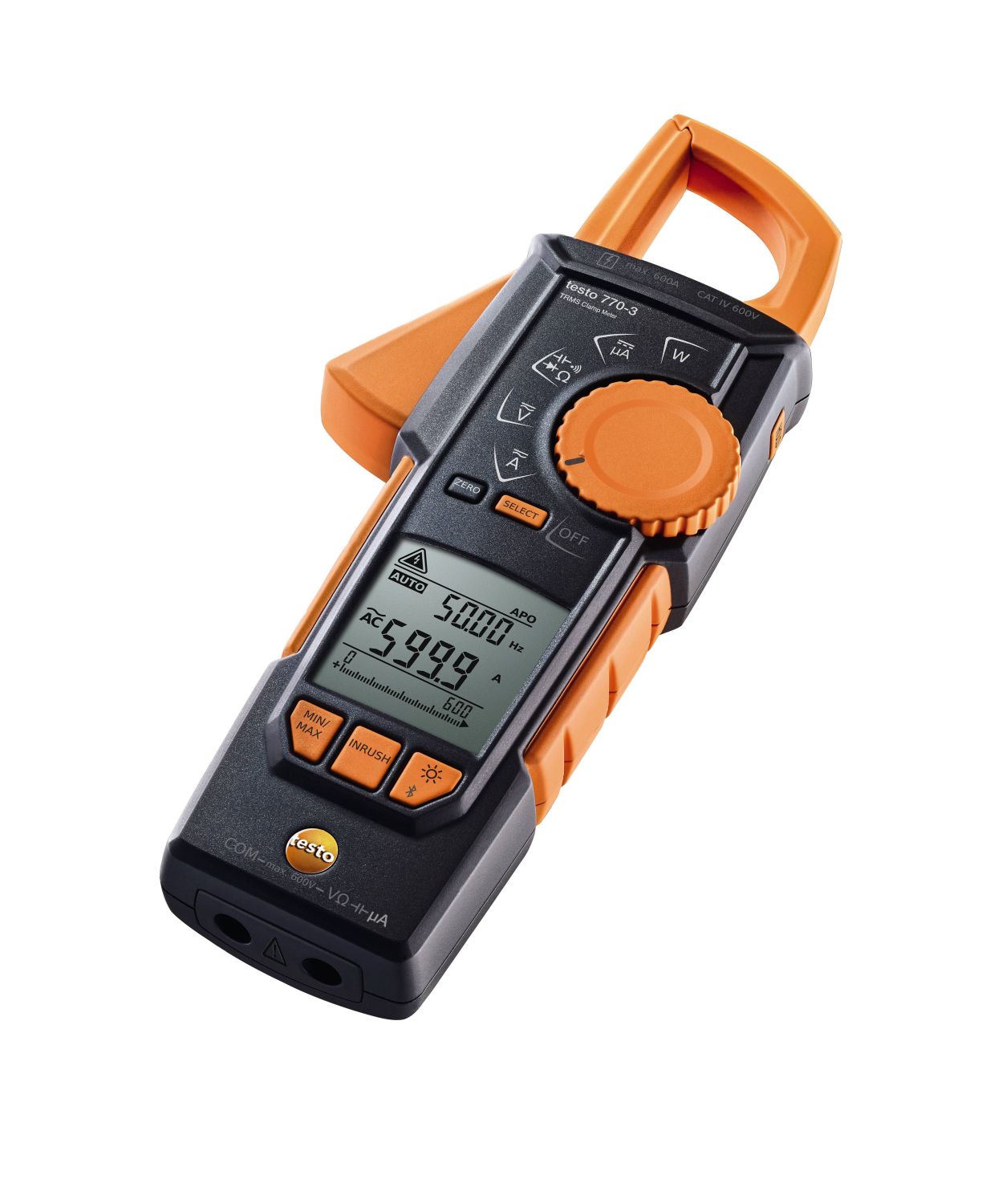

Meteran penjepit testo 770-3 adalah amperemeter penjepit yang ideal untuk tugas pengukuran yang menuntut di lingkungan aplikasi yang ketat. Lengan penjepit yang dapat digerakkan dapat ditarik sepenuhnya ke dalam instrumen. Hal ini memungkinkan instrumen untuk mengambil kabel yang padat dengan cara yang sangat akurat.
FITUR Testo 770-3
- Mudah dioperasikan berkat lengan penjepit yang dapat ditarik sepenuhnya
- Auto AC/DC dan tampilan dua baris yang besar
- Metode TRMS yang ditingkatkan
- Koneksi Bluetooth ke smartphone Anda (dengan testo Smart App)
SPESIFIKASI Testo 770-3
Technical Data
| Temperature – TC Type K (NiCr-Ni) |
|---|
| Measuring range | -20 to +500 °C |
| Accuracy | ±1 °C (0 to +100 °C) |
| Resolution | 0.2 °C |
| DC voltage |
|---|
| Measuring range | 1.0 to 600.0 V |
| Resolution | max. 1 mV |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
| AC voltage |
|---|
| Measuring range | 1.0 mV to 600.0 V |
| Resolution | max. 1 mV |
| Accuracy | ± (1 % of mv + 3 Digit) |
| DC current |
|---|
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
| Resolution | 0.1 (clamp) 0.1 (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (2 % of mv + 5 Digit) (measuring cables) |
| AC current |
|---|
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
| Resolution | 0.1 A (clamp) 0.1 μA (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
| Resistance |
|---|
| Resolution | max. 0.01 Ohm |
| Measuring range | 0.01 to 60.0 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| Capacitance |
|---|
| Resolution | max. 0.01 nF |
| Measuring range | 2 nF to 60.00 mF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Frequency |
|---|
| Resolution | max. 0.1 Hz |
| Measuring range | 0.01 Hz to 9999 kHz |
| Accuracy | ± (1 % of mv + 1 Digit) |
| Active Power |
|---|
| Measuring range | 0.1 W to 600 kW |
| Accuracy | ± (5 % of mv + 5 Digit) |
| Resolution | 0.1 W |
| Reactive Power |
|---|
| Measuring range | 0.1 to 600.0 kvar |
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.1 var |
| Apparent Power |
|---|
| Measuring range | 0.1 VA to 600.0 kVA |
| Accuracy | ± 1 Digit |
| Resolution | 0.1 VA |
| Direct current DC Voltage |
|---|
| Measuring range | 0.1 W to 600.0 kW |
| Accuracy | ± 1 Digit |
| Resolution | max. 0.1 W |
| Power Factor |
|---|
| Measuring range | -1.00 to +1.00 |
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.01 |
| General technical data |
|---|
| Operating humidity | 0 to 80.0 %RH |
| Weight | 378 g |
| Dimensions | 249 x 96 x 43 mm |
| Operating temperature | -10 to +50 °C |
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | Black |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Display type | LCD (Liquid Crystal Display) |
| Display size | 2 lines |
| Interface | 2 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
| Instrument Measurement Functions |
|---|
| Diode test | yes |
| Continuity testing | yes |
| Display ligthing | yes |
| Hold | yes |
| MinMax | yes |
| Power Measurement | yes |
| Temperature measurement with adapter | yes |
| True RMS | yes |
| Inrush current measurement | yes |
| Bluetooth | yes |
| Display (counts) | 6,000 |
| μA current measuring range | yes |
| Autom. measurement parameter detection | yes |
