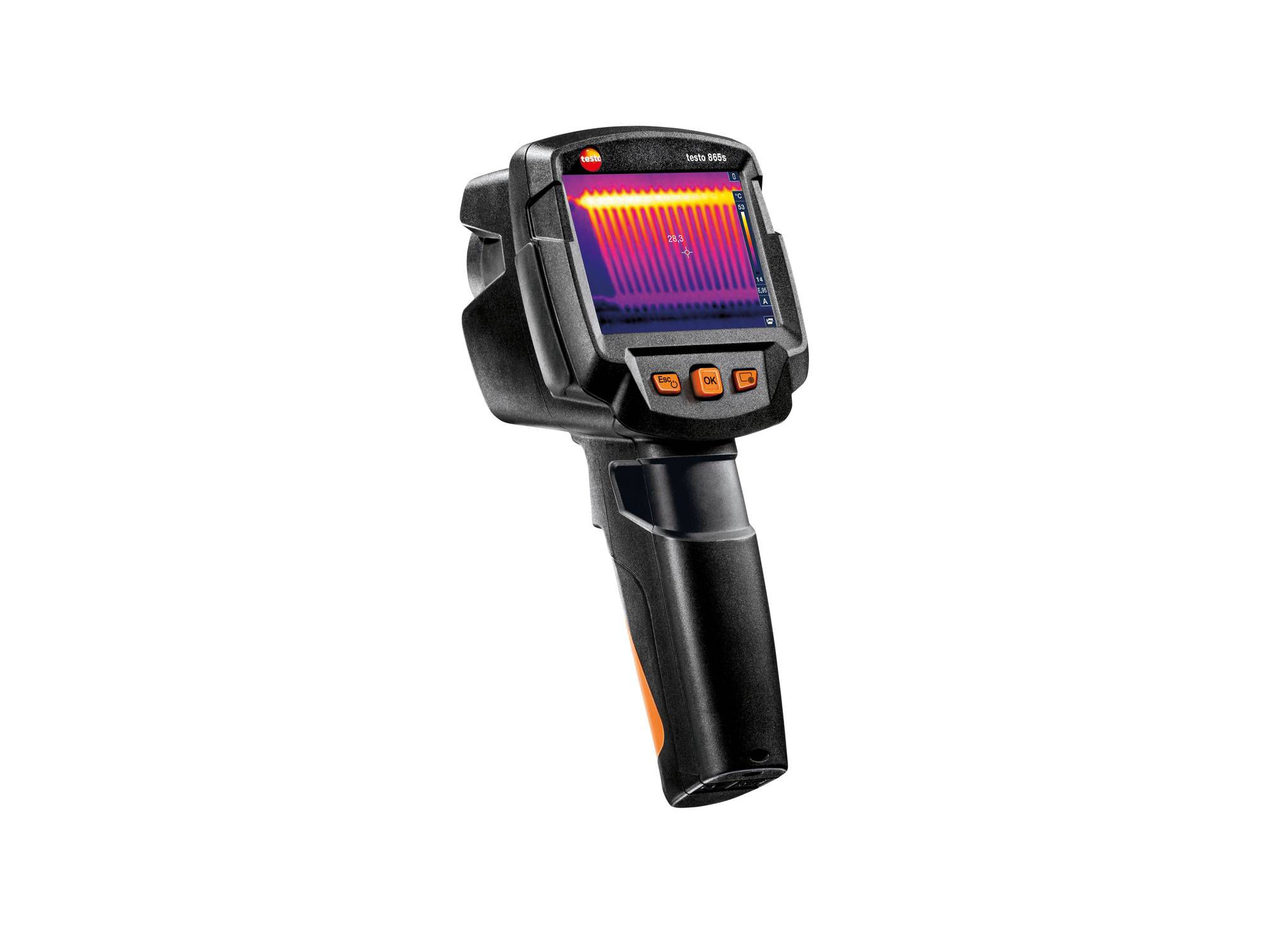

Thermal imager testo 865s adalah pintu masuk yang ideal ke dunia termografi. Ini mengesankan dengan kualitas gambar terbaik di kelasnya dan pengoperasian intuitif dalam tampilan ubin modern. Testo 865s pas di tangan dan cukup kuat untuk menahan kerasnya penggunaan sehari-hari. Fungsi yang bermanfaat seperti IFOV-Warner dan ScaleAssist memastikan gambar termal yang lebih baik. Semua itu dikombinasikan dengan rasio harga-kinerja yang tidak ada duanya. Nyalakan titik, ketahui lebih banyak.
FITUR Testo 865
- Kualitas gambar dengan resolusi IR 160 x 120 piksel (dengan teknologi testo SuperResolution 320 × 240 piksel)
- Sensitivitas termal 0,1 °C
- Deteksi otomatis titik panas dan dingin
- Perangkat lunak analitik gratis untuk membuat laporan profesional
- Pengukuran cepat dengan fokus tetap
- Akurasi pengukuran ±2 °C
SPESIFIKASI Testo 865
| Standards and warranty |
|---|
| EU-/EG-guidelines | EMC: 2014/30/EU |
| Infrared image output |
|---|
| Infrared resolution | 160 x 120 pixels |
| Thermal sensitivity | <0.1 °C (100 mK) |
| Field of view | 31° x 23° |
| Minimum focus distance | <0.5 m |
| Geometric resolution (IFOV) | 3.4 mrad |
| SuperResolution (Pixel) | 320 x 240 pixels |
| SuperResolution (IFOV) | 2.1 mrad |
| Image refresh rate | 9 Hz |
| Focus | Fixed focus |
| Spectral range | 7.5 to 14 µm |
| Image presentation |
|---|
| Display type | 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels) |
| Display option | IR image only |
| Colours | 4 (iron, rainbow, cold-hot, grey) |
| Measurement |
|---|
| Measuring range | -20 to +280 °C |
| Accuracy | ±2 °C, ±2 % of mv |
| Emissivity | 0.01 to 1 |
| Reflected temperature | manual |
| Measuring function |
|---|
| Analysis function | Mean point measurement, hot/cold-spot recognition, Delta T |
| IFOV warner | Included |
| testo ScaleAssist | Included |
| Imager equipment |
|---|
| Full screen mode | Included |
| JPEG storage | Included |
| Video streaming | via USB |
| Standard lens | 31° x 23° |
| Interface | USB 2.0 Micro B |
| Imager storage |
|---|
| File format image | .bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv |
| Storage device | Internal Memory (2.8 GB) |
| Power supply |
|---|
| Battery type | Fast-charging, Li-ion battery can be changed on-site |
| Operating time | 4.0 h |
| Mains operation | yes |
| Ambient Condition |
|---|
| Air humidity | 20 to 80 %RH non-condensing |
| Housing protection class | IP54 |
| Vibration | 2G |
| Storage temperature | -30 to +60 °C |
| Operating temperature | -15 to +50 °C |
| Physical specification |
|---|
| Product-/housing material | PC – ABS |
| Weight | 510 g |
| Dimensions | 219 x 96 x 95 mm |
| PC software |
|---|
| System requirements | Windows® 10; Windows® 8.1 |
| General technical data |
|---|
| Product colour | Black |
| Display ligthing | bright / normal / dark |
