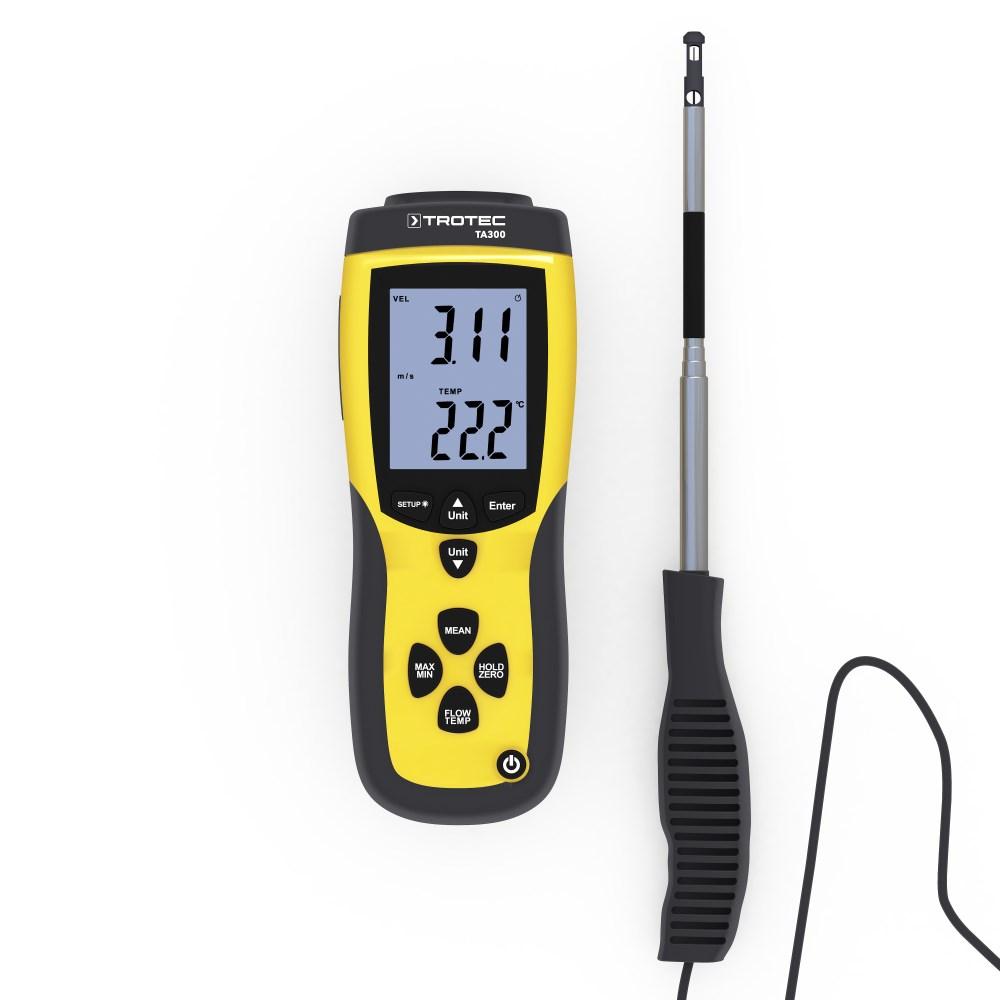

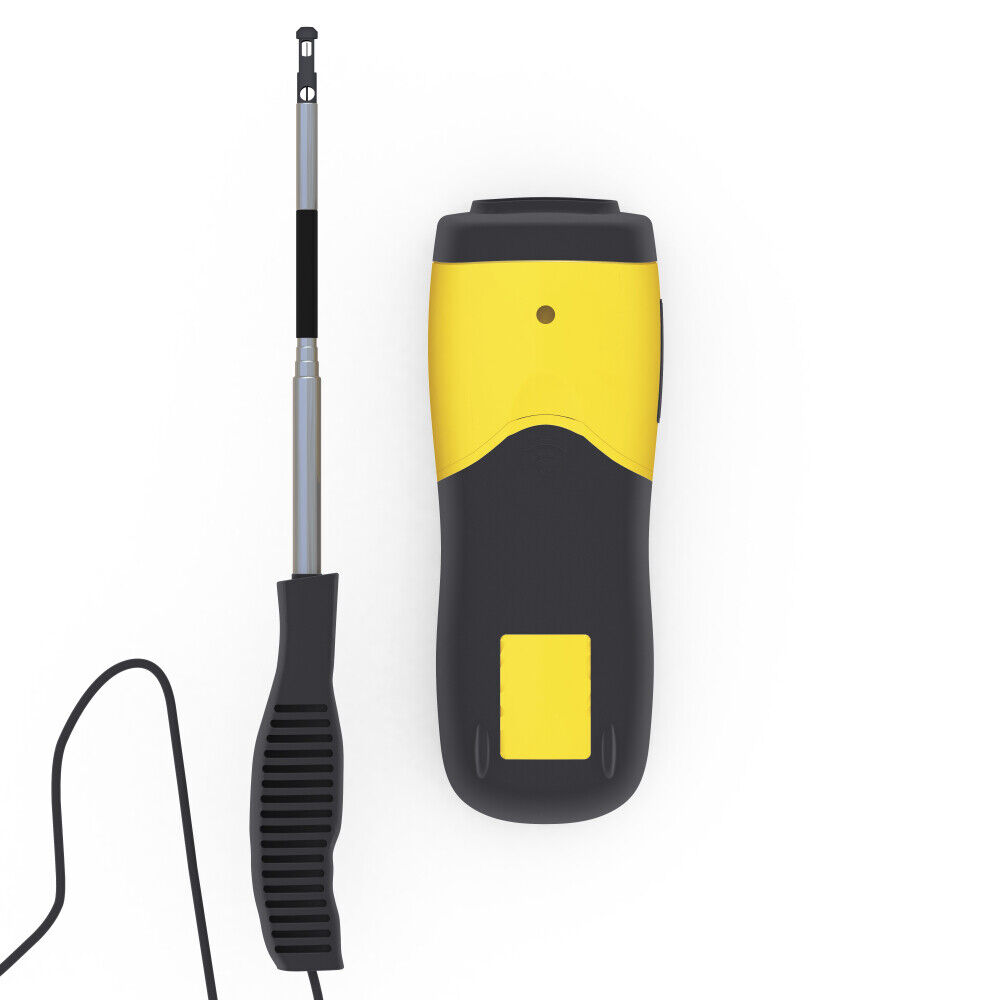

Trotec TA300 adalah anemometer kabel panas profesional untuk penentuan kecepatan udara, suhu udara, dan aliran udara volumetrik secara tepat.Untuk pengukuran di saluran atau lokasi terpencil, probe genggam dari TA300 dapat diperluas secara bertahap hingga panjang efektif satu meter.
Kombinasi sensor hot-wire presisi yang kuat dan mikroprosesor canggih dengan pemrosesan sinyal memastikan hasil pengukuran yang cepat dan tepat untuk setiap aplikasi dengan hasil yang ditunjukkan bahkan di lingkungan dengan pencahayaan buruk pada layar LCD indikasi ganda yang menyala pada TA300.
FITUR TROTEC TA300
- Pengujian sistem pemanas, ventilasi atau pendingin udara
- komisioning
- tugas pemeliharaan
- Pengukuran kecepatan dan suhu udara pada saluran keluar udara dan celah ventilasi
- Sertifikasi lingkungan kritis
- pengukuran saluran
- Tes kebocoran pada jendela atau pintu
SPESIFIKASI TROTEC TA300
| Air flow rate [m/s] | ||
|---|---|---|
| Min. measuring range | Air flow rate [m/s] | 0.1 | |
| Max. measuring range | Air flow rate [m/s] | 25 | |
| Accuracy | Air flow rate [%] | 5 | |
| Accuracy ± | Air flow rate [m/s] | 1 | |
| Resolution | Air flow rate [m/s] | 0.01 | |
| Measuring principle | Air flow rate | Hot-wire | |
| Air flow rate [mph] | ||
| Min. measuring range | Air flow rate [mph] | 0.2 | |
| Max. measuring range | Air flow rate [mph] | 55.8 | |
| Accuracy | Air flow rate [%] | 5 | |
| Accuracy ± | Air flow rate [mph] | 1 | |
| Resolution | Air flow rate [mph] | 0.1 | |
| Air flow rate [km/h] | ||
| Min. measuring range | Air flow rate [km/h] | 0.3 | |
| Max. measuring range | Air flow rate [km/h] | 90 | |
| Accuracy | Air flow rate [%] | 5 | |
| Accuracy ± | Air flow rate [km/h] | 1 | |
| Resolution | Air flow rate [km/h] | 0.1 | |
| Air flow rate [kn] | ||
| Min. measuring range | Air flow rate [kn] | 0.2 | |
| Max. measuring range | Air flow rate [kn] | 48.5 | |
| Accuracy | Air flow rate [%] | 5 | |
| Accuracy ± | Air flow rate [kn] | 1 | |
| Resolution | Air flow rate [kn] | 0.1 | |
| Air flow rate [ft/min] | ||
| Min. measuring range | Air flow rate [ft/min] | 20 | |
| Max. measuring range | Air flow rate [ft/min] | 4,925 | |
| Accuracy | Air flow rate [%] | 5 | |
| Accuracy ± | Air flow rate [ft/min] | 1 | |
| Resolution | Air flow rate [ft/min] | 1 | |
| Air volume flow [m³/min] | ||
| Min. measuring range | Air volume flow [m³/min] | 0.001 | |
| Max. measuring range | Air volume flow [m³/min] | 99,999 | |
| Resolution [m³/min] | Air volume flow | 0.001 – 100 | |
| Air volume flow [ft³/min] | ||
| Min. measuring range | Air volume flow [ft³/min] | 0.001 | |
| Max. measuring range | Air volume flow [ft³/min] | 99,999 | |
| Resolution [ft³/min] | Air volume flow | 0.001 – 100 | |
| Air temperature [°C] | ||
| Min. measuring range | Air temperature [°C] | 0 | |
| Max. measuring range | Air temperature [°C] | 50 | |
| Accuracy ± | Air temperature [°C] | 1 | |
| Resolution [°C] | 0.1 | |
| Display | ||
| LCD | ||
| Interfaces | ||
| USB | ||
| Housing design | ||
| Plastics | ||
| Ø probe tip/base | 10 mm/ 12 mm | |
| Power supply | ||
| Internal (battery) | ||
| External (USB) | ||
| Battery type | 1 x 9V battery | |
| Ambient conditions | ||
| Operation – min. temperature [°C] | 0 | |
| Operation – max. temperature [°C] | 50 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 210 | |
| Width (packaging excluded) [mm] | 75 | |
| Height (packaging excluded) [mm] | 50 | |
| Weight | ||
| (packaging excluded) [kg] | 0.28 | |
