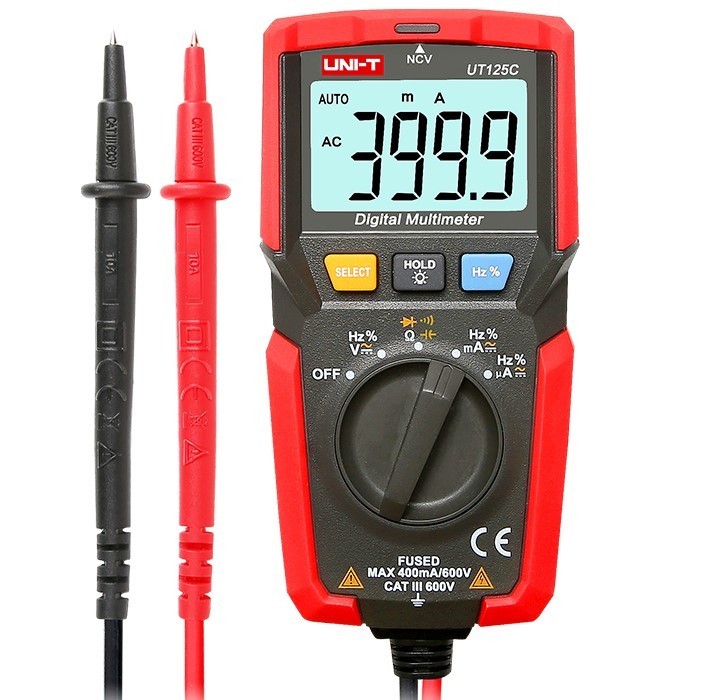

UT125C adalah multimeter berukuran saku, ergonomis, dan andal dengan 4000 hitungan tampilan. Ini adalah alat yang berguna bagi DIYer elektronik yang bekerja dengan arus rendah (< 0,4A). Produk ini bersertifikat CE/cETLus dan mematuhi CAT III 600V.
FITUR UNI-T UT125C
- Ukuran kecil, mudah dibawa dan dioperasikan
- Pengukuran tegangan DC/AC 600V
- Pengukuran arus DC/AC 400mA
- Uji Resistansi/Kapasitansi/Dioda/Kontinuitas
- Pengukuran Frekuensi/Siklus Kerja
- CE (EMC, LVD, RoHS), cETLus
- CAT III 600V
- Uji jatuh 1m
SPESIFIKASI UNI-T UT125C
| Specifications | Range | UT125C |
| DC voltage (V) | 600V | ±(0.5%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) |
| DC current (A) | 400mA | ±(1.8%+5) |
| AC current (A) | 400mA | ±(2%+8) |
| Resistance (Ω) | 40MΩ | ±(1%+5) |
| Capacitance (F) | 100μF | ±(4%+10) |
| Frequency (Hz) | 10Hz~60kHz | ±(0.1%+5) |
| Duty cycle | 20%~80% | Reference |
| Features | ||
| NCV | √ | |
| Diode test/Continuity test | √ | |
| Low battery indication | √ | |
| Data hold/Auto power off | √ | |
| Operating temperature | 0℃~50℃ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 38mm x 23mm | |
| Product color | Red and grey | |
| Product net weight | 180g | |
| Product size | 112mm x 58mm x 35mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 500mm x 290mm x 280mm | |
| Standard carton gross weight | 13.1kg | |
