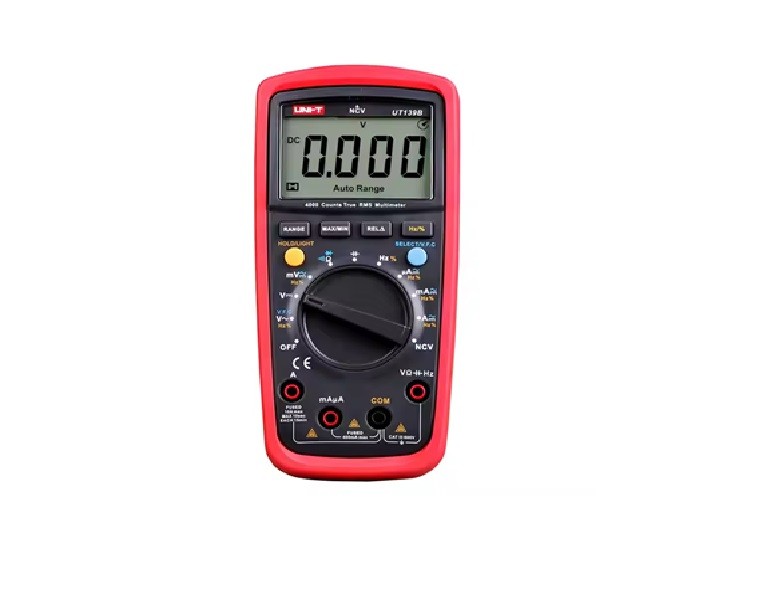

Seri UT139 adalah multimeter digital CAT III 600V yang dirancang untuk teknisi listrik. Fitur NCV-nya dapat secara efektif memeriksa status kelistrikan melalui pengukuran intensitas medan elektromagnetik. Model UT139E/S yang baru mencakup fitur-fitur khusus seperti LoZ (ACV) untuk mengukur tegangan ‘ghost’. Batang analog 31-segmen bawaannya juga memberikan teknisi listrik representasi visual yang lebih baik dari hasil pengukuran. UT139S dibuat dengan layar EBTN hitam dan merupakan meteran yang sempurna untuk bekerja di lingkungan yang gelap.

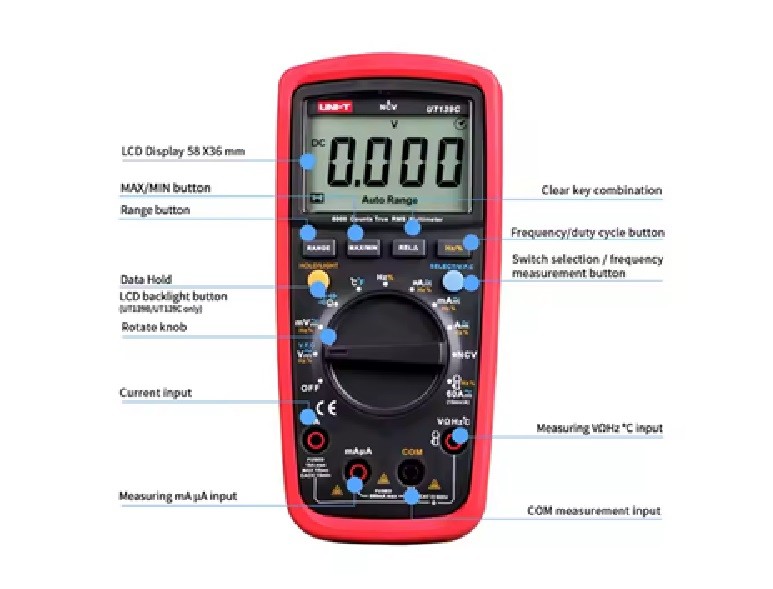

FITUR UNI-T UT139B
- Mode MAX/MIN/REL
- Penahanan data, lampu latar LED, daya mati otomatis
- Proteksi jangkauan penuh (600V)
- True RMS
- NCV
- Rentang otomatis/manual dapat dipilih
SPESIFIKASI UNI-T UT139B
| Specifications | Range | UT139A | UT139B | UT139C | UT139S |
| DC voltage (V) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
| AC voltage (V) | 600V | ±(1%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| DC current (A) | 10A | ± (0.7%+2) | ±(0.7%+2) | ±(0.7%+2) | ±(0.7%+2) |
| AC current (A) | 10A | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 20MΩ | ±(1%+2) | |||
| 40MΩ | ±(0.8%+2) | ||||
| 60MΩ | ±(0.8%+2) | ±(0.8%+2) | |||
| Capacitance (F) | 99.99mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |
| Temperature (°C) | -40°C~1000°C | ±(1%+3) | ±(1%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) | ±(1.5%+5) | ||
| Features | |||||
| Display count | 2000 | 4000 | 6000 | 6000 | |
| Auto range/Manual range /True RMS | √ | √ | √ | √ | |
| Bandwidth (Hz) | 45Hz~400Hz | 45Hz~1kHz | 45Hz~1kHz | 45Hz~400Hz | |
| NCV/Continuity buzzer | √ | √ | √ | √ | |
| Duty cycle | 0.1%~99.9% | √ | √ | √ | |
| Diode | Around 2V | Around 3V | Around 3V | Around 3V | |
| LPF/LoZ (ACV) | √ | ||||
| Analog bar | √ | ||||
| General Characteristics | |||||
| Power | 1.5V battery (R6) x 2 | ||||
| Display | 58mm x 36mm | ||||
| Product color | Red and grey | ||||
| Product net weight | UT139A/B/C: 354g; UT139S: 345g | ||||
| Product size | 170mm x 80mm x 48mm | ||||
| Standard accessories | UT139A/B: Batteries, test leads; UT139C/S: Batteries, test leads, temperature probe | ||||
| Standard individual packing | Gift box, English manual | ||||
| Standard quantity per carton | 20pcs | ||||
| Standard carton measurement | 450mm x 330mm x 340mm | ||||
| Standard carton gross weight | 12.2kg | ||||
| Optional accessory | UT139C: Current sensor AC/DC 40A | ||||
