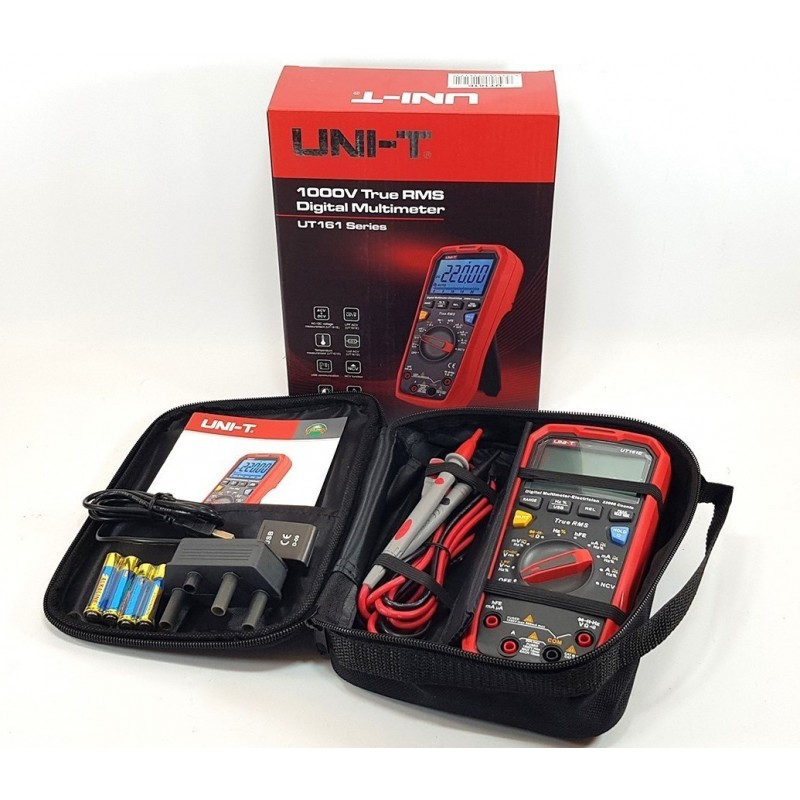

Seri UT161 adalah multimeter digital RMS sejati yang andal dengan jumlah tampilan 6000 (UT161B/D) dan 22.000 (UT161E). Dapat mengukur hingga 1000V AC/DC. Dilengkapi dengan alarm yang dapat didengar dan dilihat, seri ini dapat memberikan peringatan terutama saat mengukur tegangan/arus dan suhu tinggi.
FITUR UNI-T UT161B
- RMS nyata
- Penyimpanan Data/lampu latar
- Mode maks/menit/relatif
- Komunikasi USB
- Perlindungan masukan
- Tes dioda/kontinuitas
- NCV (alarm suara/visual)
SPESIFIKASI UNI-T UT161B
Specifications | Range | UT161B | UT161D | UT161E |
| Certifications (UT161 Series only) | CE/RoHS/cETLus | |||
| Safety ratings | CAT III 1000V/CAT IV 600V | |||
| AC voltage (V) | 1000V | ±(1%＋3) | ±(1%＋3) | ±(0.8%＋10) |
| DC voltage (V) | 1000V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.05%＋5) |
| AC current (A) | 10A | ±(1.2%＋5) | ||
| 20A | ±(1.2%＋5) | ±(0.8%＋10) | ||
| DC current (A) | 10A | ±(1%＋2) | ||
| 20A | ±(1%＋2) | ±(0.5%＋10) | ||
| Resistance (Ω) | 60MΩ | ±(1%＋2) | ±(1%＋2) | |
| 220MΩ | ±(0.5%＋10) | |||
| Capacitance (F) | 60mF | ±(3%＋5) | ±(3%＋5) | |
| 220mF | ±(3%＋5) | |||
| Frequency (Hz) | 10MHz | ±(0.1%＋4) | ±(0.1%＋4) | |
| 220MHz | ±(0.01%＋5) | |||
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) | ||
| -40℉~1832℉ | ±(1%＋6) | |||
| Display count | 6000 | 6000 | 22000 | |
| Bandwidth (Hz) | 40Hz~500Hz | 40Hz~1kHz | 40~10kHz | |
| LPF ACV | √ | |||
| LoZ ACV | √ | |||
| ACV+DCV | √ | |||
| Transistor hFE | √ | |||
| Peak Hold | √ | √ | ||
| Analog bar | 31 | 31 | 46 | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 4(Not Included) | |||
| Product net weight | 350g | |||
| Product size | 190mm x 90mm x 50mm | |||
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe (UT161D), | |||
| multi-purpose socket (UT161E), English manual | ||||
| Standard individual packing | Gift box, cloth bag | |||
| Optional accessories | Bluetooth/APP | |||
