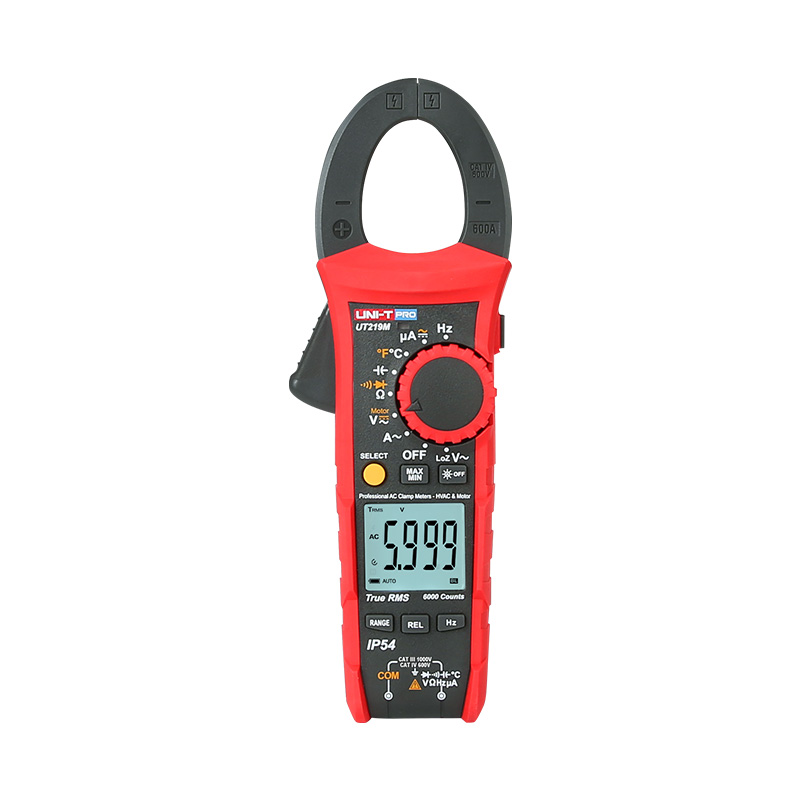

Seri UT219 adalah penjepit meter profesional true RMS 600A dengan peringkat CAT IV 600V. Alat ini dirancang secara industri dengan peringkat IP54 dan mampu menahan uji jatuh dari ketinggian 2 meter untuk pengukuran di lingkungan yang keras. Seri ini cocok untuk teknisi listrik profesional, HVAC/R, dan teknisi servis motor.
FITUR UNI-T UT219M
- Jangkauan otomatis/manual/Mode ZERO
- True RMS/daya mati otomatis
- MAX/MIN
- IP54/tahan jatuh 2m
- Mode penyimpanan data/relatif
- Senter dan lampu latar otomatis
- Indikasi baterai lemah
SPESIFIKASI UNI-T UT219M
| Specifications | Range | UT219E | UT219M | UT219DS |
| AC current (A) | 600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
| DC current (A) | 600A | ±(1.8%+6) | ||
| AC voltage (V) | 1000V | ±(1%+6) | ±(1%+6) | ±(1%+6) |
| DC voltage (V) | 1000V | ±(0.6%+3) | ±(0.6%+3) | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) | ±(4%+7) | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) | ||
| 600Hz~40MHz | ±(0.1%+5) | ±(0.1%+6) | ||
| Duty cycle | 0.1%~99.9% | ±(2.6%+7) | ±(2.6%+7) | |
| Temperature | -40~1000℃ | ±(2%+5℃) | ±(2%+5℃) | |
| -40~1832℉ | ±(2%+9℉) | ±(2%+9℉) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Auto/Manual range | √ | √ | √ | |

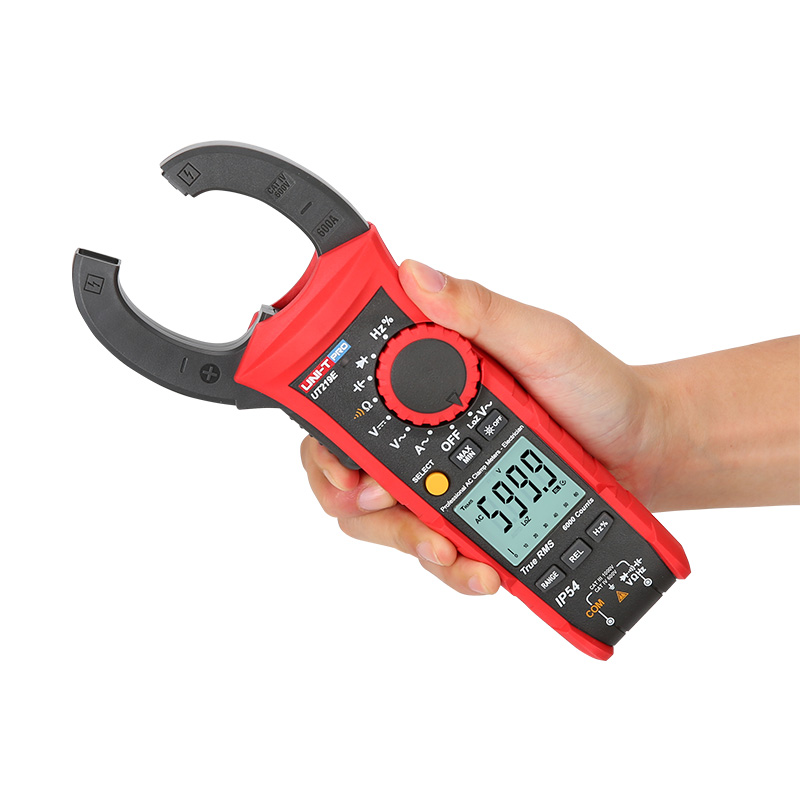

| Jaw opening | 33mm | 33mm | 33mm | |
| True RMS | √ | √ | √ | |
| AC current frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~1kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz, 3db attenuation | √ | ||
| V+A displays voltage and current at the same time | √ | |||
| Diode test | 3V | 3V | 3V | |
| Measurement sampling rate | 3 times/s | 3 times/s | 5 times/s | |
| Analog bar sampling rate | 10 times/s | 20 times/s | ||
| Analog bar | 31 segment | 31 segment | ||
| Display interface (LCD) | Single | Single | Dual | |
| Auto power off/MAX/MIN | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Data hold (H)/Relative mode (REL) | √ | √ | √ | |
| ZERO mode | √ | √ | √ | |
| Function selection (SELECT) | √ | √ | √ | |
| Auto backlight/2m drop test | √ | √ | √ | |
| IP rating | IP54 | IP54 | IP54 | |
| Input impedance | ≥10MΩ | √ | √ | √ |
| General Characterisitics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 35mm x 31mm | |||
| Product color | Red and grey | |||
| Product net weight | 310g | |||
| Product size | 234.6mm x 82mm x 47mm | |||
| Standard accessories | Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS) | |||
| Standard individual packing | Gift box, blister, English manual | |||
| Standard quantity per carton | 10pcs | |||
| Standard carton measurement | 490mm x 295mm x 330mm | |||
| Standard carton gross weight | UT219E: 8kg; UT219M/UT219DS: 8.2kg | |||
