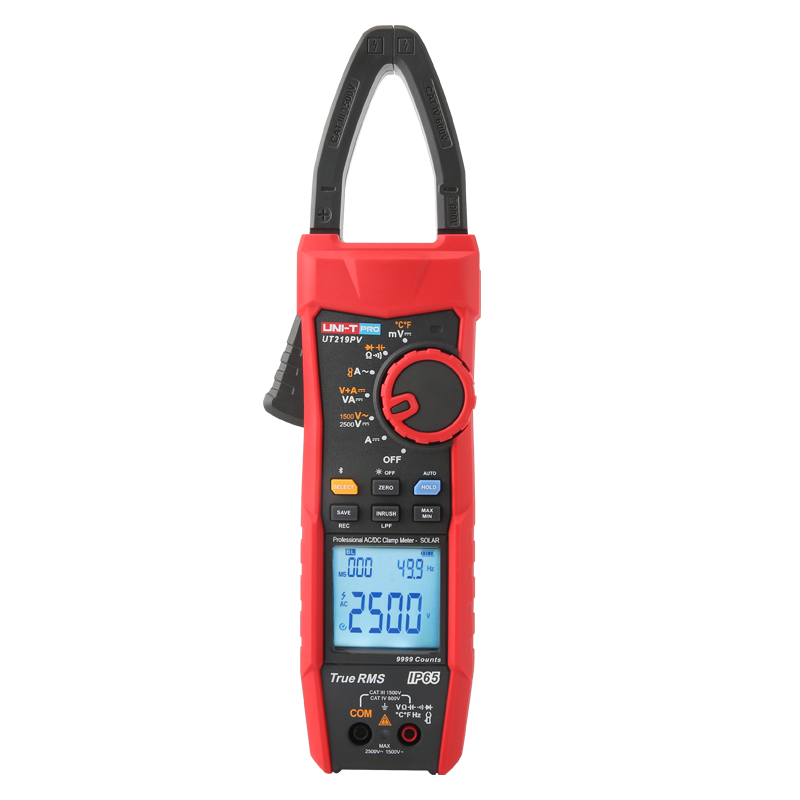

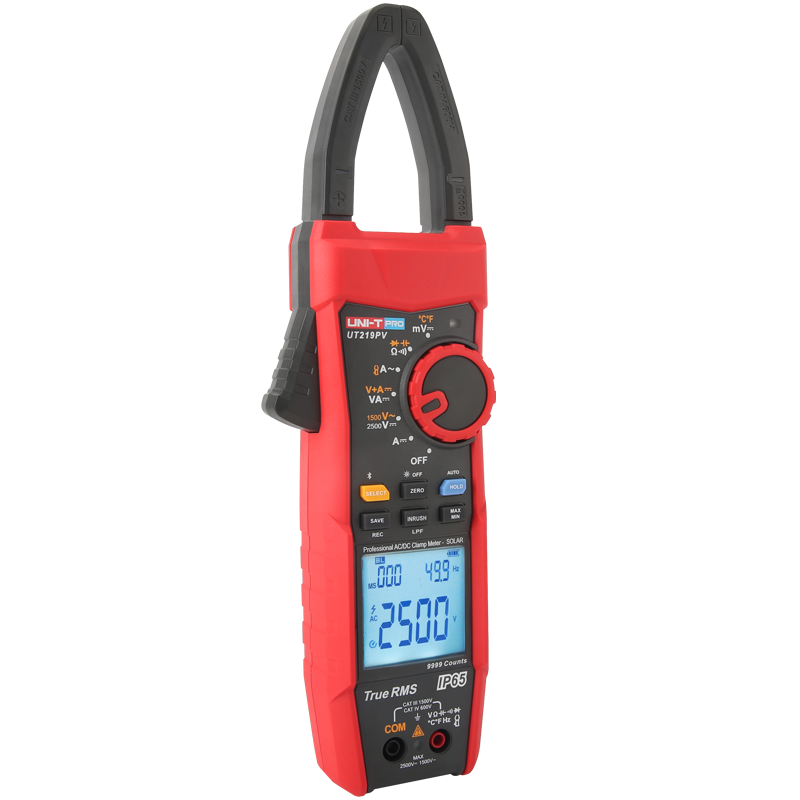

UNI-T UT219PV Professional AC/DC Clamp Meter adalah clamp meter digital profesional yang dirancang khusus untuk pengukuran pada sistem photovoltaic (PV), solar panel, inverter, UPS, baterai storage, dan instalasi listrik tegangan tinggi. Alat ini mampu mengukur tegangan hingga 2500V DC dan 1500V AC serta arus AC/DC hingga 1000A dengan tingkat akurasi dan keamanan tinggi.
UT219PV menggunakan teknologi True RMS untuk memastikan hasil pengukuran tetap akurat pada gelombang non-linear seperti inverter dan variable frequency drive (VFD). Clamp meter ini juga dilengkapi rahang ultra-tipis 35 mm sehingga mudah digunakan pada combiner box, inverter, dan ruang panel yang sempit.
FITUR UNI-T UT219PV
- True RMS AC/DC Clamp Meter
- Pengukuran tegangan hingga 2500V DC & 1500V AC
- Pengukuran arus AC/DC hingga 1000A
- Khusus untuk sistem photovoltaic (PV) & solar panel
- Pengukuran DC power hingga 2500kVA

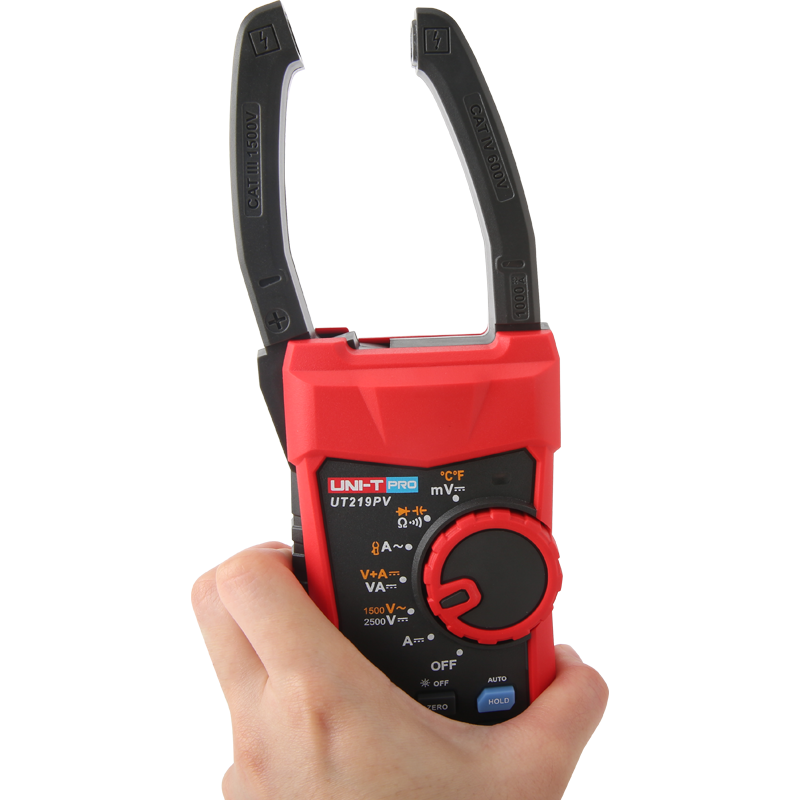

- Clamp jaw ultra-tipis 35 mm
- LPF (Low Pass Filter) untuk inverter & VFD
- Pengukuran resistance, capacitance, frequency & temperature
- Inrush current & peak measurement
- Bluetooth 5.0 ke aplikasi UNI-T Smart Measure
- Alarm polaritas panel surya & high voltage warning
- Dual LCD display 9999 counts
- AUTO HOLD & auto backlight
- Proteksi debu dan air IP65
- Kompatibel dengan flexible clamp sensor hingga 3000A
- Safety rating CAT III 1500V / CAT IV 600V
- Cocok untuk solar panel, inverter, UPS, baterai storage, dan industri tenaga listrik
SPESIFIKASI UNI-T UT219PV
| Current (ACA) | 999.9 A | 40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz~1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0％＋9) |
| ACA(with LPF) | 999.9A | ±(2.5％＋9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0％+5） |
| Cpacitance（F） | 100.0μF/1000 μF | ±(1.0％+5） |
| Temperature | -40℃~400℃/-40℉~752℉ | ±(1.0%+30); ±(1.0%+60) |
| Features: | ||
| True RMS | √ | |
| Display count | 9999 | |
| Display | LCD: Dual display (V+A) | |
| Jaw (Max conductor dia.) | 35mm | |
| Diode | √ | |
| Solar panel polarity indication | when <-10 DCV, Audible & Visual alarm | |
| High voltage alarm | √ | |
| Over range indication | √ | |
| AUTO HOLD | √ | |
| Inrush current | √ | |
| PEAK | √ | |
| Bluetooth app | BT 5.0 | |
| Auto backlight | √ | |
| Low battery indication | √ | |
| Flexiable clamp compatible | UT-CS09D (optional) | |
| IP rating | IP65 | |
| Overvoltage category | CAT III 1500V; CAT IV 600V | |
| Certificates | CE, cETLus, RoHS | |
| General Characteristics | ||
| Power supply | 2 * AA | |
| Product dimension | 295mm x 73mm x 50mm | |
| Product color | Grey + Red | |
| Accessories | test probe, temperature probe, batteries, manual | |
