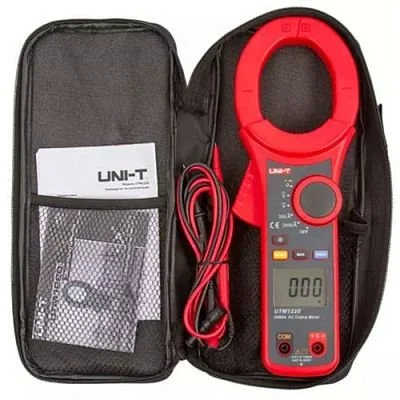

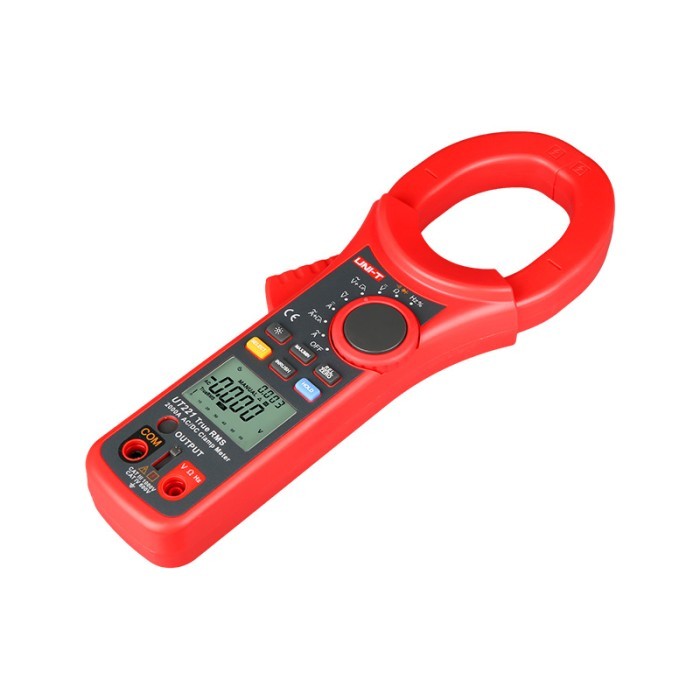

Seri UT220 adalah penjepit digital AC/DC 2000A. Seri ini memastikan kinerja, keamanan, dan keandalan yang stabil untuk mengukur arus AC (dan DC untuk UT221) hingga 2000A. Seri ini dirancang dengan perlindungan beban berlebih untuk semua rentang, cocok untuk semua profesional yang mengukur arus hingga 2000A (2500A untuk UT222).
FITUR UNI-T UT220
- Jangkauan otomatis
- Bel kontinuitas
- MAKS/MIN
- Dioda
- Penahanan data
- Indikasi baterai lemah
SPESIFIKASI UNI-T UT220
| Specifications | Range | UT220 | UT221 | UT222 |
| AC current (A) | 2000A | ±(2.5%+5) | ±(2.5%+5) | |
| 2500A | ±(1.5%+5) | |||
| DC current (A) | 2000A | ±(2.5%+5) | ||
| 2500A | ±(1.5%+5) | |||
| AC voltage (V) | 750V | ±(1.2%+5) | ±(1.2%+5) | |
| 1000V | ±(1%+3) | |||
| DC voltage (V) | 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.5%+2) |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ||
| 60MΩ | ±(1%+2) | |||
| 66MΩ | ±(1%+2) | |||
| Capacitance (F) | 60mF | ±(3%+5) | ||
| Frequency (Hz) | 20MHz | ±(0.1%+3) | ||
| 60MHz | ±(0.1%+3) | |||
| Temperature | -40°C~1000°C | ±(1%+10) | ||
| -40°F~1832°F | ±(1%+18) | |||
| Features | ||||
| Display count | 2000 | 6000 | 6000 | |
| Auto range/Diode | √ | √ | √ | |
| Jaw opening | 63mm | 63mm | 63mm | |
| True RMS (AC voltage/AC current) | √ | √ | ||
| Duty cycle | 10%~90% | √ | √ | |
| Continuity buzzer | √ | √ | √ | |
| AC+DC | √ | |||
| Low pass filter | √ | √ | ||
| Inrush current | AC current | √ | √ | |
| Relative mode | √ | √ | ||
| Data hold/MAX | √ | √ | √ | |
| MIN/I-OUT function | √ | √ | ||
| Data storage | 1000 | |||
| Analog bar graph | 66 | 61 | ||
| Full icon display | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Input impedance | ≥10MΩ | √ | √ | √ |
| General Characterisitics | ||||
| Power | 9V battery (6F22) | |||
| Display | 43mm x 30mm | |||
| Product color | Red and grey | |||
| Product net weight | UT220: 389g; UT221/UT222: 726g | |||
| Product size | 298mm x 107mm x 47mm | |||
| Standard accessories | Test leads, output cable (UT221/UT222), thermocouple (UT222) | |||
| Standard individual packing | Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual | |||
| Standard quantity per carton | UT220: 40pcs; UT221/UT222: 5pcs | |||
| Standard carton measurement | UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm | |||
| Standard carton gross weight | UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg | |||
