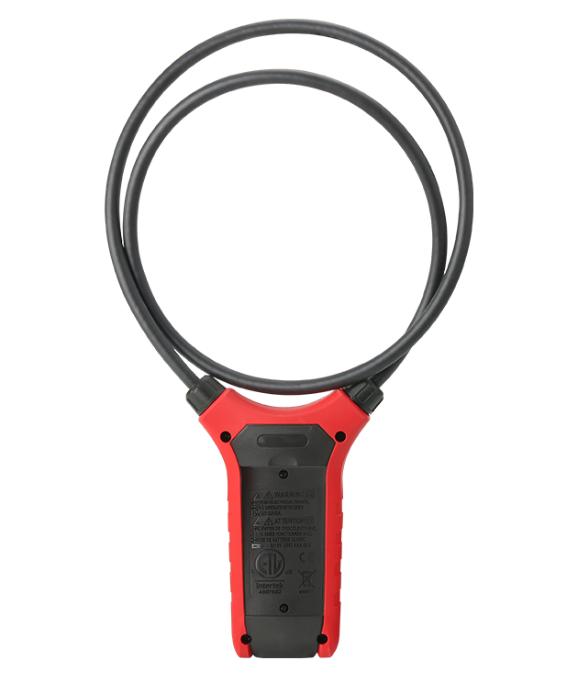

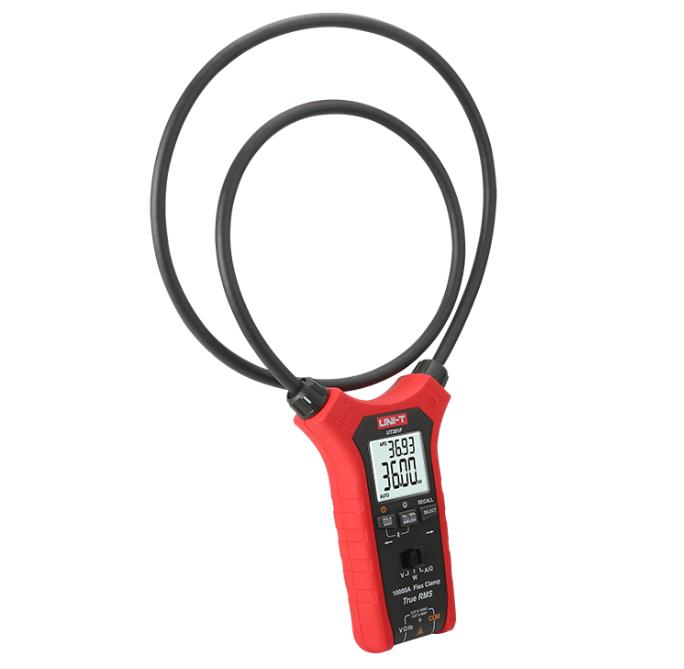

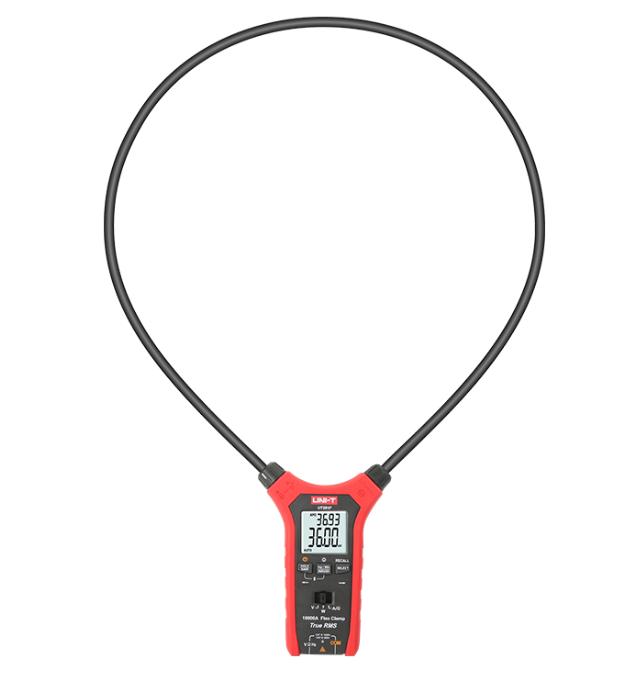

UNI-T UT281F 10000A Flex Clamp Clamp Meter adalah alat ukur listrik profesional jenis flexible clamp meter yang dirancang untuk pengukuran arus AC besar pada instalasi industri, panel distribusi, busbar, dan sistem tenaga listrik tanpa perlu memutus kabel. Alat ini menggunakan flexible Rogowski coil sepanjang 1,1 meter sehingga mudah digunakan pada area sempit atau kabel berdiameter besar yang sulit dijangkau clamp meter biasa.
UT281F mendukung pengukuran arus hingga 10.000A True RMS dengan akurasi tinggi, sehingga cocok digunakan pada sistem kelistrikan industri, pembangkit listrik, manufaktur, smelter, hingga photovoltaic station. Selain pengukuran arus, alat ini juga mampu mengukur tegangan AC/DC hingga 1000V, resistansi, frekuensi, inrush current, serta analisis daya seperti kW, kVA, kVAR, power factor, phase angle, dan energi kWh.
FITUR UNI-T UT281F
- Flexible Rogowski coil untuk area sempit & kabel besar
- Pengukuran arus AC hingga 10.000A True RMS
- Pengukuran tegangan AC/DC hingga 1000V
- Analisis daya lengkap (kW, kVA, kVAR, PF, phase angle, kWh)
- Pengukuran inrush current
- Pengukuran resistansi dan frekuensi
- Layar LCD dual display dengan backlight
- Data logging hingga ±1050 data
- Koneksi Bluetooth 5.0 ke aplikasi UNI-T Smart Measure
- Fitur Min/Max, Data Hold, Auto Range
- Safety rating CAT III 1000V / CAT IV 600V
- Flexible coil panjang ±1,1 meter
- Cocok untuk panel listrik, industri, pembangkit, dan sistem tenaga besar
SPESIFIKASI UNI-T UT281F
| Models | UT281E+ | UT281F | ||
| Range & Resolution | Accuracy | Range & Resolution | Accuracy | |
| DC Voltage | 6.000V ; 0.001V | ±(0.8%+2) | 6.000V ; 0.001V | ±(0.8%+2) |
| 60.00V ; 0.01V | 60.00V ; 0.01V | |||
| 600.0V ; 0.1V | 600.0V ; 0.1V | |||
| 1000V ; 1V | ±(1.0%+2) | 1000V ; 1V | ±(1.0%+2) | |
| AC Voltage | 6.000V ; 0.001V | ±(1.0%+3) | 6.000V ; 0.001V | ±(1.2%+3) |
| 60.00V ; 0.01V | 60.00V ; 0.01V | |||
| 600.0V ; 0.1V | 600.0V ; 0.1V | |||
| 1000V ; 1V | ±(1.2%+3) | 1000V ; 1V | ||
| Freq. response | 45Hz～500Hz | 50Hz～500Hz | ||
| ACV/DCV Auto identification | N/A | 50Hz～500Hz | ±(1.2%+3) | |
| AC Current (Frequency response: 45Hz～500Hz) | N/A | 100mA ; 1mA | ±(2.0%+5) | |
| N/A | 1000mA ; 1mA | ±(2.5%+5) | ||
| 9.99A ; 0.01A | ±(2.0%+5) | 10.00A ; 0.01A | ||
| 99.9A ; 0.1A | 100.0A ; 0.1A | |||
| 999A ; 1A | ±(2.5%+5) | 1.00kA ; 0.01kA | ±(3.0%+5) | |
| 9.99kA ; 0.01kA | ±(3.0%+5) | 10.00kA ; 0.01kA | ||
| Frequency (ACA) | 10.0Hz～1000Hz ; 0.1 | ±(0.5%+3) | 45Hz～1000Hz ; 0.1 | ±(0.5%+3) |
| Frequency (ACV) | 10.0Hz～30.0kHz ; 0.1 | ±(0.5%+3) | 10.0Hz～30.0kHz ; 0.1 | ±(0.5%+3) |
| INRUSH Current | 100.0A ; 0.1A | ±10.0% | 100.0A ; 0.1A | ±10.0% |
| 6000A ; 1A | 1000A ; 1A | |||
| Resistance | 600.0Ω ; 0.1Ω | ±(1.0%+5) | 600.0Ω ; 0.1Ω | ±(1.0%+5) |
| 6.000kΩ ; 0.001kΩ | 6.000kΩ ; 0.001kΩ | ±(2.0%+5) | ||
| 60.00kΩ ; 0.01kΩ | 60.00kΩ ; 0.01kΩ | |||
| 600.0kΩ ; 0.1kΩ | 600.0kΩ ; 0.1kΩ | |||
| 6.000MΩ ; 0.001MΩ | ±(2.0%+5) | 6.000MΩ ; 0.001MΩ | ±(2.5%+5) | |
| 60.00MΩ ; 0.01MΩ | ±(2.5%+5) | 60.00MΩ ; 0.01MΩ | ±(3%+5) | |
| Active power | N/A | N/A | 60.00kW ; 0.01 | ±(3.5%+5) |
| N/A | N/A | 600.0kW ; 0.1 | ±(3.5%+5) | |
| N/A | N/A | 3600kW ; 1 | ±(3.5%+5) | |
| Apparent power | N/A | N/A | 60.00kVA ; 0.01 | ±(3.5%+5) |
| N/A | N/A | 600.0kVA ; 0.1 | ±(3.5%+5) | |
| N/A | N/A | 3600 kVA ; 1 | ±(3.5%+5) | |
| Reactive power | N/A | N/A | 60.00kVAR ; 0.01 | ±(3.5%+5) |
| N/A | N/A | 600.0kVAR ; 0.1 | ±(3.5%+5) | |
| N/A | N/A | 3600kVAR ; 1 | ±(3.5%+5) | |
| Electrical energy | N/A | N/A | 0.0Wh～3600kWh ; 0.01 | ±(3.5%+5) |
| Power factor | N/A | N/A | -1 ～ 1 ; 0.001 | 50Hz/60Hz |
| Phase angle | N/A | N/A | -360°～360° ; 0.1 | 50Hz/60Hz |
| Features | ||||
| True RMS | ✔ | ✔ | ||
| Display count | 6000 | 6000 | ||
| Data storage | 999 sets | 1050 sets | ||
| Data | Data hold, Data review & Data delete. | Data hold, Data review & Data delete. | ||
| Bluetooth App | N/A | BT 5.0 | ||
| Display | LCD with backlight | LCD with backlight | ||
| Coil Length | 1100mm | 1100mm | ||
| High Voltage OL Alarm | ✔(ACV/DCV) | ✔(ACV/DCV) | ||
| Continuity Test | ✔ | ✔ | ||
| Over-range alarm | ✔ | ✔ | ||
| Low Voltage Indication | ✔ | ✔ | ||
| Auto Power Off | ✔ | ✔ | ||
| Operating Environment | Operating Temperature: 0℃～40℃;Storage Temperature: -10℃～50℃; Humidity: less than 75% | |||
| Safety Rating | CAT III 1000V/CAT IV 600V | |||
| Power supply | 3x 1.5V AAA | |||
