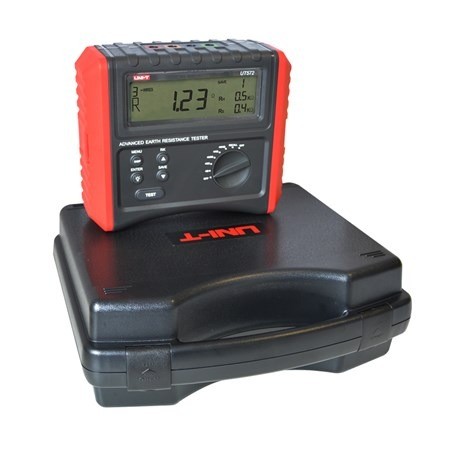

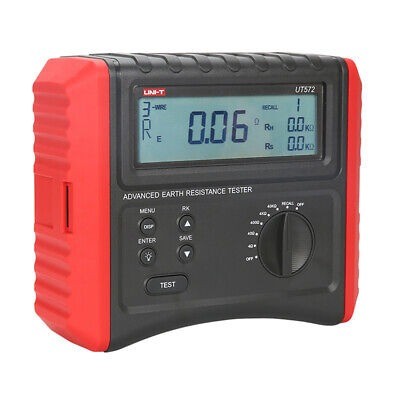

UT572 digunakan untuk mengukur resistansi bumi dan resistivitas tanah. Alat ini dapat secara otomatis memeriksa koneksi antarmuka dan mendeteksi tegangan/frekuensi interferensi, dengan fungsi penyimpanan data dan indikasi. Alat ini dapat melakukan pengukuran 2/3/4-kawat untuk berbagai aplikasi di lokasi, seperti kabel peralatan listrik dan peralatan proteksi petir.
FITUR UNI-T UT572
- Layar LCD 4 digit besar, waktu pengambilan sampel 5 detik
- Pengukuran resistansi bumi dan resistivitas tanah 2/3/4-kawat
- Frekuensi uji yang dapat dipilih (94Hz/128Hz)
- Pengukuran tegangan gangguan (Ust) dan frekuensi (Fst)
- Pengukuran resistansi bumi, RH dan RS
- Lampu latar LCD; daya mati otomatis
- Penyimpanan data
- 20 set penyimpanan data
- Isolasi ganda
- Pengukuran resistansi kompensasi RK
SPESIFIKASI UNI-T UT572
| Specifications | Range | UT572 |
| Earth resistance (Re) | 4Ω | ±(3%+15) |
| 40Ω | ±(3%+5) | |
| 400Ω | ||
| 4kΩ | ||
| 40kΩ | ||
| Soil resistivity (ρ) | 4Ω | ρ=2×π×L×Re (Depending on the test result of Re) |
| 40Ω | ||
| 400Ω | ||
| 4kΩ | ||
| 40kΩ | ||
| Disturbance voltage (Ust) | 50V (DC voltage/40Hz~500Hz) | ±(3%+3) |
| Disturbance frequency (Fst) | 40Hz~500Hz | ±(1%+2) |
| Features | ||
| 2/3/4-wire test | √ | |
| Earth resistance test frequency | 94/128Hz | √ |
| Soil resistivity test distances | 1~40m | √ |
| Earth resistance RH and RS test | √ | |
| Compensating resistance RK test | √ | |
| Data hold | √ | |
| Data storage | 20 | |
| LCD backlight | √ | |
| Auto power off | Around 5 minutes | √ |
| Low battery indication | ≤9.5V | √ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 8 | |
| Display | 125mm x 37mm | |
| Product color | Red and grey | |
| Product net weight | 1100g | |
| Product size | 210mm x 175mm x 90mm | |

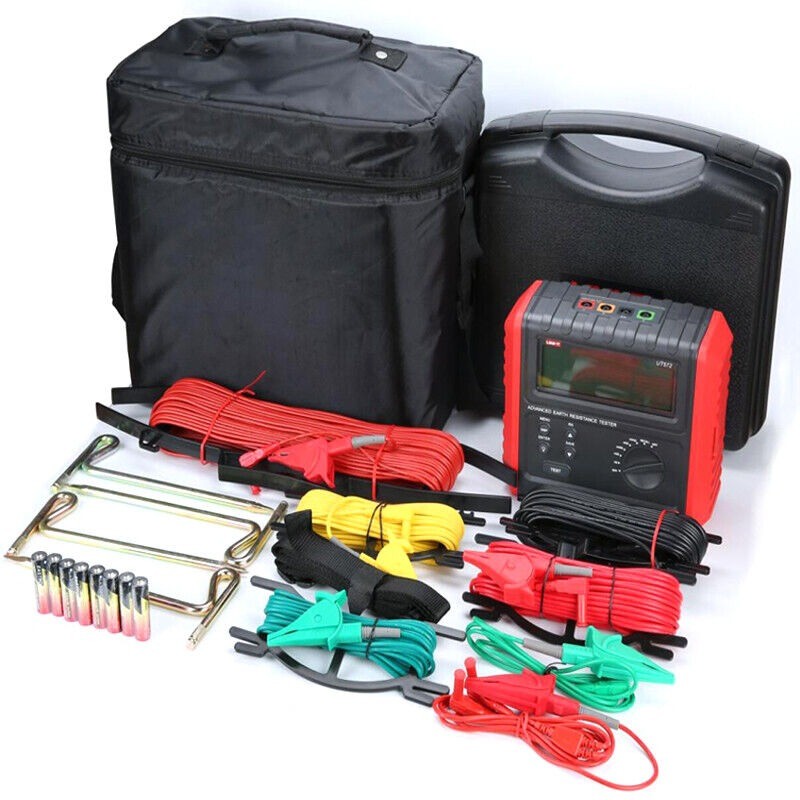

| Standard accessories | Batteries, simple test leads with alligator clips(double plugs x 1, single plug x 1), earth spike x 4, standard test leads with alligator clips (40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), gallus | |
| Standard individual packing | Gift box, carrying bag, tool box, English manual | |
| Standard quantity per carton | 2pcs | |
| Standard carton measurement | 475mm x 378mm x 335mm (0.064CBM per standard carton) | |
| Standard carton gross weight | 14kg | |
