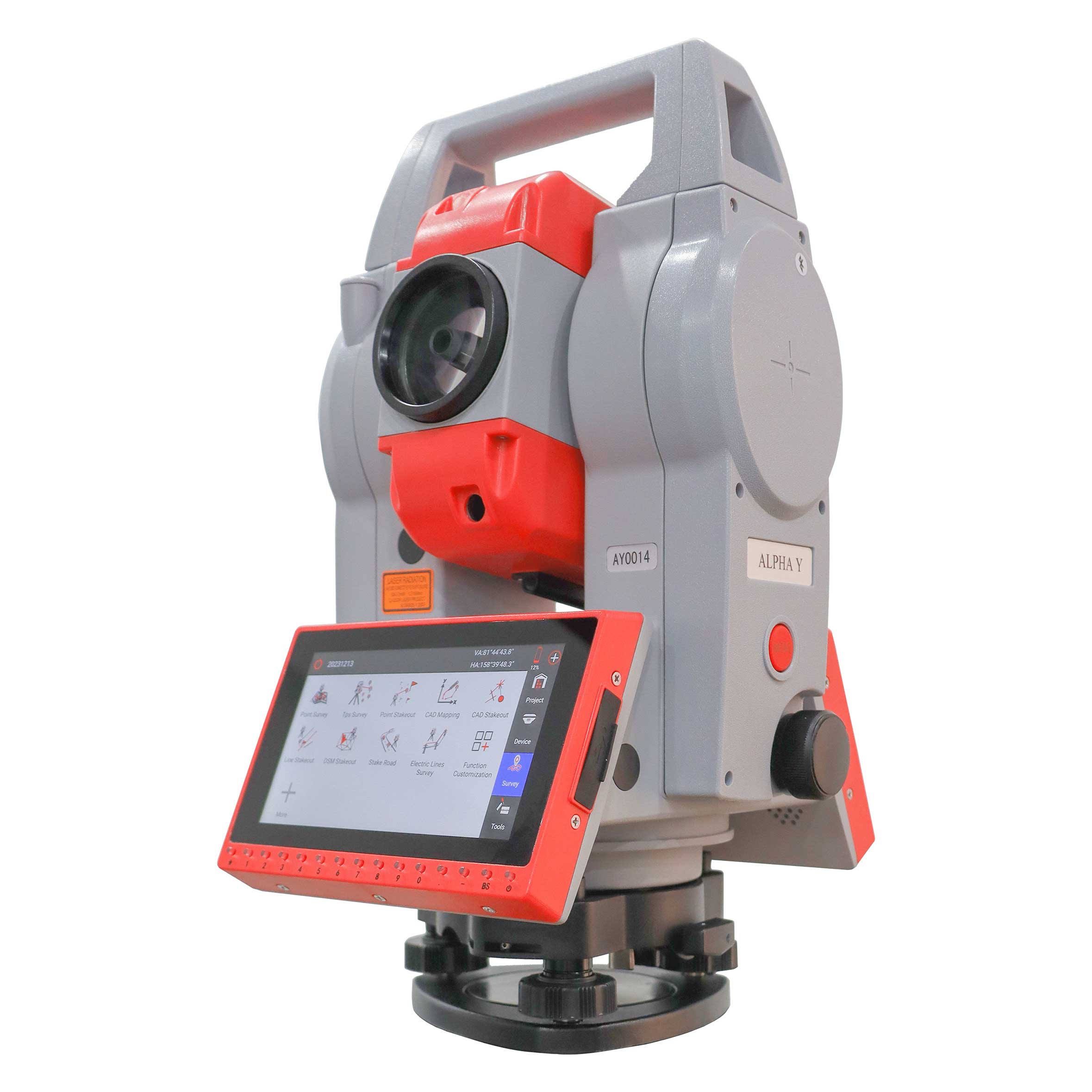

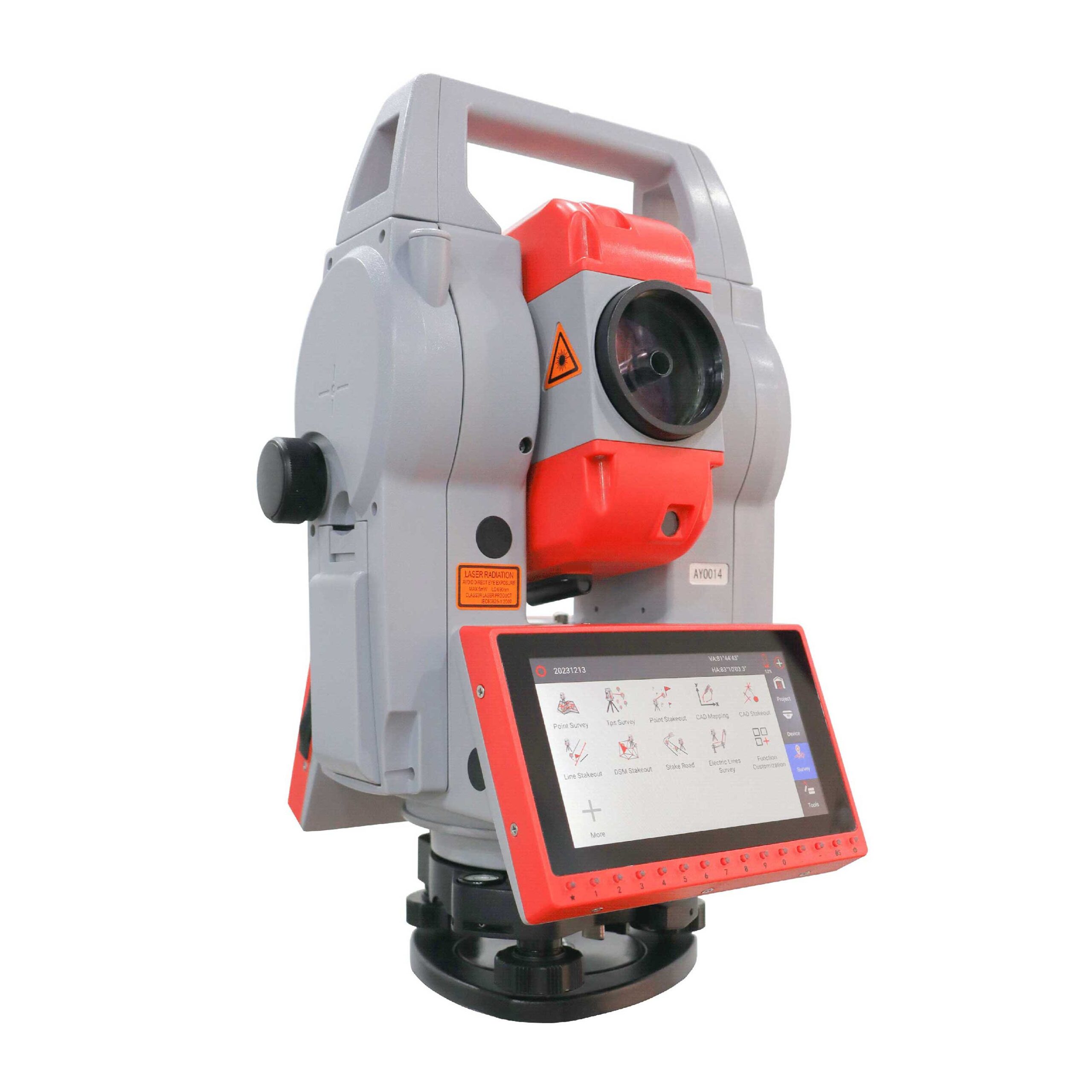

Alpha Geo Y adalah total station berbasis Android generasi modern yang digunakan untuk pengukuran sudut, jarak, dan koordinat secara presisi dalam pekerjaan survei, pemetaan, dan konstruksi. Alat ini menggabungkan teknologi total station tradisional dengan sistem operasi Android sehingga lebih fleksibel dan mudah digunakan di lapangan.
Perangkat ini dilengkapi software survei bawaan (seperti SurPro 6.0), layar sentuh HD, serta sistem EDM (Electronic Distance Measurement) yang mampu mengukur jarak hingga jauh dengan akurasi tinggi. Selain itu, Alpha Geo Y juga mendukung berbagai aplikasi survei dan CAD, sehingga proses pengolahan data dan staking out dapat dilakukan langsung di alat tanpa perangkat tambahan.
FITUR Alpha Geo Y
- Sistem operasi Android 11 (open platform) → bisa install aplikasi survei & CAD
- Software SurPro 6.0 onboard untuk pengukuran & staking out langsung
- Layar sentuh HD 5,5 inci (±720p) untuk tampilan jelas di lapangan
- Akurasi sudut sekitar ±2 detik untuk pengukuran presisi
- EDM tanpa prisma hingga ±1000 m dan jarak jauh dengan prisma hingga ±5000 m
- Kompensator dual-axis otomatis untuk menjaga kestabilan hasil ukur
- Konektivitas lengkap (Bluetooth, WiFi, USB, 4G opsional)
- Memori besar (RAM & ROM tinggi) untuk data proyek survei
- Mendukung CAD & graphical stakeout untuk pekerjaan konstruksi digital
- Laser plummet & auto temperature correction untuk akurasi dan kemudahan setup
SPESIFIKASI Alpha Geo Y
| Telescope | Length | 156mm |
| lmage | Erect | |
| Objective aperture | Telescope:Ф45mm(meas.dist.:Ф50mm) | |
| Magnification | 30X | |
| Field of view | 1°30′ | |
| Shortest focus distance | 1.0m | |
| Angle measurement | Reading system | Absolute encoder |
| Angle unit | 360°/400gon/6400mil,selectable | |
| Display resolution | 1″/5″/10″(or0.2mgon/lmgon/2mgon) | |
| Accuracy | 2″ | |
| Distance measurement | Laser class(lEC60825-1) | Reflectorless: Class 3R |
| Reflective sheet/RP60:Class 3R | ||
| Prism: Class 1 | ||
| Measurement range(Good condition)*2 | Reflectorless*3 | |
| Reflectorless: 1 to 1000m | ||
| Reflective sheet/RP60: 1 to 1200m | ||
| Single prism: 1 to 5000m | ||
| Accuracy | Prism: 2mm+2ppm | |
| Reflective sheet/RP60: 2mm+2ppm | ||
| Reflectorless: 2mm+2ppm | ||
| Measuring time | Fine mode: 0.5s | |
| Tracking mode: 0.3s | ||
| Display resolution(m/inch selectable): 0.1mm/1mm | ||
| Pressure input range: 500hPato1500hPa(1hPa steps) | ||
| Temperature input range: -40°C to+60°C(1°C steps) | ||
| Prism constant correction: －99.9mm to +99.9mm | ||
| Compensator(Dual-axis) | Range/Setting accuracy | ±3’/1” |
| Level vial sensitivity | Plate level vial | 30″/2mm |
| Circular level vial | 8’/2mm | |
| Laser plummet(Standard)*4 | Accuracy | ±1mm/0.8m-1.5m |
| Spot size | ≤2.0mm/0.8m-1.5m | |
| Optical plummet(Factory optional) | Accuracy | ±0.8mm/1.5m |
| lmage | Erect | |
| Magnification | 3× | |
| Field of view | 4° | |
| Focus range | 0.5m to ∞ | |
| Power | Battery | 5200mAh Li-ion Rechargeable |
| Output voltage | 7.4V DC | |
| Continuous operation time | Approx.8 hours(at+20°C) | |
| Charging time(at +20°C) | Approx.4 hours | |
| Third Party software supported | Surpro 6.0 | |
| Others | Display | 5.5 inch; Resolution 720*1280 |
| CPU | 4-core 64 bit ARM A55 CPU 2GHZ | |
| Memory | 4G RAM+32G ROM(8G+128G optional) | |
| Keyboard | 15 keys under the display | |
| Interface USB /Type C/Bluetooth/WIFl/RS-232C(4G module optional)Trigger key)TF card/Voice output/Buzz output/RTC/Screen backlight adjustment/Temperature and air pressure sensor | Supported | |
| Network | (4G optional) | |
| System | System | |
| Water and dust protection | IP55(IEC60529) | |
| Operating temperature | -20°C-+50°C | |
| Storage temperature | -40°C-+55°C | |
