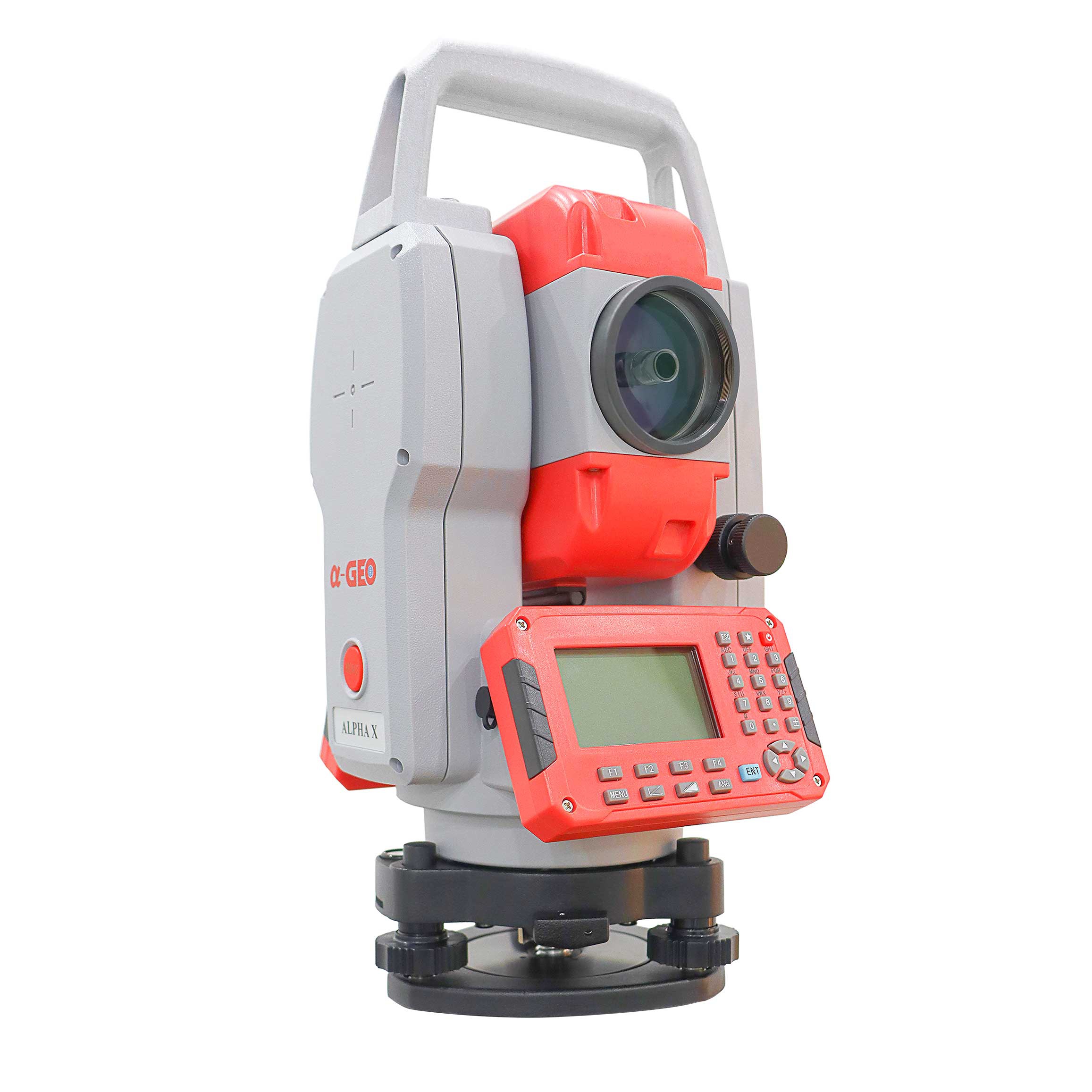

Alpha Geo X adalah alat ukur total station manual (entry-level hingga menengah) yang digunakan untuk pengukuran sudut, jarak, dan koordinat dalam pekerjaan survei dan konstruksi. Alat ini dirancang untuk membantu proses pemetaan, pengukuran lahan, dan staking out dengan hasil yang akurat dan efisien.
Perangkat ini dilengkapi teknologi EDM (Electronic Distance Measurement) yang mampu mengukur jarak hingga sekitar 1000 meter tanpa prisma dan hingga 5000 meter dengan prisma, serta akurasi sudut sekitar ±2 detik. Selain itu, Alpha Geo X sudah memiliki kompensator ganda (dual-axis) untuk menjaga kestabilan pengukuran di medan tidak rata.
FITUR Alpha Geo X
- Akurasi tinggi ±2 detik untuk pengukuran sudut presisi
- Jangkauan EDM hingga 1000 m (tanpa prisma) dan hingga 5000 m (dengan prisma)
- Kompensator ganda (dual-axis) untuk menjaga kestabilan pengukuran di medan miring
- Pengukuran cepat dan stabil dengan teknologi EDM modern
- Layar LCD ganda + keyboard alfanumerik untuk kemudahan operasi di lapangan
- Konektivitas lengkap (Bluetooth, USB, SD card) untuk transfer data
- Mendukung software Surpro 6.0 untuk pengolahan data survei
- Memori internal besar (hingga ±120.000 titik) untuk penyimpanan data
- Fungsi survei lengkap (staking out, koordinat, resection, dll.)
- Desain kuat dan tahan lapangan (IP rating) untuk kondisi kerja berat
SPESIFIKASI Alpha Geo X
| Telescope | Length | 156mm |
| lmage | Erect | |
| Objective aperture | Telescope:Ф45mm(meas.dist.:Ф50mm) | |
| Magnification | 30x | |
| Field of view | 1°30′ | |
| Shortest focus distance | 1.0m | |
| Angle measurement | Reading system | Absolute encoder |
| Angle unit | 360°/400gon/6400mil,selectable | |
| Display resolution | 1″/5″/10″(or 0.2mgon/1mgon/2mgon) | |
| Accuracy*1 | 2″/5″ | |
| Distance measurement | Laser class(lEC60825-1) | Reflectorless: Class 3R |
| Reflective sheet/RP60: Class 3R | ||
| Prism: Class 1 | ||
| Measurement range(Good condition)*2 | ||
| Reflectorless*3 | Reflectorless:1 to 1000m | |
| Reflective sheet/RP6: 01 to 1200m | ||
| Single prism: 1 to 5000m | ||
| Accuracy | Prism: 2mm+2ppm | |
| Reflective sheet/RP60: 2mm+2ppm | ||
| Reflectorless: 2mm+2ppm | ||
| Measuring time | Fine mode: 1.2s | |
| Tracking mode: 0.3s | ||
| Fast mode: 0.7s | ||
| Display resolution(m/inch selectable) | 0.2mm/1mm | |
| Pressure input range | 500hPa to1500hPa(1hPa steps) | |
| Temperature input range | -40°C to+60°C(1°C steps) | |
| Prism constant correction | -99.9mm to+99.9mm | |
| Compensator | Range/Setting accuracy | ±3’/1” |
| Level vial sensitivity | Plate level vial | 30″/2mm |
| Circular level vial | 8’/2mm | |
| Laser plummet(Standard)*4 | Accuracy | ±1mm/1.5m |
| Laser class | Class2/IEC60825-1 | |
| Laser spot brightness | Adjustable | |
| Laser wave length | 635nm | |
| Optical plummet (Factory optional) | Accuracy | ±0.8mm/1.5m |
| lmage | Erect | |
| Magnification | 3x | |
| Field of view | 4° | |
| Focus range | 0.5m to ∞ | |
| Power | Battery | 3400mAh Li-ion Rechargeable |
| Output voltage | 7.4V DC | |
| Continuous operation time | Approx.20 hours(At +20°C) | |
| (Single distance measurement every 30 seconds) | ||
| Charger | FDJ6-Li(100V/240V) | |
| Charging time(at +20°C) | Approx.4 hours | |
| Application programs | Data collection/Stake out/Resection/REM/MLM | |
| AREA/Point to line/Z coordinate/OFF set | ||
| Others | Display | LCD，6 Lines |
| CPU | 32Bit | |
| Memory | 120000 points,support SD card(Optional) | |
| Keyboard | Alphanumerical key board, both sides | |
| Weight(including batteries) | 5.1kg | |
| Dimensions(WxDxH) | 175x178x340mm | |
| Operating temperature | -20°Cto+50°C | |
| Storage temperature | -40°C to +70°C | |
| Interface | USB/RS-232C/Bluetooth(Factory Optional) | |
| Water and dust protection | IP55 | |
