Alat ini mungkin dapat mengukur resistansi isolasi dalam berbagai rentang, dan hasil pengukuran biasanya dinyatakan dalam satuan ohm atau megaohm.Beberapa alat pengukur isolasi digital memiliki fungsi auto range, yang memungkinkan alat secara otomatis memilih rentang pengukuran yang sesuai dengan nilai resistansi isolasi yang diukur.

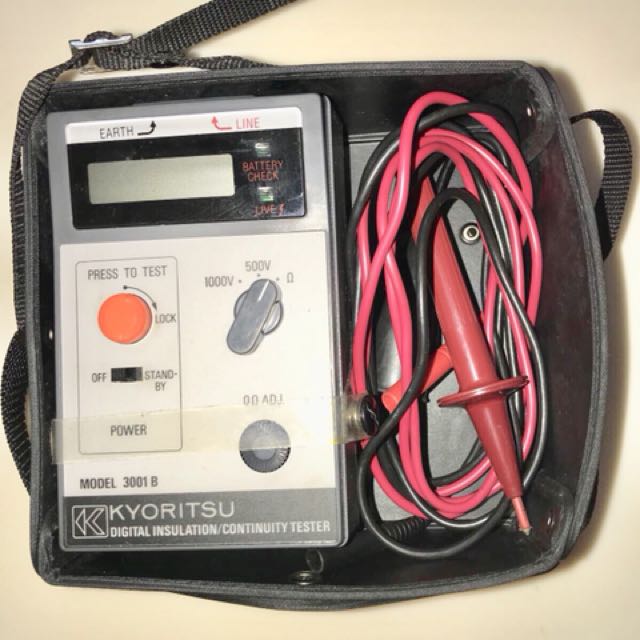

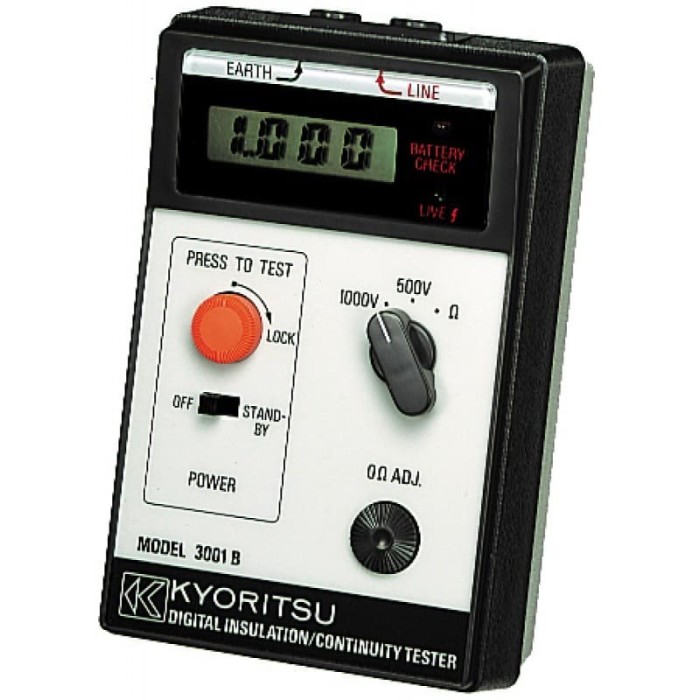

SPESIFIKASI Kyoritsu 3001B
| voltage | 500V/1000V |
|---|---|
| Measuring ranges<br>(Mid-scale value) | 200MΩ (2/20/200MΩ) autoranging |
| Rated current | 1 – 1.1mA DC approx |
| Output voltage on open circuit | Rated test voltage +12% |
| Output short circuit current | 1.5mA DC approx. |
| Accuracy | ±2%rdg±1dgt |
Continuity Test
| Measuring ranges<br>(Mid-scale value) | 200Ω (20/200Ω) autoranging |
|---|---|
| Output voltage on open circuit | 600mV DC approx. |
| Output short circuit current | 6mA approx. |
| Accuracy | ±2%rdg±0.1Ω ±1dgt |
General
| Power source | R6 (AA) (1.5V) × 8 |
|---|---|
| Dimensions | 144(L) × 93(W) × 61(D)mm |
| Weight | 460g approx. |
| Included Accessories | 7025 (Test leads) Pouch for test leads 9050 (Carrying Case) R6 (AA) × 8 Instruction Manual |
