UT516B adalah alat uji resistansi isolasi tegangan tinggi digital dengan 6 rentang: 500V, 1000V, 2500V, 5000V, 10000V, dan 12000V. Tersedia pengaturan tegangan yang halus dengan langkah 10% pada setiap rentang (kecuali 12000V). Data uji dapat disimpan dalam memori alat uji dan ditransfer ke PC melalui kabel USB khusus, atau ditransfer ke PC secara real time. Alat uji, dengan kinerja tinggi dan pengoperasian yang mudah, digunakan secara luas dalam pengukuran dan pemeliharaan peralatan listrik dan sirkuit catu daya.
FITUR UNI-T UT516B
- Tegangan AC/DC
- Transfer data USB
- Indikasi baterai lemah
- Penyimpanan data
- Lampu latar LCD
- Indeks Polarisasi
- Alarm jarak jauh
- Tampilan maks. 9999
- Pengukuran komparatif
- Pemilihan waktu pengukuran
SPESIFIKASI UNI-T UT516B
| Specifications | Range | UT516B | |
| Insulation Resistance Measurement | 500V | 0.50MΩ~4.99G | ±(5%+5) |
| 5.00G-49.9GΩ | ±(10%+10) | ||
| 50.0GΩ-500GΩ | for reference only | ||
| 1000V | 1.00MΩ-9.99GΩ | ±(5%+5) | |
| 10.0G-99.9GΩ | ±(15%+10) | ||
| 100GΩ-1000GΩ | for reference only | ||
| 2500V | 2.50MΩ-24.9GΩ | ±(5%+5) | |
| 25.0G-249GΩ | ±(15%+10) | ||
| 250GΩ-2.5TΩ | for reference only | ||
| 5000V | 5.00MΩ-49.9GΩ | ±(5%+5) | |
| 50G-499GΩ | ±(15%+20) | ||
| 500GΩ-5.0TΩ | for reference only | ||
| 10000V | 10.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| 12000V | 12.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| Output voltage | 500V | 0~+10% | |
| 1000V | 0~+10% | ||
| 2500V | 0~+10% | ||
| 5000V | 0~+10% | ||
| 10000V | -5~+10% | ||
| 12000V | -5~+10% | ||
| Load current | 500V (R=500KΩ) 1mA | 0%—+20% | |
| 1000V (R=1MΩ) 1mA | 0%—+20% | ||
| 2500V (R=2.5MΩ) 1mA | 0%—+20% | ||
| 5000V (R=5MΩ) 1mA | 0%—+20% | ||
| 10000V (R=10MΩ) 0.15~1.2mA | 0%—+20% | ||
| 12000V (R=12MΩ) 0.15~1.2mA | 0%—+20% | ||
| DC voltage measurement | 30V~1000V | ±(3%+5) | |
| AC voltage measurement | 30V~750V (50~60Hz) | ±(3%+5) | |
| Features | |||
| PC software for data analysis | √ | ||
| Backlight Function | √ | ||
| Date storage | 999 sets of date | √ | |
| Dielectric Absorption Ratio (DAR) | 0.00~999 | √ | |
| Polarization Index (PI) | 0.00~999 | √ | |
| General Characteristics | |||
| Power | 1.5V alkaline batteries (LR14) X 10, power adapter | ||
| Product color | Red and grey | ||
| Product net weight | 6.6kg | ||
| Product size | 410*342*204mm | ||

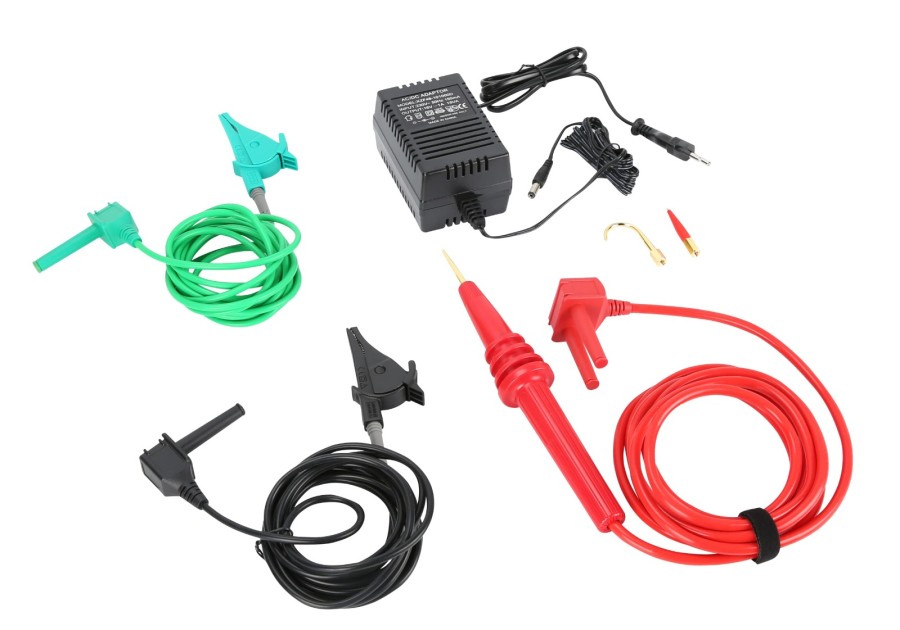

| Standard accessories | User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, | ||
| Standard individual packing | Gift box, tool box | ||
| Standard quantity per carton | 1pc | ||
| Standard carton measurement | 510*320*420mm | ||
| Standard carton gross weight | 10.2kg | ||
