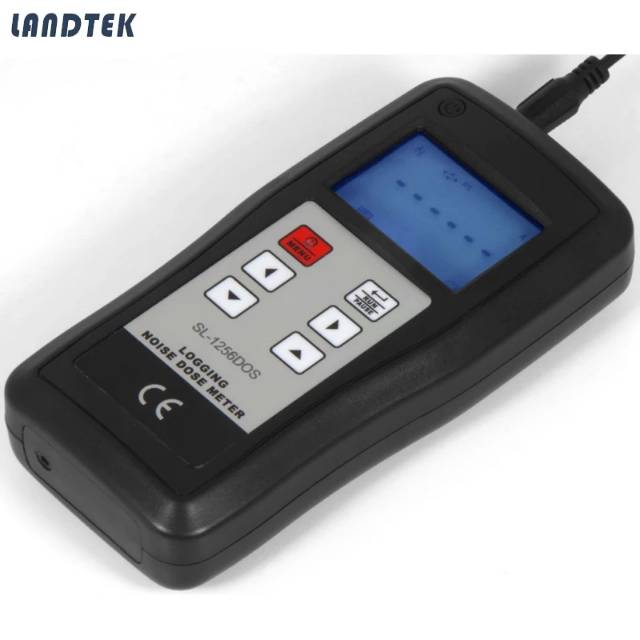

Landtek SL-1256DOS Noise Dose Meter Logging

Logging Personal Noise Dose Meter SL-1256DOS Sound Level Tester DOSE adalah parameter yang digunakan untuk mengukur paparan kebisingan yang diukur dalam suatu periode, selama pergantian % paparan kebisingan relatif terhadap 90dBA selama 8 jam. yaitu 100% DOSE = 90dBA selama 8 jam.

Rp 9.550.000

SKU:SKU77966752

Pengukur dosis kebisingan pribadi adalah alat uji untuk mengevaluasi kondisi kebisingan lingkungan kerja dengan mengukur akumulasi paparan kebisingan. Dengan data pengujian ini, perusahaan dapat memastikan peraturan terkait kebisingan dipatuhi atau memutuskan apakah akan menerapkan tindakan pengurangan kebisingan tertentu atau tidak untuk menghindari trauma akustik dan gangguan pendengaran akibat kebisingan yang terjadi pada personel yang bekerja.

Logging Personal Noise Dose Meter SL-1256DOS Sound Level Tester DOSE adalah parameter yang digunakan untuk mengukur paparan kebisingan yang diukur dalam suatu periode, selama pergantian % paparan kebisingan relatif terhadap 90dBA selama 8 jam. yaitu 100% DOSE = 90dBA selama 8 jam.

FITUR Landtek SL-1256DOS

  • Pengoperasian sederhana, termasuk pembacaan langsung hasil.
  • Delapan pengaturan pengukuran dosis standar bawaan: OSHA80, OSHA90, MSHA-80, MSHA-90, DOD, ACGIH, ISO85 dan ISO90.
  • Sembilan pengaturan pengukuran yang ditentukan pengguna.
  • Pengaturan meteran tingkat suara (SLM) tunggal.
  • Pengaturan meteran tingkat suara (SLM) tunggal.
  • Penyimpanan hasil 50 dosis (DATA).
  • Download setup dari PC ke meteran.
  • Kunci tombol melindungi meteran terhadap pengoperasian yang tidak disengaja.
  • Timer mendukung pra-pemilihan waktu dan durasi pengukuran.
  • Gunakan output data USB untuk terhubung dengan PC.

SPESIFIKASI Landtek SL-1256DOS

Standard Applied
IEC61252, ANSI S1.25 – 1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2
Microphone
1/2-inch electret condenser microphone with 31-inch integral cable
Display
Liquid Crystal Display
Measurement Ranges (Linearity and Indicator ranges at 4KHz)
60 – 130 : 60 – 130dB (A and C)
70 – 140 : 70 – 140dB (A and C)
Peak   Ranges   (C–weighted   or   Linear   Peak   over the   top   40dB   of   each   measurement   range)
60 – 130 : 93 – 133dB Peak
70 – 140 : 103 – 143dB Peak
Frequency Weightings
RMS Detector: A or C
Peak Detector: C or Z (Linear)
Time Weightings
Fast and Slow (RMS detector)
Exchange Rate
3, 4, 5 or 6dB
Stabilization Time
10 seconds from power on
Threshold and Criterion Levels (From the setup, predefined in the built – in setup according to applicable standards)
User–defined setups in the following ranges :
Threshold Level : 70 – 90dB in 1dB steps
Criterion Level : 80, 84, 85 or 90dB
Criterion Level : 80, 84, 85 or 90dB
At 0.1dB above the top of the selected measurement range
At 0.1dB above the top of the selected measurement range
Under–Range Indications
High Level Detector
115dB
Keypad Lock
Lock and unlock by pressing key combinations: Up and right arrows to lock; left and down arrows to unlock
Clock
Real–time clock with calendar
Memory
Results from 50 measurements can be stored for later viewing and download
Measurement Control
Measurement Duration : May be set to 5, 10, 15, or 30 minutes or 1, 2, 4, 8, 10, 12, or 24 hours
Timers
Up to 16 timers(automatic start and stop)can be set(maximum up to one month ahead of measurement time)
Timer Controlled Started / Stop
Set up from the PC software or meter keypad
Logging
All measurement parameters values can be logged
Logging Period (LP)
1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min
Logging Capacity
120000 values can be stored at any one time
Setup
Eight built–in (predefined) default setups are included. Nine additional user–defined setups can be stored
Output
USB interface
Power Supply
4×1.5V AAA Size (UM-4)Battery
Battery Indicator
Symbol indication battery voltage level in 4 steps. Indicator flashes when voltage is insufficient for operation
Operating Temperature & Humidity
0 – 50ºC (32 to 122ºF) ,10 – 90%RH
Storage Temperature & Humidity
-10 – 60ºC(14 to 140ºF) ,10 – 75%RH
Size
140x72x34mm
Weight
Approx. 350g (including batteries)

Accessories

Standard Accessories
Main Unit
External Probe
Screwdriver
Carrying Case (B04)
Operation Manual
Optional Accessories
USB Data with Software
Bluetooth Data Adapter with Software

Setup

Setup
OSHA-80
OSHA-90
MSHA-80
MSHA-90
DOD
ACGIH
ISO-85
ISO-90
User1-9
SLM
Measurement Range (dB)
70–140
70–140
70–140
70–140
70–140
70–140
70–140
70–140
70–140
70–140
Time Weighting
Slow
Slow
Slow
Slow
Slow
Slow
Fast
Fast
Fast
Slow
Frequency Weighting
A
A
A
A
A
A
A
A
A
A
Peak Frequency  Weighting
Lin
Lin
Lin
Lin
Lin
Lin
C
C
C
Lin
Exchange Rate
5
5
5
5
4
3
3
3
3
3
Threshold (dB)
80
90
80
90
80
80
70
70
80
N/A
Criterion Level (dB)
90
90
90
90
85
85
85
90
90
N/A
Allow User to Change Setup
No
No
No
No
No
No
No
No
Yes
Yes

Measurements Parameters

OSHA-80
OSHA-90
MSHA-80
MSHA-90
DOD
ACGIH
ISO–85
ISO–90
User1-9
SLM
DOSE%
DOSE%
DOSE%
DOSE%
DOSE%
DOSE%
DOSE%
DOSE%
DOSE%
SPL
PDOSE%
PDOSE%
PDOSE%
PDOSE%
PDOSE%
PDOSE%
PDOSE%
PDOSE%
PDOSE%
MAX
TWA
TWA
TWA
TWA
TWA
LEPd
LEPd
LEPd
TWA
LEQ
PTWA
PTWA
PTWA
PTWA
PTWA
LEQ
LEQ
LEQ
PTWA
LEQ
LAVG
LAVG
LAVG
LAVG
LAVG
SEL
SEL
SEL
LAVG
PKZ
LEQ
LEQ
LEQ
LEQ
LEQ
SE(Pa2h)
SE(Pa2h)
SE(Pa2h)
LEPd
SEL
SEL
SEL
SEL
SEL
MAX
MAX
MAX
LEQ
MAX
MAX
MAX
MAX
MAX
PKZ
PKZ
PKZ
SEL
PKZ
PKZ
PKZ
PKZ
PKZ
L10
L10
L10
SE(Pa2h)
L10
L10
L10
L10
L10
L50
L50
L50
MAX
L50
L50
L50
L50
L50
L90
L90
L90
PKZ
L90
L90
L90
L90
L90
L95
L95
L95
L10
L95
L95
L95
L95
L95
L99
L99
L99
L50
L99
L99
L99
L99
L99
SPL
SPL
SPL
L90
SPL
SPL
SPL
SPL
SPL
L95
99
SPL
