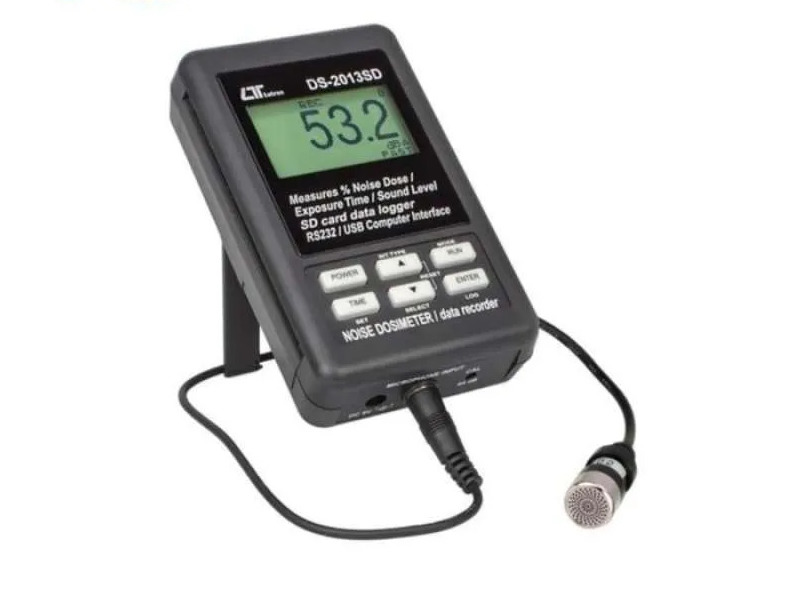

Alat ini dirancang untuk memudahkan penilaian tingkat kebisingan yang tidak stabil dan terus berubah. Meteran jenis ini akan merekam tingkat suara. Serta durasi pengukuran berbagai kenyaringan serta perhitungan volume suara kumulatif dan rata-rata tingkat kenyaringan.
FITUR Lutron DS-2013SD
- Paparan suara pribadi memenuhi IEC 61252
- Pembobotan Frekuensi dan Waktu dirancang untuk memenuhi IEC 61672 kelas 2
- Jaringan pembobotan A & C mematuhi standar
- LCD adalah dot-matrix dengan lampu latar dan mudah dibaca
- Kombinasi Pengukur Dosis, Pencatat Data, dan Pengukur Tingkat Suara
- Kepala mikrofon standar 0,5″
- Mode karakteristik dinamis pembobotan waktu (Cepat & Lambat).
- Bangun VR kalibrasi eksternal
- Konfigurasi pengukuran yang ditentukan pengguna. Tingkat Kriteria yang Dapat Dipilih
- Pengaturan Nilai Tukar, Ambang Batas, Pembobotan Frekuensi, dan Waktu Respons
- Mikrofon kondensor untuk akurasi tinggi & stabilitas jangka panjang
- Fungsi memori untuk menyimpan Max. & Min. nilai
- Tahan fungsi
- Pencatat Data waktu nyata. Merekam perangkat perangkat memori internal (EEPROM) dan
- perangkat memori eksternal (kartu memori SD), Pencatat Data waktu nyata, Jam dan Kalender
- Bawaan, perekam data waktu nyata, waktu pengambilan sampel diatur dari 1 detik hingga 3600 detik
- Datalogger manual tersedia (atur waktu pengambilan sampel ke 0 detik)
- Inovasi dan pengoperasian yang mudah, komputer tidak perlu menyiapkan perangkat lunak
- tambahan, setelah menjalankan datalogger, cukup ambil kartu SD dari meteran dan colokkan
- kartu SD ke komputer, maka dapat mengunduh semua nilai terukur dengan informasi waktu (
- tahun/bulan/tanggal/jam/menit/detik ) langsung ke Excel, lalu pengguna dapat membuat sendiri
- data atau analisis grafik lebih lanjut
- Kapasitas kartu SD: 1 GB hingga 16 GB
- Dapat mematikan daya secara otomatis atau mematikan secara manual
- % Dosis Kebisingan, pengukuran SPL
- Sirkuit mikrokomputer, akurasi tinggi
- Ditenagai oleh baterai UM4/AAA (1,5 V) x 6 atau adaptor DC 9V
- KOMPUTER PC RS232/USB1
- Casing housing tugas berat & ringkas
SPESIFIKASI Lutron DS-2013SD
| Circuit | Custom one-chip of microprocessor LSI circuit | |
| Display | * LCD size : 50 mm x 30 mm * LCD with green backlight ( ON/OFF ) | |
| Measurement Type | * SPL : Sound pressure level * Dose：test noise exposure | |
| Measurement Range | * SPL：Auto 30 – 130 dB * Dose：70～130dB | |
| Resolution | 0.1 dB | |
| Function | * dB ( A & C frequency weighting ) * Time weighting ( Fast, Slow ) * Data hold * Record ( Max., Min. ) | |
| Accuracy | * Characteristics of ” A ” frequency weighting network meet IEC 61672 class 2. * Under 94 dB input signal, the accuracy are : 31.5 Hz ± 3.5 dB 63 Hz ± 2.5 dB 125 Hz ± 2.0 dB 250 Hz ± 1.9 dB 500 Hz ± 1.9 dB 1 K Hz ± 1.4 dB 2 K Hz ± 2.6 dB 4 K Hz ± 3.6 dB 8 K Hz ± 5.6 dB | |
| Frequency Weighting Network | Characteristics of A & C. * A weighting : The characteristic is simulated as “Human Ear Listing” response. Typical, if making the environmental sound level measurement, always select to A weighting. * C weighting : The characteristic is near the “FLAT response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure evel of the tested equipment. | |
| Time weighting (FAST & SLOW) | * Fast – t = 125 ms @”Fast” range is simulated the human ear response time weighting. * Slow – t = 1 s @”Slow” range is easy to get the average values of vibration sound level. | |
| Data hold | To freeze the measurement value | |
| Function selector SPL, DOSE | * Auto range：30～130dB * Threshold Level (Thr)：70～90dB in 1dB steps * Criterion Level(Crit)：80、84、85、90dB * Exchange Rate：3, 4, 5 or 6 dB | |
| Frequency | 31.5 to 8,000 Hz | |

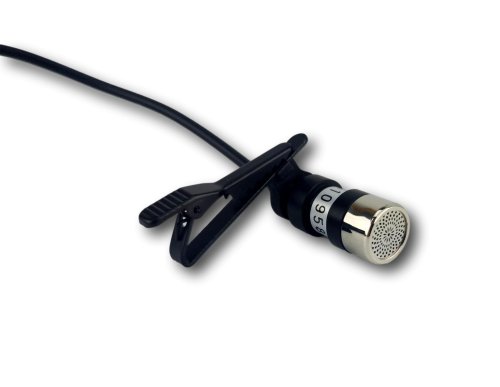

| Microphone type | Electric condenser microphone | |
| Microphone size | Out size, 12.7 mm DIA. ( 1/2 inch) | |

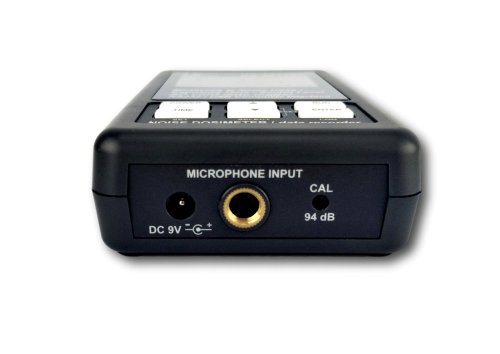

| Calibration VR | Build in external calibration VR, easy to calibrate on 94 dB level by screw driver | |
| Calibrator | B & K (Bruel & kjaer), MULTIFUNCTION ACOUSTIC CALIBRATOR Type 4226 | |
| Datalogger Sampling Time Setting range | * Auto: 1 second to 3600 seconds * Manual: Push the data logger button once will save data one time | |
| Memory device | * internal memory device : EEPROM can be record 16,000 items * external memory device ( AC Adapter only ) : SD memory card. 1 GB to 16 GB | |
| Data error no | ≦0.1% no. of total saved data typically | |
| Advanced setting | * Set clock time ( Year / Month / Date,Hour / Minute / Second ) * Set sampling time * Auto power OFF management * Set beep Sound ON/OFF * Decimal point of SD card setting * SD memory card Format * Frequency weighting to A or C setting | |
| Over Indication | Show ” – – – – “ | |
| Data Hold | Freeze the display reading | |
| Memory Recall | Maximum & Minimum value | |
| Sampling Time of Display | Approx. 1 second | |
| Data Output | RS 232/USB PC computer interface | |
| Power off | Auto shut off saves battery life or manual off by push button | |
| Operating Temperature | 0 to 50℃ | |
| Operating Humidity | Less than 85% R.H | |
| Power Supply | * AAlkaline or heavy duty DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent * DC 9V adapter input | |
| Power Current | * Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 16 mA * When ” SD ” save the data but and LCD Backlight is OFF) : Approx. DC 35 mA * AIf LCD backlight on, the power consumption will increase approx. DC 8 mA | |
| Weight | 250 g/ 0.55 LB. (without battery) | |
| Dimension | 132 x 80 x 32 mm. ( 5.2 x 3.1 x 1.3 inch ) | |
