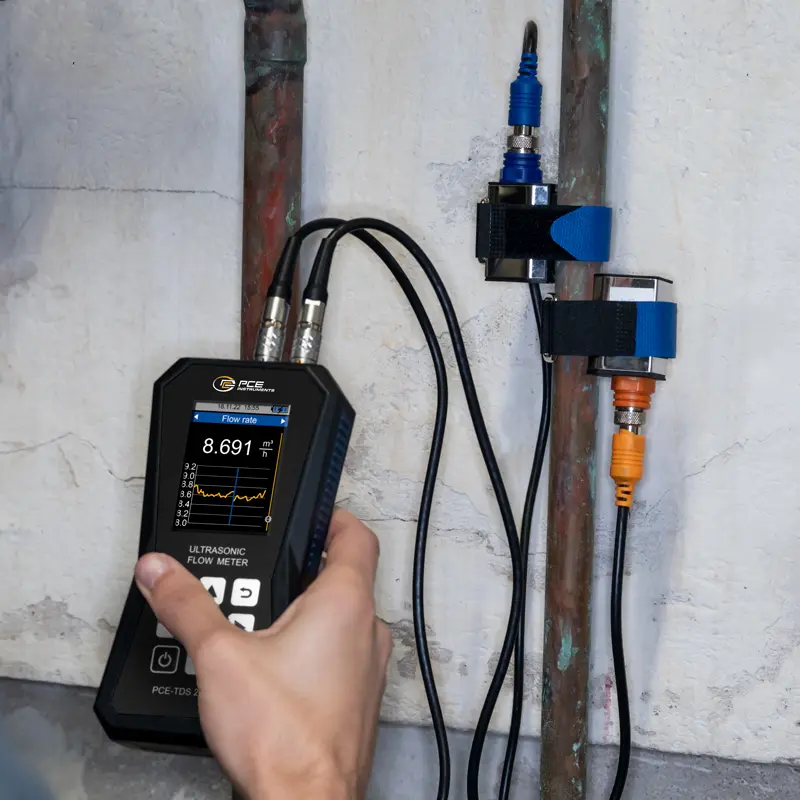

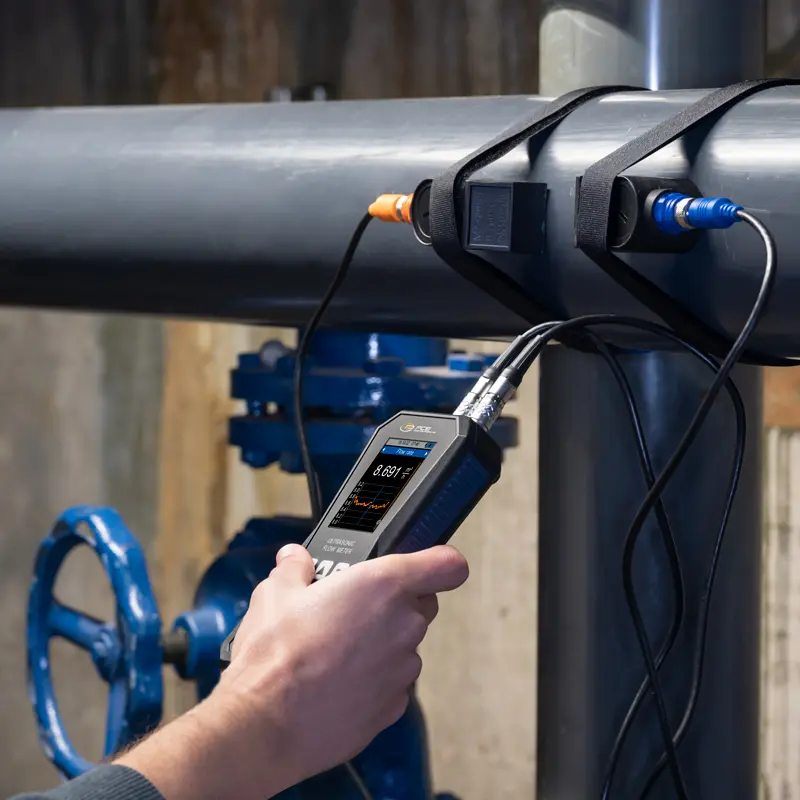

PCE TDS+ 200 SML adalah alat ukur aliran cairan (flow meter) portabel berbasis teknologi ultrasonik clamp-on, yang digunakan untuk mengukur kecepatan aliran, debit (flow rate), dan volume cairan di dalam pipa tanpa harus memotong atau membongkar pipa.

Alat ini bekerja dengan prinsip transit-time ultrasonic, yaitu mengukur perbedaan waktu gelombang suara saat melewati fluida dalam pipa. Dengan metode ini, pengukuran dapat dilakukan secara non-invasif, sehingga sangat praktis untuk instalasi sementara maupun inspeksi sistem perpipaan.

FITUR PCE TDS + 200 SML

Teknologi ultrasonic clamp-on (non-invasif) → ukur aliran tanpa potong pipa
Multi parameter flow: kecepatan aliran, debit (flow rate), dan volume
Rentang pengukuran luas hingga ±32 m/s dengan akurasi tinggi
Data logger internal 32 GB (hingga ±10 juta data) untuk monitoring jangka panjang
Layar LCD warna 2.8 inci untuk tampilan data jelas

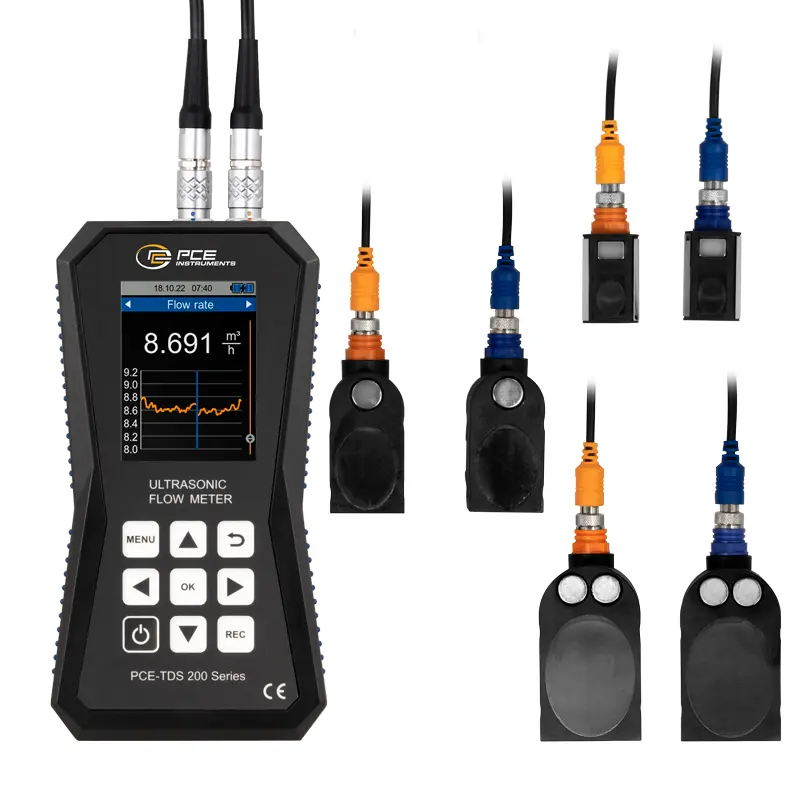

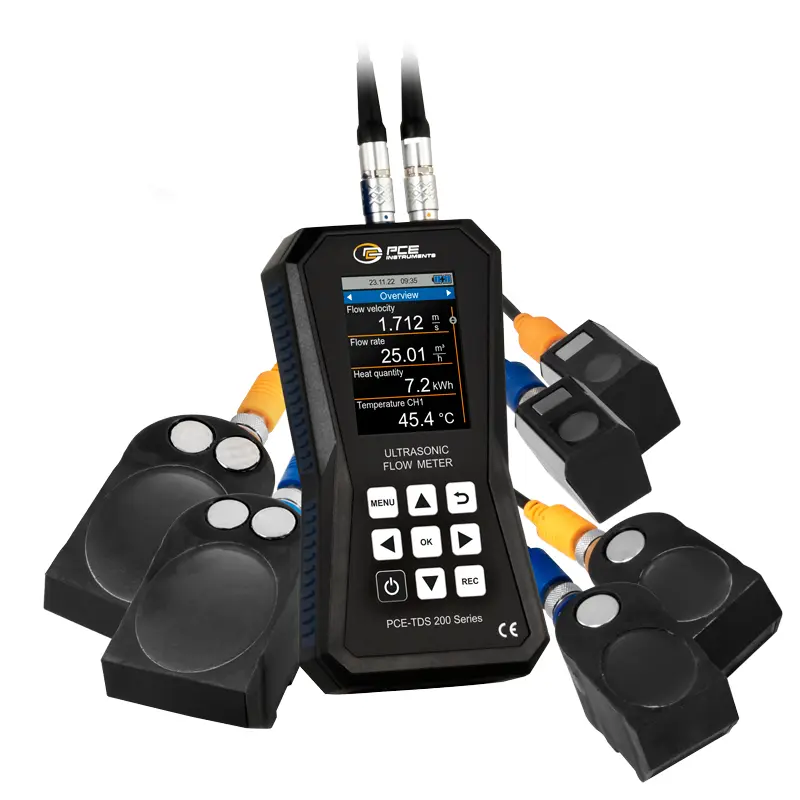

Sensor S/M/L → mendukung berbagai ukuran pipa (kecil hingga besar)
Software analisis & export data (CSV/PDF) untuk laporan dan evaluasi
Fitur heat meter (opsional) untuk menghitung energi panas pada sistem pipa
Alarm limit & pengaturan logging fleksibel sesuai kebutuhan pengukuran
USB / konektivitas data untuk transfer dan monitoring real-time

SPESIFIKASI PCE TDS + 200 SML


Flow measurement
Measuring range	±32 m/s
Accuracy	0,001 m/s
	DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s
	DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility	±0.5 % of measured value

PCE-TDS 200 S SENSOR	Sensor pair
Pipe diameter	DN 15 … 100 / 20 … 108 mm
Temperature resistance	-30 … 160 °C
Dimension	45 x 30 x 30 mm

PCE-TDS 200 M SENSOR
Pipe diameter	DN 50 … 700 / 57 … 720 mm
Temperature resistance	-30 … 160 °C

PCE-TDS 200 L SENSOR
Pipe diameter	DN 300 … 6000 mm
Dimension	91 x 52 x 44 mm

Measuring method	Z, V, N, W
Medium	– water
	– sea water
	– oil
	– crude oil
	– methanol
	– ethanol
	– diesel
	– petrol
	– petroleum
	– user defined
	(manual input of the sound velocity from the medium)

All liquids with an impurity	<5 %
Pipe material	– copper CU
	– steel FE
	– stainless steel VA
	– aluminium AL
	– brass ME
	– cast iron CI
	– iron FE
	– nickel NI
	– titanium TI
	– zink ZI
	– acrylic AC
	– polyethylene PE
	– polypropylene PP
	– polyvinyl chloride PVC
	– nylon NY
	– user defined
	(manual input of the transversal sound velocity
	of the pipe material)

Inner pipe lining	– no lining
	– user defined
	– epoxy resin
	– rubber
	– mortar
	– polystyrene PS
	– polyethylene PE
	– polytetrafluoroethylene PTFE
	– polyurethane PU
	– polypropylene PP
	– user defined
	(manual input of the longitudinal sound velocity
	of the inner lining of the pipe)

Measurement parameters	flow velocity, volume flow and volume
Units (dimensions)	mm, in
Units (flow velocity)	m/s, ft/s
Units (volume flow)	m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification	seconds, minutes, hours, days
Units (volume)	m³, l, gal, igl, mgl, cf, bal, ib, ob

Further specifications
2.8″ LCD	2,8“ LCD
Menu	metrisch / imperial
Menu languages	German, English, French, Spanish,
	Italian, Dutch, Portuguese, Danish, Turkish, Polish, German
	Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions	Temperature: -20 … +65 °C
	Humidity: 10 … 95 % r. h., non-condensing
Data logger	32 GB memory capacity / 10 million measuring points
Unterface	USB (for online measurement, readout of the internal memory
	memory and for recharging the battery)
Protection class	IP52
Power supply Internal	Internal: LiPo battery (3.7 V, 2500 mAh)
	External: USB 5 VDC, 500 mA
Operating time	approx. 10 h
Dimensions	165 x 85 x 32 mm
Weight	255 g
