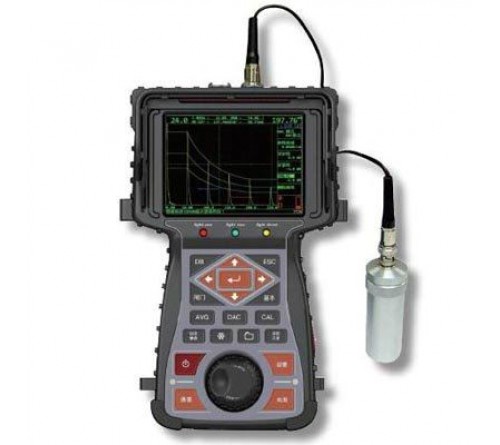

Detektor Cacat Ultrasonik Portabel TUD500 memiliki linearitas horizontal dan linearitas vertikal yang lebih baik. Layar VGA yang besar memudahkan membaca data di lingkungan apa pun. Kemampuan pemeriksaan cacat yang kuat memungkinkannya digunakan untuk berbagai aplikasi
SPESIFIKASI TIME TUD-500
- Scanning range: 2.5 mm ~9999 mm
- Scanning: 0.1mm (2.5mm ~100mm)
- resolution: 1mm (100 mm ~5000mm)
- Gain range: 0dB ~110 dB
- D-delay: -20µs~+3400µs
- P-delay: 0.000~750.000
- Sound speed: 600 m/s~16000m/s
- Bandwidth: 0.1MHz~15MHz
- Vertical linearity accuracy: ≤2%
- Horizontal linearity accuracy: ≤0.1%
- Dynamic range: 100dB
- Rectification: Positive half wave, negative wave, full wave, and RF
- Sensitivity leavings: ≥62dB
- Test mode:
- Pulse-echo, dual and through transmission
- Pulser: Square pulse
- Damping: 50ohms, 100ohms ,200ohms,500 ohms
- Reject: Linear, 0-80% of full screen
- Unit: Metric/inch
- Interface: RS232 / USB
- Printer: EPSON ink-jet printers
- AC requirements
- Input: 100-240~50/60Hz
- Output: 9V DC/3 A~4A
- Temperature: -10℃~40℃
- Humidity : 20%~90%RH
- Power: 2×3.7V 5000mAh
- Charging time: 8h
- Dimension (mm): 300×180×57
- Weight (g) : 2000
