Skycom dengan bangga mempersembahkan seri T-308 dari Optical Fiber Fusion Splicer, yang menggabungkan fitur kinerja utama yang diharapkan pada fusion splicer generasi berikutnya yang canggih. Penyambungan dan Pemanasan Berkecepatan Tinggi, 8 detik Penyambungan Cepat, Pemanasan Cepat 25 detik Akurasi yang Lebih Besar Pencitraan Digital dan Metrologi Pemrosesan Penglihatan Memastikan Akurasi yang Luar Biasa Teknologi Baru yang Dikembangkan untuk Ukuran Lebih Kecil dan Klem Serbaguna yang Nyaman Pemegang Universal 3-in-1 Panjang Pembelahan yang Berlaku hingga 5mm 5200mAh, Baterai Ultra-tinggi.

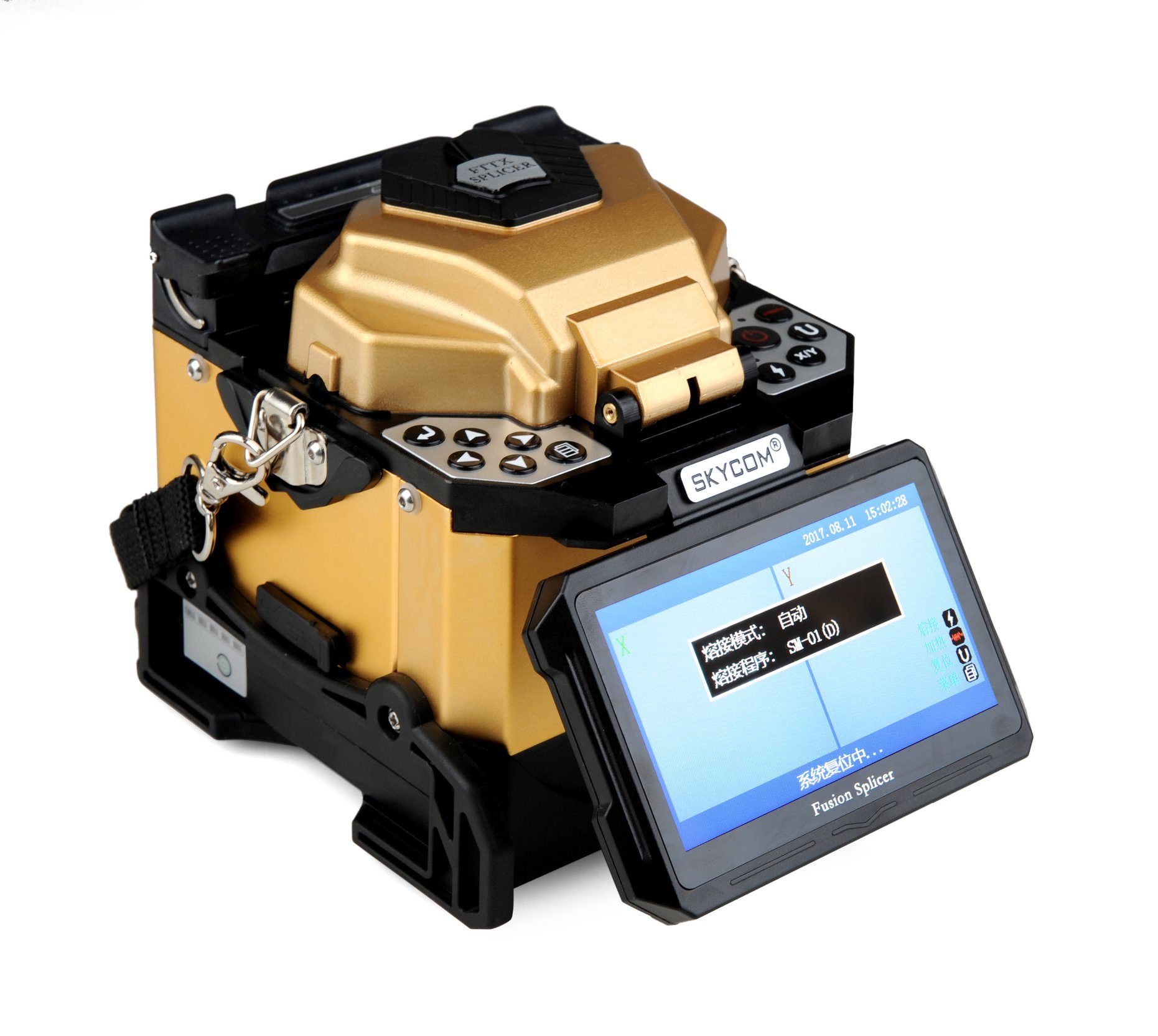

SPESIFIKASI Skycom T308
| Model | Skycom T-308 |
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire),
SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Quick splicing time | 8 seconds |
| Quick heating time | 25 seconds |
| Protection Sleeve Length | 40mm, 45mm, 60mm |
| Splicing Program | 50 groups |
| Operating Language | Chinese, English, French, Portuguese, Spanish, Italian, Indonesian |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC input | AC adaptor: 100~240V input voltage, 50/60Hz; |
| DC input | 12V, 5A output voltage(DC) |
| Battery | Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat |
| Monitor | Dual cameras, 90 bi-dirctional view ,4.3 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y Separately 520 times or Simultaneously 220 times |
| Estimated Splice Loss | Available |
| Cleaving Angle Detection | Available |
| Automatic Self-Check | Camera | Available |
| Forward Motor |
| Tension Test | 1.96~2.25N |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto & Stepping |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector) |
| Terminal | USB for Memorizing and Updating |
| Dimensions | 120(W)*120(D)*130(H)mm |
| Weight | 1.29kg(without battery ) |

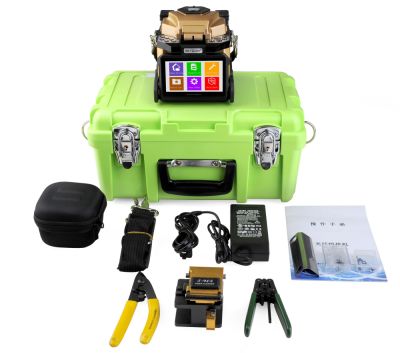

Standard Accessories
| No. | Item | Quantity |
| 1 | Machine T-308 | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor (Charger) | 1 |
| 5 | Battery | 1 |
| 6 | Spare Electrodes | 1 |
| 7 | Cooling Tray | 1 |
| 8 | Instruction CD | 1 |
| 9 | Quick Reference Guide | 1 |
| 10 | Rubber-insulated wire stripping pliers | 1 |
| 11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
| 12 | Carrying Case with Carrying Strap | 1 |
