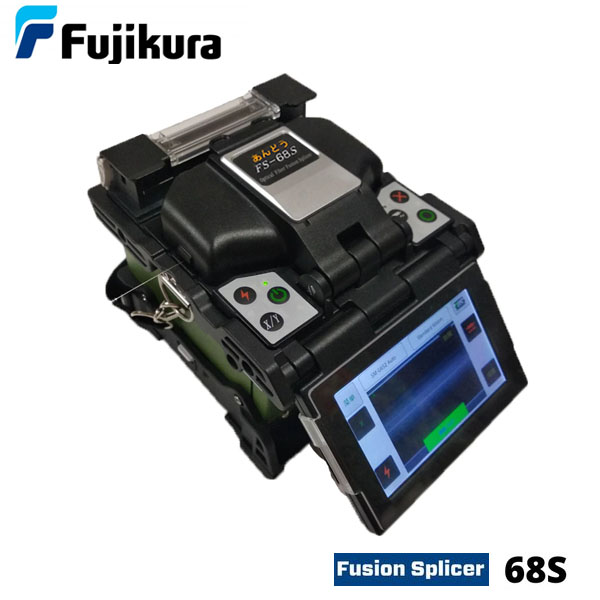

FS-68S Fusion Splicer, dengan rasio harga kinerja tinggi. Dengan penampilan cerdas, kualitas andal, FS-68S adalah desain khusus untuk pemasangan, pengoperasian, dan pemeliharaan serat optik yang secara khusus merancang instrumen konstruksi serat optik yang presisi, tahan lama, dan nyaman. Banyak digunakan dalam konstruksi, inspeksi, pemeliharaan kabel serat.
Specifications
| Model | FS-68S 6motors score alignment Fusion Splicer |
| Splicing Type | SM, MM, DS, NZDS,EDF、EI980,G657 |
| Splicing Loss | 0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤20s |
| Cleaved Length | 8～16mm |
| Fiber Image/ Magnification | 300/150 or 240/80 |
| View Display | 4.3 inch digital high quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
| Battery Capacity | 250 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 4000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC15V/6A |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew) |
| Weight | 2.05KG (including battery), 1.75KG (excluding battery) |
| Dimension (LxWxH) | 138W*160L*135H |
FS-68S 6motors score alignment Fusion Splicer
Standard Configuration
No | Name | Qty |
1 | Fusion Splicer (FS-68S) | 1 set |
2 | Fiber Cleaver | 1 pc |
3 | Fiber Stripper | 1 pc |
4 | AC Adaptor | 1 pc |
5 | Li Battery | 1 pc |
6 | Charger | 1 pc |
7 | Spare Electrodes | 1 pair |
8 | Cooling Tray | 1 pc |
9 | User Manual CD | 1 pc |
10 | Carrying Case | 1 pc |
