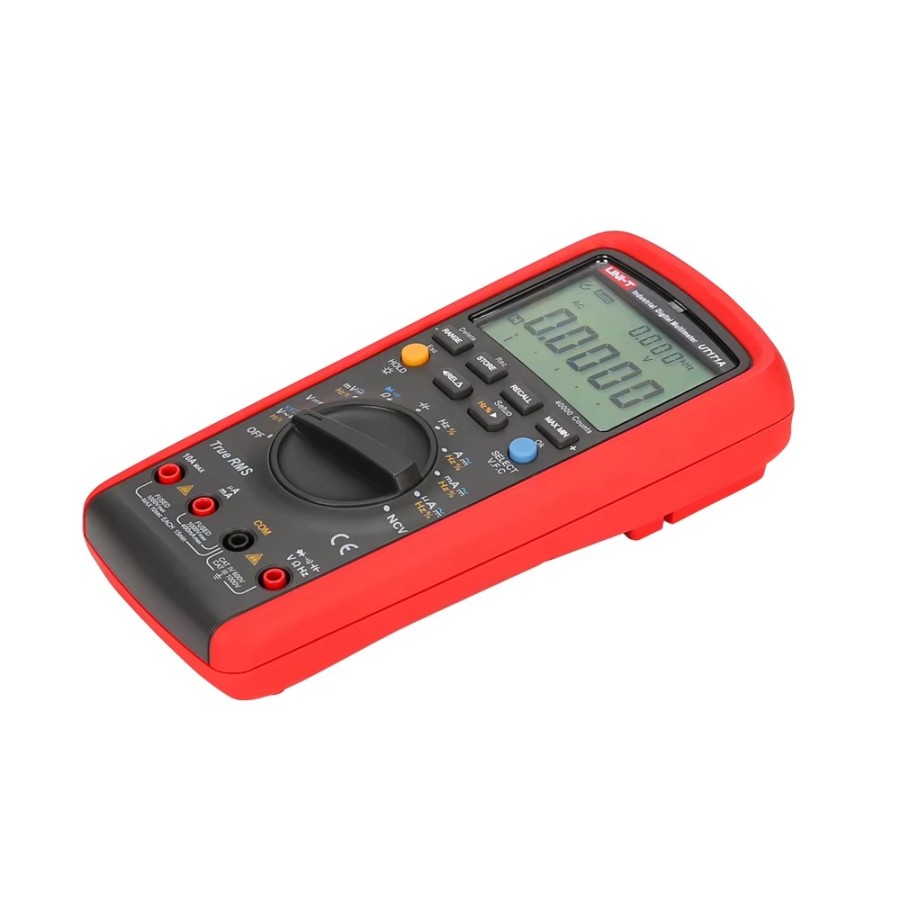

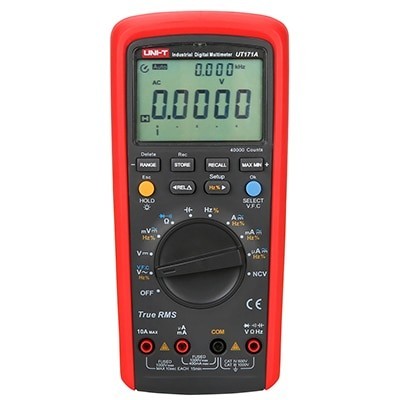

UNI-T UT171A Industrial True RMS Digital Multimeter adalah multimeter kelas industri yang digunakan oleh para profesional. Output gelombang persegi bawaannya berguna untuk memecahkan masalah sinyal kontrol industri. Fitur LoZ (ACV)-nya dapat digunakan untuk mengidentifikasi tegangan sisa (ghost) dalam kapasitor besar.
FITUR UNI-T UT171A
- 40000 hitungan
- Laju pengambilan sampel 4-5 kali/detik
- Penyaringan low-pass VFC
- Pengukuran NCV
- Mode MAX/MIN/AVG
- Bilah analog: pengamatan sinyal dinamis yang lebih intuitif dan lebih cepat
- Komunikasi USB/Bluetooth
- Penyimpanan data 9999
SPESIFIKASI UNI-T UT171A
| Specifications | Range | UT171A |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage (V) | 1000V | ±(0.4%+40) |
| DC current (A) | 10A | ±(0.15%＋2) |
| AC current (A) | 10A | ±(0.75%＋5) |
| Resistance (Ω) | 40MΩ | ±(0.05%+2) |
| 60MΩ | ||
| Admittance (nS) | 60nS | |
| Capacitance (F) | 40mF | ±(2.5%+40) |
| 60mF | ||
| Frequency (Hz) | 10Hz~10MHz | ±(0.01%+5) |
| Temperature (°C) | -40°C~1000°C | |
| Temperature (°F) | -40°F~1832°F | |
| Features | ||
| Display count | 40000 | |
| Auto/Manual range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| 4~20mA loop | 0~100% | |
| LoZ (ACV) | Around 3kΩ | |
| Diode | Around 3V | √ |
| Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| NCV/Data hold/MAX/MIN | √ | |
| Relative mode | √ | |
| Data storage | 1000 | |
| Display type | LCD | |
| Analog bar graph | 31 | |
| LCD backlight | √ | |
| Mis-plug alarm | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Input protection | √ | |
| Input impedance for DCV | √ | |
| Input impedance for DCV | Around 1GΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 6 | |
| Display | 70.6mm x 49.5mm | |
| Product color | Red and grey | |
| Product net weight | 384g | |
| Product size | 206mm x 95mm x 55mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe, USB interface cable, PC software CD | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 390mm x 310mm x 205mm (0.55CBM per standard carton) | |
| Standard carton gross weight | 5.6kg | |
| Optional accessory | Bluetooth adaptor (UT-D07) | |
