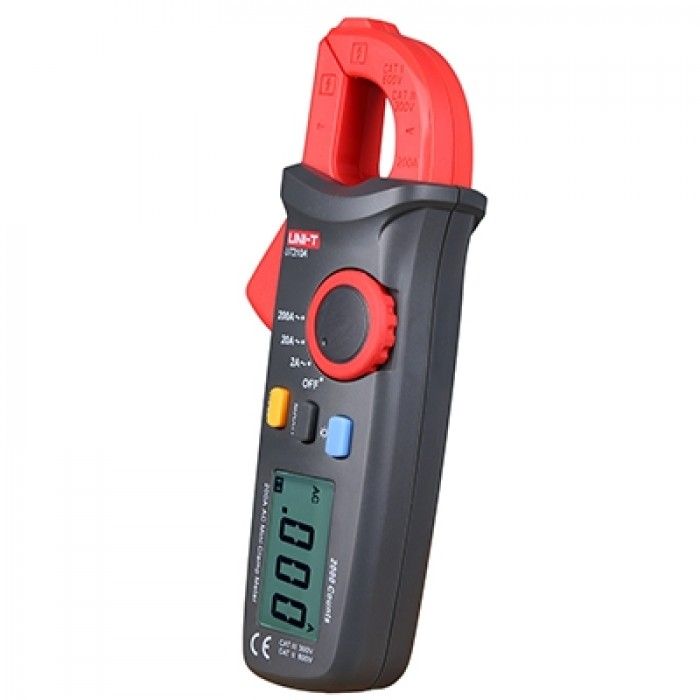

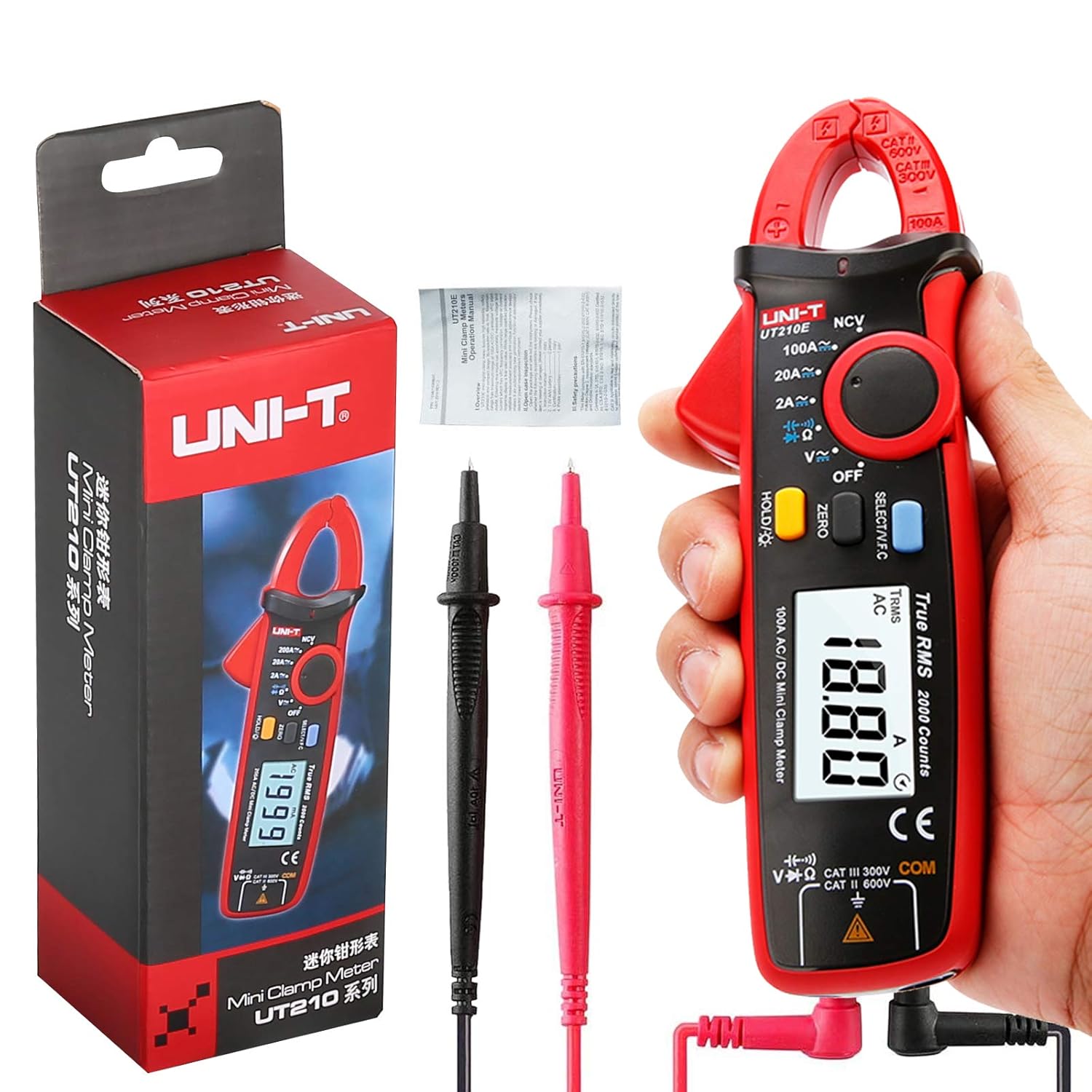

Mini clamp meter seri UT210 dirancang untuk bekerja dengan baik di lingkungan dengan ruang terbatas. Ini adalah alat penting untuk perawatan peralatan mekanik dan listrik, pemasangan peralatan rumah tangga, dan tugas teknisi listrik.
FITUR UNI-T UT210A
- Jumlah Layar: 2000
- Jangkauan Otomatis: √
- Kapasitas Rahang: 17mm
- Penyimpanan Data: √
- Lampu Latar LCD: √
- Matikan Daya Otomatis: Sekitar 15 Menit
- Indikasi Baterai Lemah: ≤2,5V
- Perlindungan Input: √
SPESIFIKASI UNI-T UT210A
| Specifications | Range | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||||
| DC current (A) | 200A | ±(2%+3) | ||||
| 100A | ±(2%+3) | |||||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||
| Temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||
| -40~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||||
| Features | ||||||
| Display count | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | √ | √ | |
| Auto range | √ | √ | √ | |||
| Jaw opening | 16mm | 16mm | 17mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | √ | ||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 39.3mm x 26.5mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT210A/B: 150g (batteries included); UT210C/D/E: 170g | |||||
| Product size | UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm | |||||
| Standard accessories | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||
| Standard individual packing | Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm | |||||
| Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||
