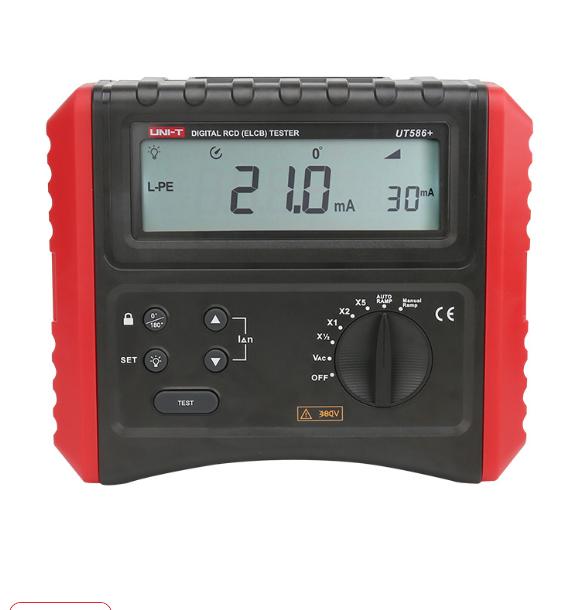

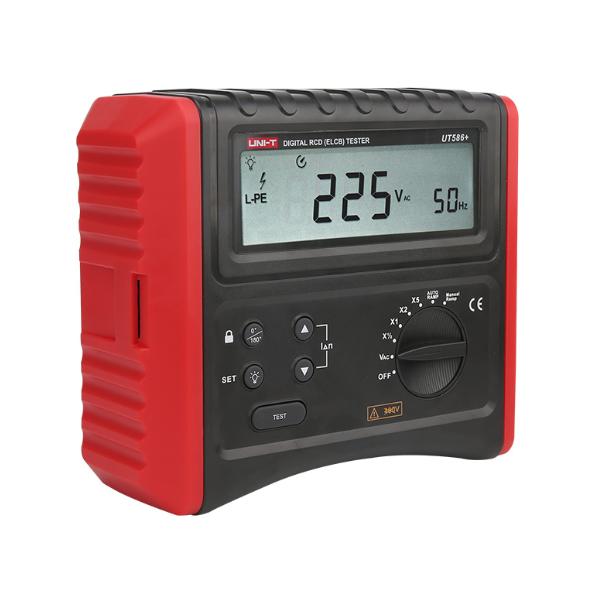

UNI-T UT586+ Digital RCD Tester adalah alat ukur listrik yang digunakan untuk menguji kinerja perangkat proteksi kebocoran arus (RCD/ELCB) pada instalasi listrik. Alat ini mampu mengukur arus trip (trigger current) dan waktu trip (trip time) untuk memastikan sistem proteksi bekerja dengan baik dan aman.
UT586+ dirancang untuk pengujian pada sistem listrik satu fasa maupun tiga fasa, sehingga banyak digunakan dalam instalasi listrik rumah, industri, maupun sektor energi. Alat ini bekerja dengan memberikan arus uji tertentu ke RCD dan menganalisis respons pemutusannya.
FITUR UNI-T UT586+
- Uji arus trip & waktu trip RCD → mengukur arus pemicu dan waktu pemutusan secara akurat
- Multi range & auto range → fleksibel untuk berbagai nilai arus uji
- Pilihan sudut fase (0° / 180°) → analisis respons RCD lebih lengkap
- AUTO RAMP test → menguji arus dan waktu trip secara bersamaan
- Pengukuran tegangan & frekuensi (30–480V) → fungsi tambahan untuk pengecekan instalasi
- Pemeriksaan wiring (koneksi instalasi) → mendeteksi kesalahan sambungan listrik
- Deteksi over-temperature → perlindungan alat saat suhu berlebih
- Layar dengan backlight → mudah dibaca di kondisi gelap
- Auto power off & indikator baterai lemah → hemat energi dan praktis
- Standar keamanan CAT III 600V → aman untuk penggunaan instalasi listrik
- Mendukung sistem 1 fasa & 3 fasa → aplikasi luas di berbagai instalasi
SPESIFIKASI UNI-T UT586+
| Specification | |||||
| Rate trigger current | Fault trigger time | Accuracy (current) | Accuracy (time) | ||
| RCD test function | X1/2 | 10/20/30/100/300/500mA/1000mA | 0~2000mS @ 0°/180° | -10%~0%” | ±0.6%rdg±4dgt |
| X1 | 10/20/30/100/300mA | 0~2000mS @ 0°/180° | 0%~+10% | ±0.6%rdg±4dgt | |
| 500mA/1000mA | 0~200mS @ 0°/180° | 0%~+10% | ±0.6%rdg±4dgt | ||
| X2 | 10/20/30/100/200/300/500mA | 0~200mS @ 0°/180° | 0%~+10% | ±0.6%rdg±4dgt | |
| X5 | 10/20/30/100/200mA | 0~200mS @ 0°/180° | 0%~+10% | ±0.6%rdg±4dgt | |
| AUTO | 10/20/30/100/300/500mA/1000mA | 300ms @ 15 0°/180° | -10%~+10% | ±0.6%rdg±4dgt | |
| Manual | 10/20/30/100/300/500mA/1000mA | 300ms @ 0°/180° | -10%~+10% | ±0.6%rdg±4dgt | |
| Working voltage | 50/60Hz | 100V~440V (Note: If > 450V, it will issue an alarm and stop the RCD test) | -15%~+10% | ||
| Voltage test | Voltage range | 30~480V (Resolution: 1V) | 45~65Hz | ±3%rdg±3dgt | |
| Voltage test | L-PE | yes, display the L-PE input voltage; range: 30V~480V; No input and low voltage: “0V”; if less than 30V: <30V; if more than 4800v: >480V | |||
| Frequency | yes, display the L-PE input frequency; when it is “volts”, press “VOLT/FREQ” key to switch “Voltage/Frequency” | ||||
| Wiring check | If there is no wiring, an abnormal power supply, or no electricity flowing, the LCD will display “L-PE” and flash. | ||||
| Phase angle selection | You can choose to initiate the test from the positive (0°) or the negative (180°) half-cycle. Press the “0°/180°” button to toggle phase. | ||||
| Lock test | With the power disconnected, press and hold the “0°/180°” button to activate the lock test function. Simply connect the test leads correctly to the test points, and the test will run automatically. | ||||
| AUTO RAMP test | You can test the trip action current and action time simultaneously. | ||||
| RCD test exceeds limit prompt | When the trip action time exceeds the maximum test duration and trips. | ||||
| Over-temperature detection | If the internal components of the device become too hot, the LCD will display an over-temperature symbol, and the device will automatically disable RCD testing. | ||||
| Backlight | Yes, can be turn on/off | ||||
| Low battery indication | yes | ||||
| Auto powwer off | After 5 minutes of no operation, it will automatically shut down. | ||||
| Working environment | 0℃~40℃ | ||||
| Storage environment | -20℃~60℃ | ||||
| Power | 8 * 1.5V AA | ||||
| Polution level | 2 | ||||
| Safety rating | IEC61010-031; IEC61557-1,6; CAT III 600V | ||||
| General Features | |||||
| Product color | Red + gray | ||||
| Product weight | 725g | ||||
| Product dimension | 161*117*68mm | ||||

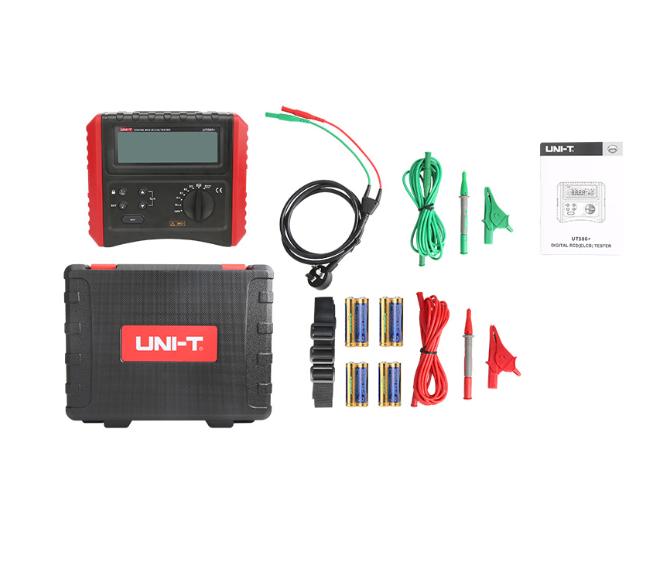

| Standard accessories | User manual 1pcs; Test lead 1 set(red/green); Alligator clips 2pcs(red/green); Test probe 2pcs(red/green); 1.5V AA * 8pcs; Test lead to EU plug 1pcs | ||||
